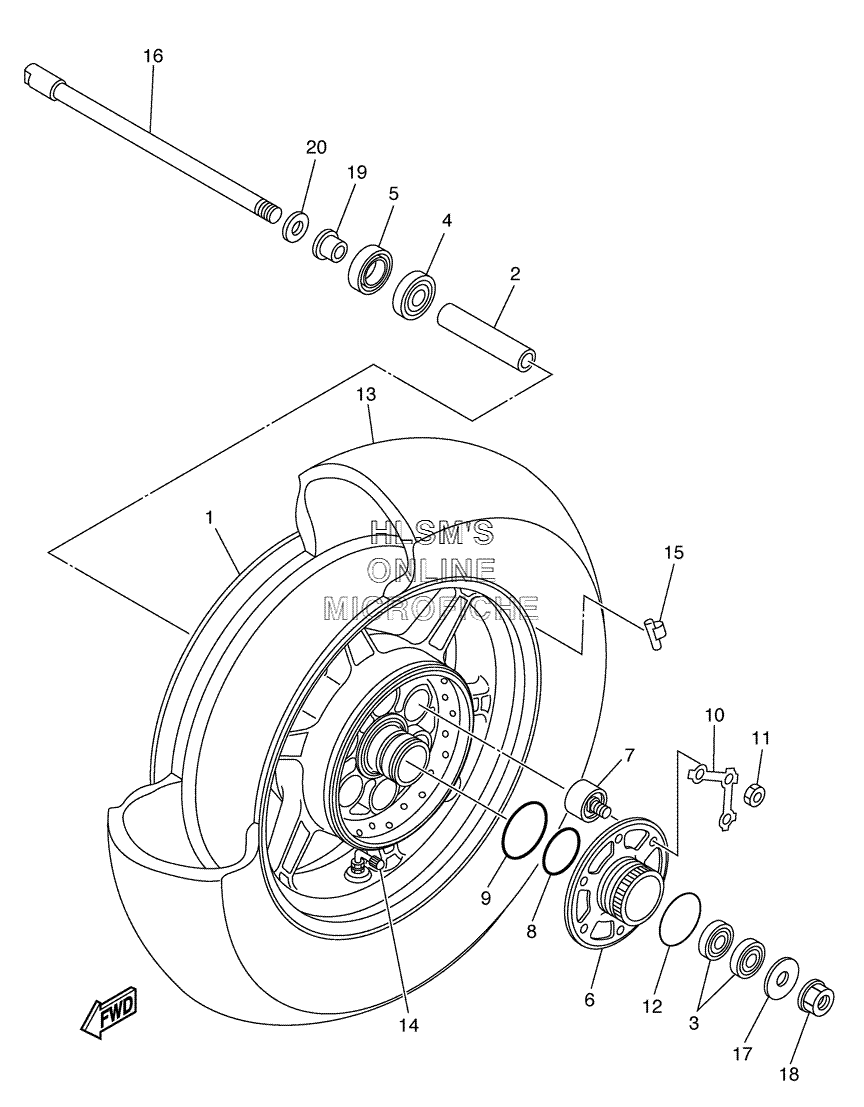

WHEEL - REAR для Yamaha V STAR 1100 CLASSIC - 2006 года выпуска
-
№АртикулНазвание
-
15KS-25338-00-MA CAST WHEEL, REAR (GRAY)CAST WHEEL, REAR (GRAY)
-
290387-173M5-00 COLLARCOLLAR
-
393306-20348-00 BEARINGBEARING
-
493306-30317-00 BEARINGBEARING
-
593102-25044-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
616G-25366-01-00 CLUTCH, HUBCLUTCH, HUB
-
75EL-25364-00-00 DAMPERDAMPER
-
893210-48530-00 O-RINGO-RING
-
993210-59531-00 O-RINGO-RING
-
1016G-25412-00-00 WASHERWASHER
-
1190170-10219-00 NUTNUT
-
1293210-57428-00 O-RINGO-RING
-
1394117-15011-00 TIRE (170/80-15 M/C 77S D404) (DUNLOP)TIRE (170/80-15 M/C 77S D404) (DUNLOP)
-
1394117-15012-00 TIRE (170/80-15 M/C 77S G702) (BRIDGESTONE)TIRE (170/80-15 M/C 77S G702) (BRIDGESTONE)
-
1493900-00025-00 VALVE, RIM (PVR59A)VALVE, RIM (PVR59A)
-
155MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
155MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
155MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
165EL-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
1790201-160T2-00 WASHER, PLATEWASHER, PLATE
-
1895604-16200-00 NUT, U FLANGENUT, U FLANGE
-
1990387-177Y4-00 COLLARCOLLAR
-
204H7-25377-00-00 COLLAR, WHEELCOLLAR, WHEEL
