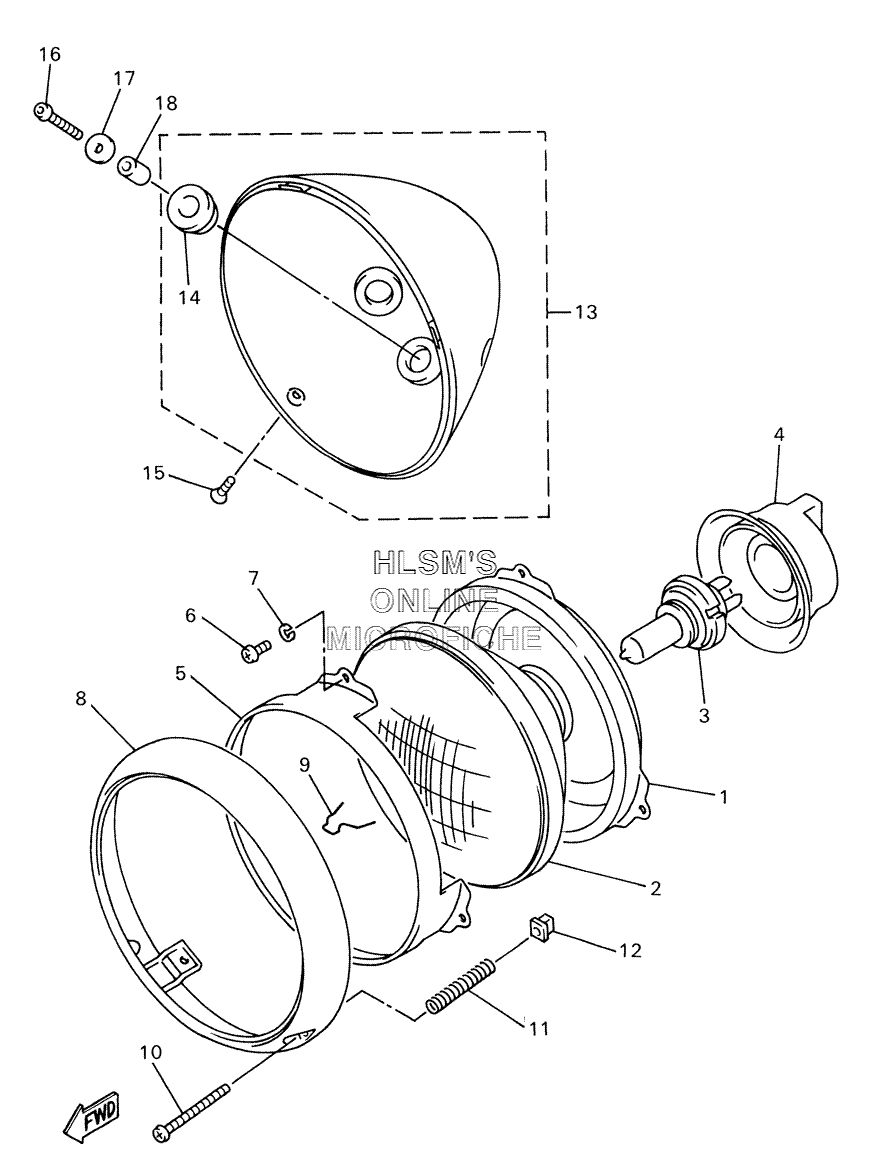

HEADLIGHT для Yamaha V STAR 1100 CLASSIC - 2006 года выпуска
-
№АртикулНазвание
-
14NK-84394-00-00 RING, MOUNTINGRING, MOUNTING
-
24NK-84320-00-00 LENS ASSYLENS ASSY
-
32F9-84314-00-00 BULB (12V-60/55W) HALOGENBULB (12V-60/55W) HALOGEN
-
43SX-84397-00-00 COVER, SOCKETCOVER, SOCKET
-
52F9-84395-00-00 RING, RETAININGRING, RETAINING
-
698502-04008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
792902-04100-00 WASHER, SPRINGWASHER, SPRING
-
84NK-84315-00-00 RIM, HEADLIGHTRIM, HEADLIGHT
-
9290-84124-21-00 SPRING, SETSPRING, SET
-
10341-84331-60-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
115G2-84332-60-00 SPRING, SCREWSPRING, SCREW
-
12198-84334-60-00 NUT, ADJUSTINGNUT, ADJUSTING
-
135KS-84330-00-00 BODY ASSYBODY ASSY
-
1442X-84366-00-00 ...DAMPER, HEADLIGHT 1...DAMPER, HEADLIGHT 1
-
1598704-05012-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
1692017-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1790201-060A3-00 WASHER, PLATEWASHER, PLATE
-
1890387-0610J-00 COLLARCOLLAR
