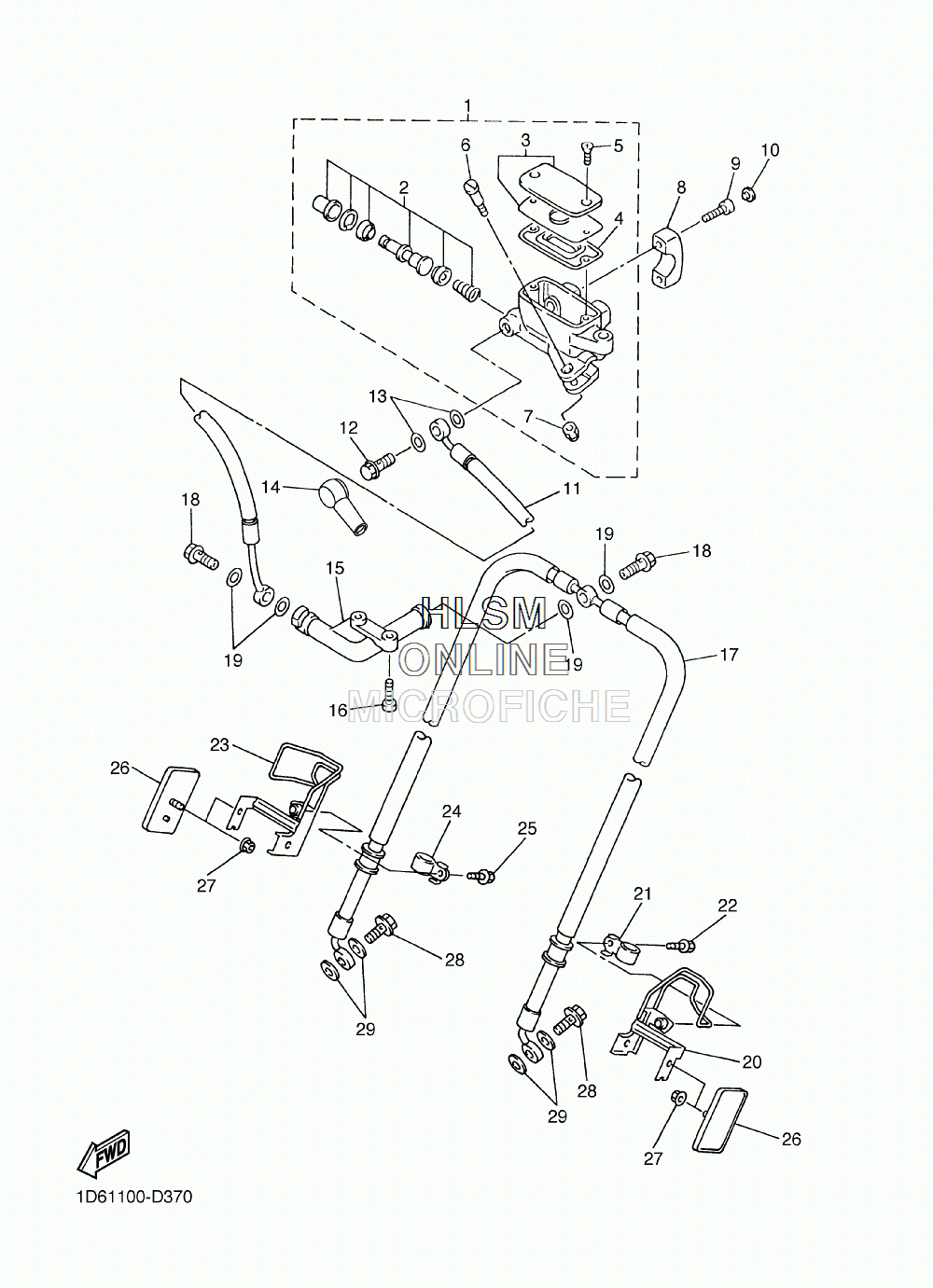

BRAKE - FRONT MASTER CYLINDER для Yamaha ROYAL STAR TOUR DELUXE (1D6A/1D6B) [XVZ13CTW/C] - 2007 года выпуска
-
№АртикулНазвание
-
14XY-W2587-10-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
24K0-W0041-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
35VN-W2585-20-00 ...RESERVOIR CAP SET...RESERVOIR CAP SET
-
44NK-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
54NK-2589H-00-00 ...SCREW...SCREW
-
64NK-2589F-00-00 ...BOLT, LEVER...BOLT, LEVER
-
795604-06100-00 ...NUT, U...NUT, U
-
84NK-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
991314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1090338-06162-00 PLUGPLUG
-
111D6-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1290401-10020-00 BOLT, UNIONBOLT, UNION
-
1390430-10005-00 GASKETGASKET
-
144L0-25862-01-00 BOOT, MASTER CYLINDERBOOT, MASTER CYLINDER
-
154NK-25885-00-00 JOINTJOINT
-
1691317-06020-00 BOLTBOLT
-
171D6-25873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
1890401-10020-00 BOLT, UNIONBOLT, UNION
-
1990430-10005-00 GASKETGASKET
-
204XY-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
2190461-10132-00 CLAMPCLAMP
-
2295807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
234XY-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2490461-10132-00 CLAMPCLAMP
-
2595807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2611H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
2795707-05500-00 NUT, FLANGENUT, FLANGE
-
2890401-10020-00 BOLT, UNIONBOLT, UNION
-
2990430-10005-00 GASKETGASKET
