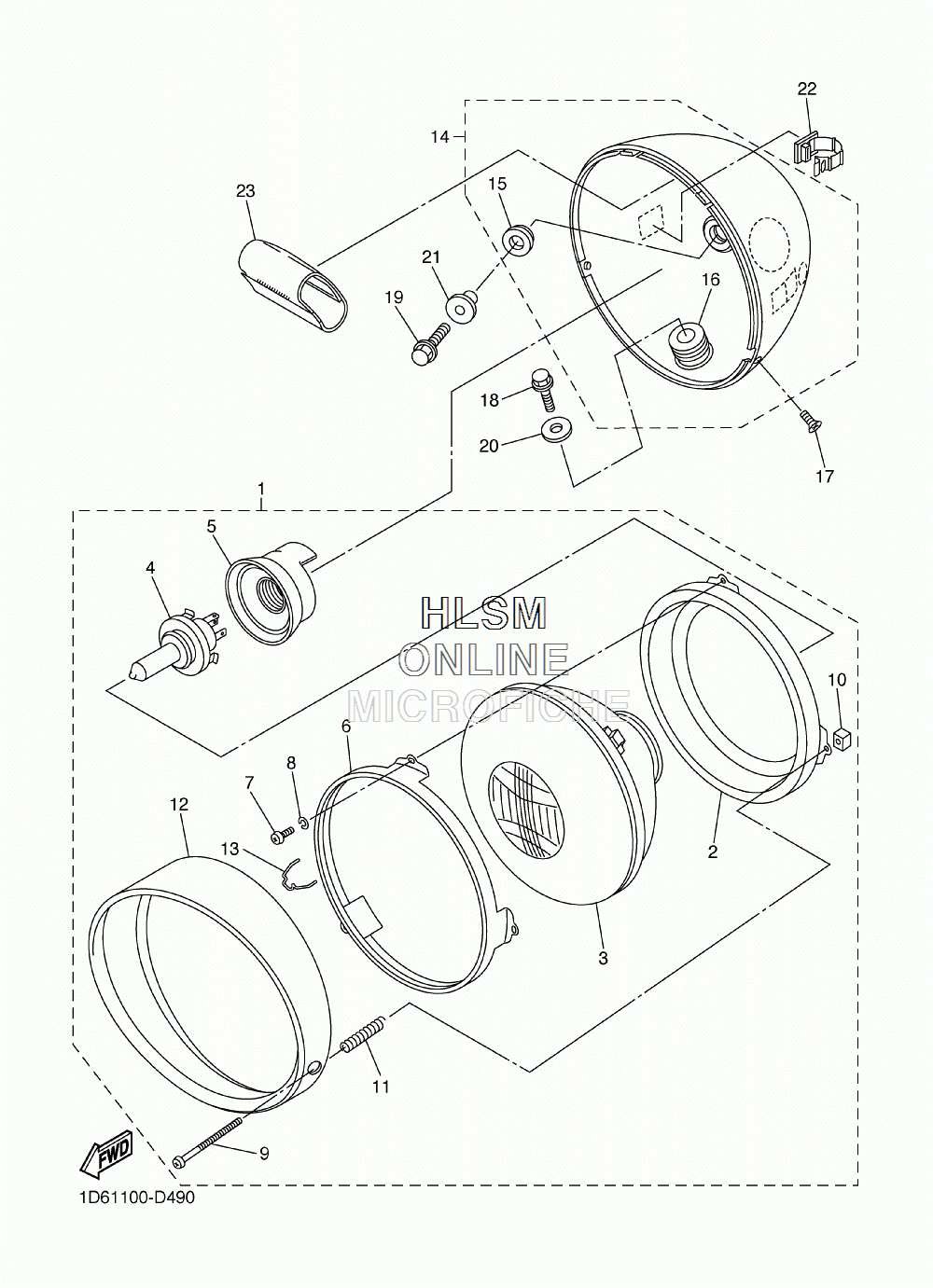

HEADLIGHT для Yamaha ROYAL STAR TOUR DELUXE (1D6A/1D6B) [XVZ13CTW/C] - 2007 года выпуска
-
№АртикулНазвание
-
11D6-84310-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
21D6-84394-00-00 ...RING, MOUNTING...RING, MOUNTING
-
34NK-84320-00-00 ...LENS ASSY...LENS ASSY
-
45V2-84314-00-XX ...BULB (12V 60/55W) ((H4) HALOGEN)...BULB (12V 60/55W) ((H4) HALOGEN)
-
53SX-84397-00-00 ...COVER, SOCKET...COVER, SOCKET
-
62F9-84395-00-00 ...RING, RETAINING...RING, RETAINING
-
798502-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
892902-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
9341-84331-60-00 ...SCREW, RIM ADJUSTING...SCREW, RIM ADJUSTING
-
10198-84334-60-00 ...NUT, ADJUSTING...NUT, ADJUSTING
-
115G2-84332-60-00 ...SPRING, SCREW...SPRING, SCREW
-
121D6-84315-00-00 ...RIM, HEADLIGHT...RIM, HEADLIGHT
-
13290-84124-21-00 ...SPRING, SET...SPRING, SET
-
144WM-84330-00-00 BODY ASSYBODY ASSY
-
1542X-84366-00-00 ...DAMPER, HEADLIGHT 1...DAMPER, HEADLIGHT 1
-
164WM-84366-00-00 ...DAMPER, HEADLIGHT 1...DAMPER, HEADLIGHT 1
-
1790152-05005-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
1895027-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1995027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2090201-060A3-00 WASHER, PLATEWASHER, PLATE
-
2190387-06049-00 COLLARCOLLAR
-
2290464-14002-00 CLAMPCLAMP
-
235VN-8412H-00-00 STAY SETTINGSTAY SETTING
