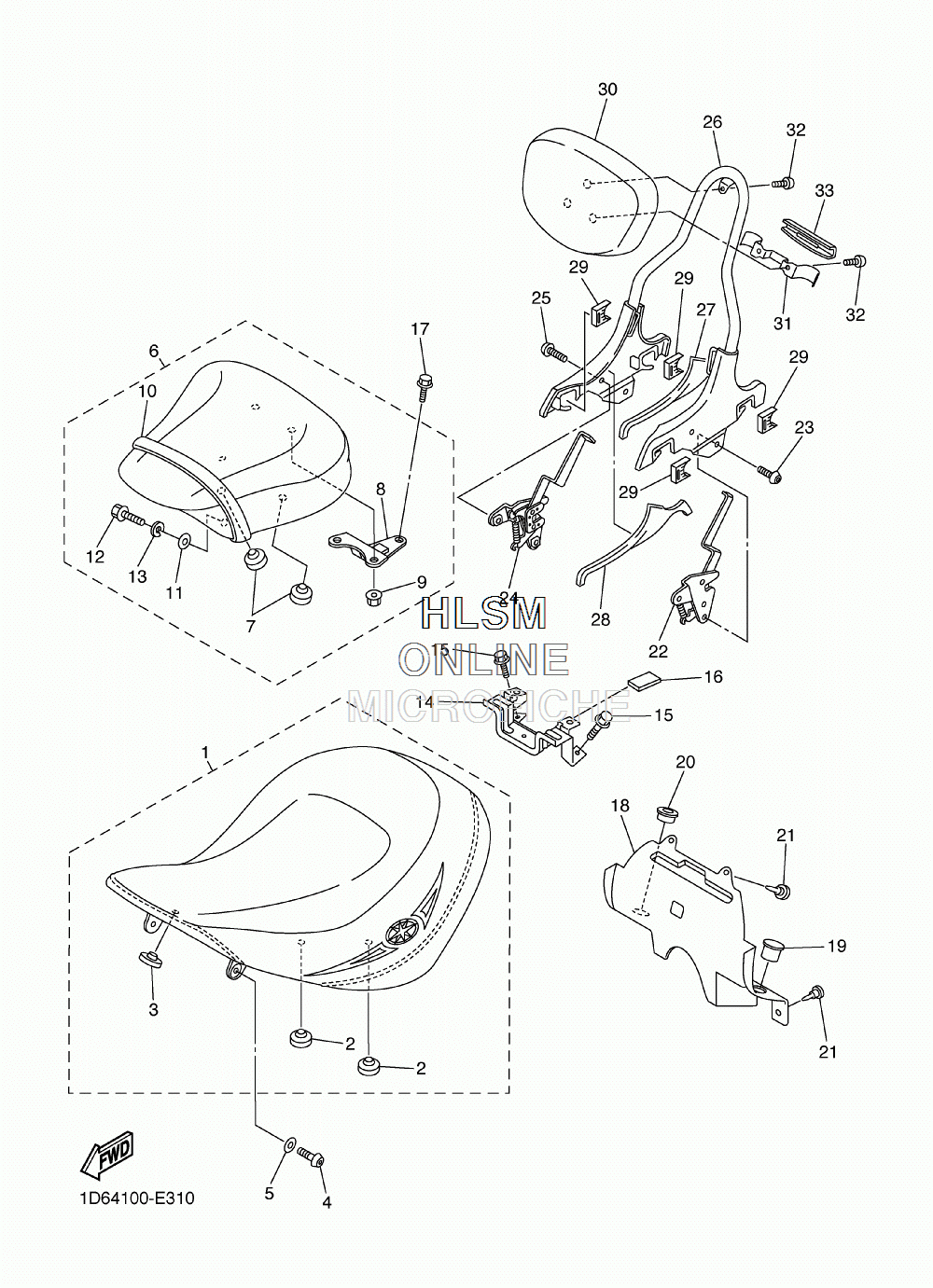

SEAT для Yamaha ROYAL STAR TOUR DELUXE (1D6A/1D6B) [XVZ13CTW/C] - 2007 года выпуска
-
№АртикулНазвание
-
11D6-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
222W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
33L7-24724-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
492014-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
592903-08200-00 WASHER, PLAINWASHER, PLAIN
-
61D6-24750-00-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
722W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
84NK-2471A-00-00 ...STAY, SEAT...STAY, SEAT
-
995707-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
101D6-24734-00-00 ...BAND, SEA...BAND, SEA
-
1190201-06380-00 ...WASHER PLAIN...WASHER PLAIN
-
1297307-06020-00 ...BOLT...BOLT
-
1392907-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
144NK-2475H-00-00 BRACKET, SEAT LEVER 1BRACKET, SEAT LEVER 1
-
1595027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
16509-24724-00-00 DAMPER, SEATDAMPER, SEAT
-
1795024-08012-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
184NK-24796-00-00 COVERCOVER
-
1990338-23172-00 PLUGPLUG
-
204XY-24847-00-00 HOLDER 1HOLDER 1
-
2190269-06083-00 RIVETRIVET
-
221D6-216A0-00-00 LOCK ASSYLOCK ASSY
-
2390111-06054-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
241D6-216B0-00-00 LOCK ASSY 2LOCK ASSY 2
-
2590111-06054-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
261D6-21640-00-00 REAR STAY COMP.REAR STAY COMP.
-
271D6-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
281D6-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
291D6-216A1-00-00 STOPPER, RUBBERSTOPPER, RUBBER
-
301D6-2840F-10-00 BACK REST ASSYBACK REST ASSY
-
315GA-2164G-00-00 STAY 2STAY 2
-
3290111-06003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
335GA-24786-01-00 EMBLEMEMBLEM
