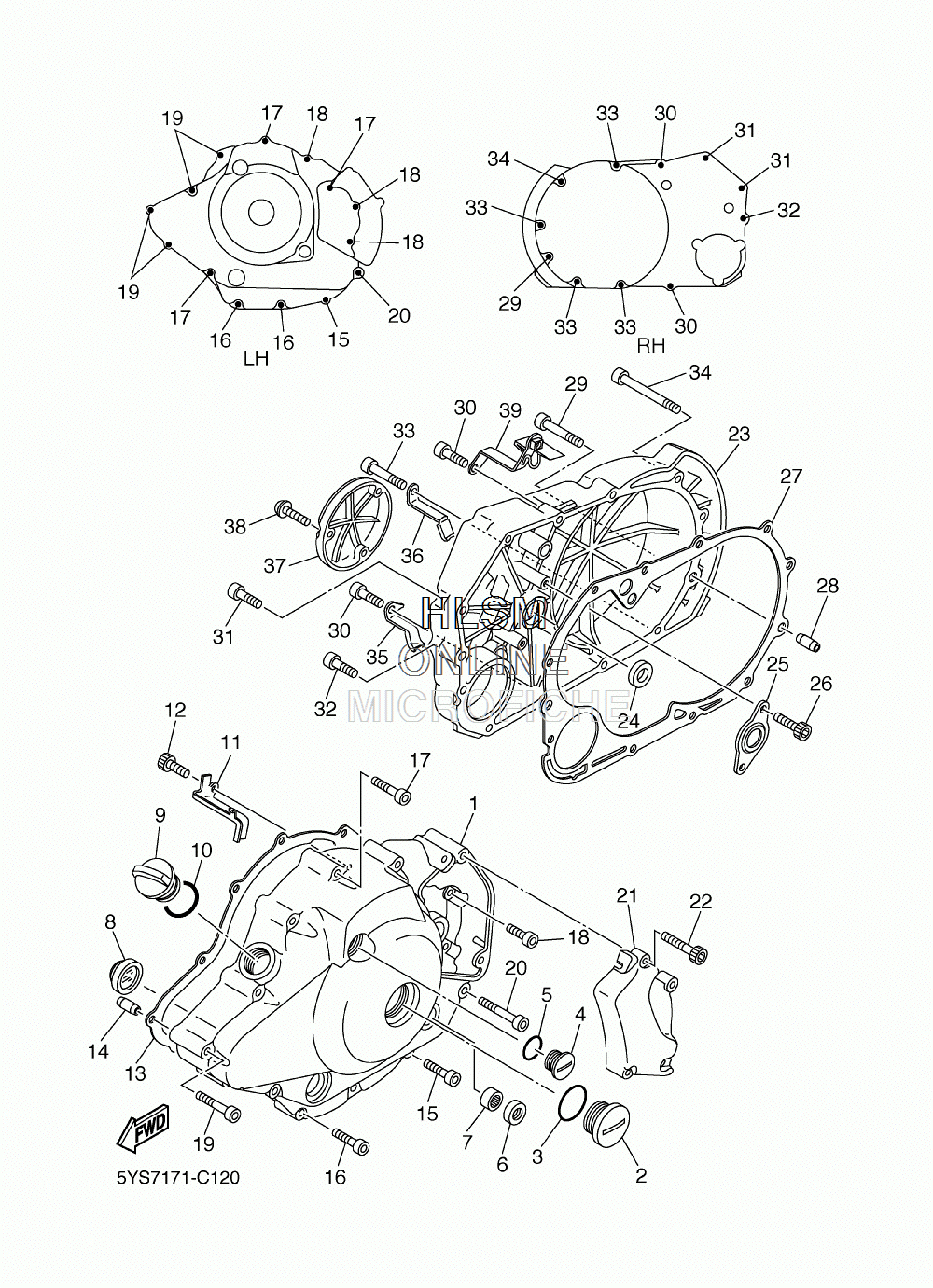

CRANKCASE COVER для Yamaha V STAR 1100 SILVERADO (5YSX/5YSY) [XVS11ATW/C] - 2007 года выпуска
-
№АртикулНазвание
-
15EL-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
290340-32140-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
393210-32172-00 O-RINGO-RING
-
490340-14153-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
593210-14369-00 O-RINGO-RING
-
693102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
793317-21236-00 BEARINGBEARING
-
82H7-15361-00-00 GAUGE, LEVELGAUGE, LEVEL
-
93F9-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
1093210-27370-00 O-RINGO-RING
-
115EL-15484-00-00 CLAMP 2CLAMP 2
-
1291317-06012-00 BOLTBOLT
-
135EL-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
1499530-10114-00 PIN, DOWELPIN, DOWEL
-
1591314-06035-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1691314-06030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1791314-06045-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1890110-06003-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1991314-06055-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2091314-06065-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
215EL-15417-00-00 COVER, CAPCOVER, CAP
-
2291314-06030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
235EL-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
2493101-14102-00 OIL SEALOIL SEAL
-
254X7-15388-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
2691314-06016-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
275EL-15462-00-00 GASKET, CRANKCASE COVER 3 (INCL. IN CLUTCH PLATE KIT)GASKET, CRANKCASE COVER 3 (INCL. IN CLUTCH PLATE KIT)
-
2899530-10120-00 PIN, DOWELPIN, DOWEL
-
2991314-06060-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3091314-06035-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3190110-06006-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3291314-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3391314-06055-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3490110-06111-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3590462-10003-00 CLAMPCLAMP
-
3690462-10247-00 CLAMPCLAMP
-
375EL-15423-00-00 COVER 2COVER 2
-
3892014-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
395EL-14413-00-00 STAYSTAY
