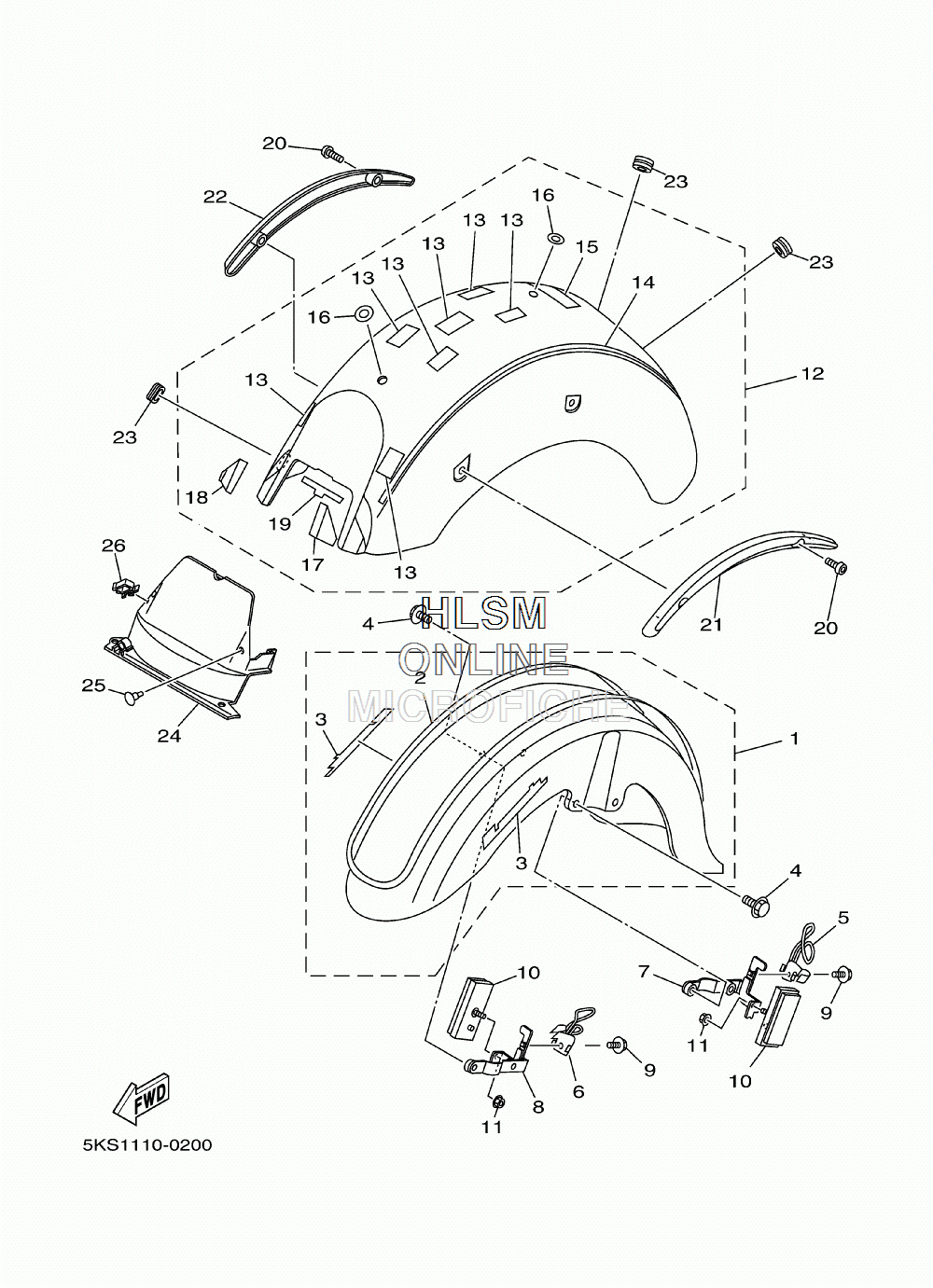

FENDER - FRONT / REAR для Yamaha V STAR 1100 SILVERADO (5YSX/5YSY) [XVS11ATW/C] - 2007 года выпуска
-
№АртикулНазвание
-
15KS-Y2151-F0-P0 FRONT FENDER ASSY (OPT) (BS4)FRONT FENDER ASSY (OPT) (BS4)
-
15KS-Y215R-0B-P4 FRONT FENDER ASSY (OPT) VDRM2)FRONT FENDER ASSY (OPT) VDRM2)
-
25KS-21570-D0-00 ...GRAPHIC SET, FRONT FENDER (OPT) (FOR BS4)...GRAPHIC SET, FRONT FENDER (OPT) (FOR BS4)
-
25YS-21570-40-00 ...GRAPHIC SET, FRONT FENDER (OPT) (FOR VDRM2)...GRAPHIC SET, FRONT FENDER (OPT) (FOR VDRM2)
-
35BN-21565-00-00 ...EMBLEM, 2...EMBLEM, 2
-
495817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
55KS-21597-00-00 HOLDER,WIRE 1HOLDER,WIRE 1
-
65KS-21598-00-00 HOLDER, WIRE 2HOLDER, WIRE 2
-
75KS-21587-00-00 STAY 1STAY 1
-
85KS-21588-00-00 STAY 2STAY 2
-
995807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1011H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
1195707-05500-00 NUT, FLANGENUT, FLANGE
-
125KS-Y216R-Y1-P4 REAR FENDER COMP. (OPT) (VDRM2)REAR FENDER COMP. (OPT) (VDRM2)
-
125KS-Y2161-0W-P0 REAR FENDER COMP. (OPT) (BS4)REAR FENDER COMP. (OPT) (BS4)
-
133SP-21732-00-00 ...SEAL 1...SEAL 1
-
145KS-2165A-D0-00 ...GRAPHIC SET, REAR FENDER (OPT) (FOR BS4)...GRAPHIC SET, REAR FENDER (OPT) (FOR BS4)
-
145YS-2165A-40-00 ...GRAPHIC SET, REAR FENDER (OPT) (FOR VDRM2)...GRAPHIC SET, REAR FENDER (OPT) (FOR VDRM2)
-
151D6-2153E-00-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
164NK-21735-00-00 ...SEAL 2...SEAL 2
-
175KS-21669-00-00 ...SEAL...SEAL
-
185KS-21669-10-00 ...SEAL...SEAL
-
195KS-21669-20-00 ...SEAL...SEAL
-
2092014-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
214WM-2164F-00-00 STAY 1STAY 1
-
224WM-2164G-00-00 STAY 2STAY 2
-
2390480-15061-00 GROMMETGROMMET
-
245KS-21629-00-00 GUARD, MUDGUARD, MUD
-
2590269-07077-00 RIVETRIVET
-
2690464-16021-00 CLAMPCLAMP
