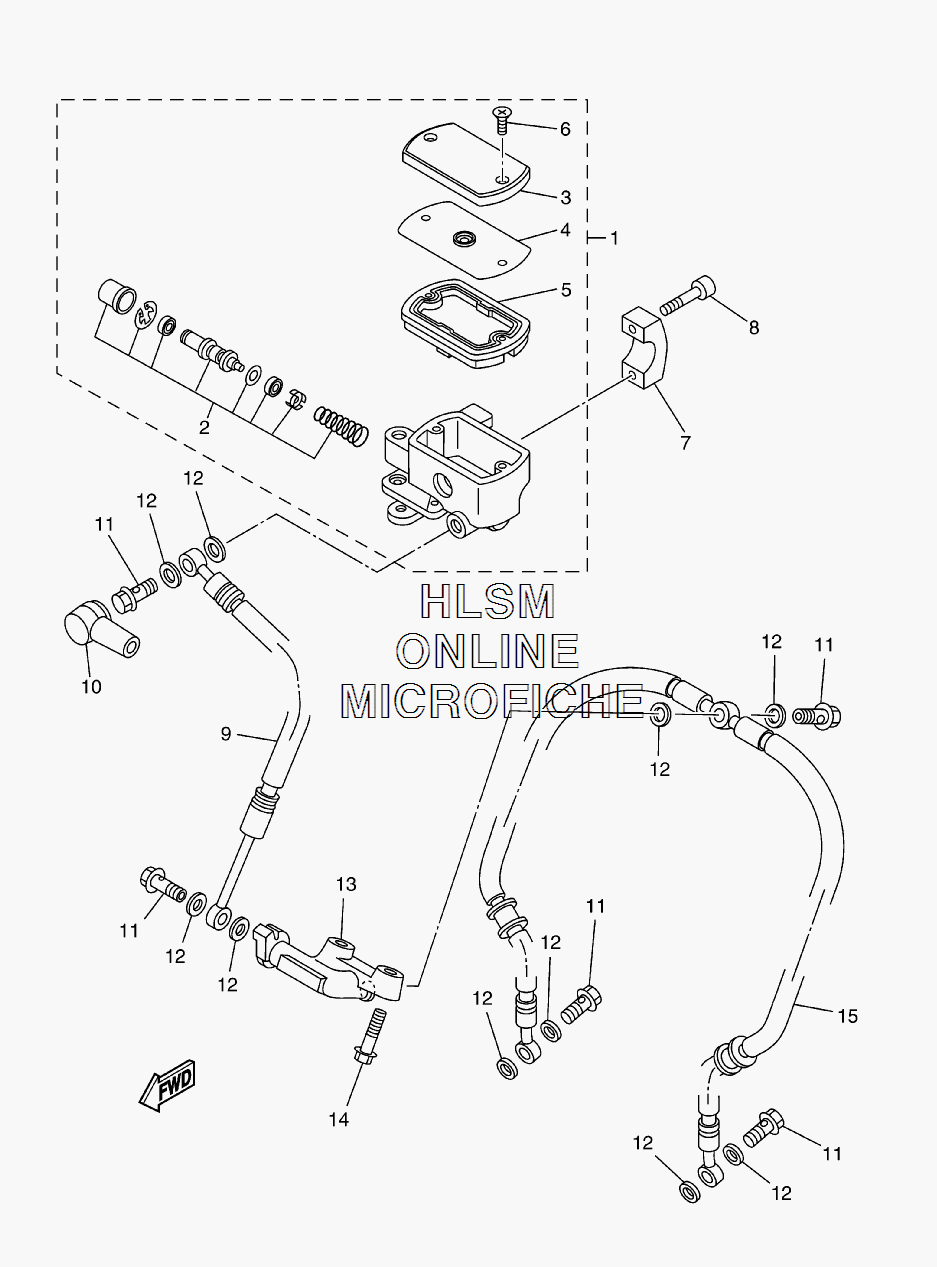

BRAKE - FRONT MASTER CYLINDER для Yamaha V STAR 1100 SILVERADO [XVS11ATX] - 2007 года выпуска
-
№АртикулНазвание
-
13D8-W2587-10-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
22KR-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
33D8-25852-10-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
43D8-25855-00-00 ...BUSH,DIAPHRAGM...BUSH,DIAPHRAGM
-
53D8-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
63D8-2589H-10-00 ...SCREW...SCREW
-
74TR-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
891314-06025-00 BOLT (3DM)BOLT (3DM)
-
95KS-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
104L0-25862-01-00 BOOT, MASTER CYLINDERBOOT, MASTER CYLINDER
-
1190401-10020-00 BOLT, UNIONBOLT, UNION
-
1290430-10005-00 GASKETGASKET
-
135KS-25885-00-00 JOINTJOINT
-
1495807-06030-00 BOLT, FLANGEBOLT, FLANGE
-
155KS-25873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
