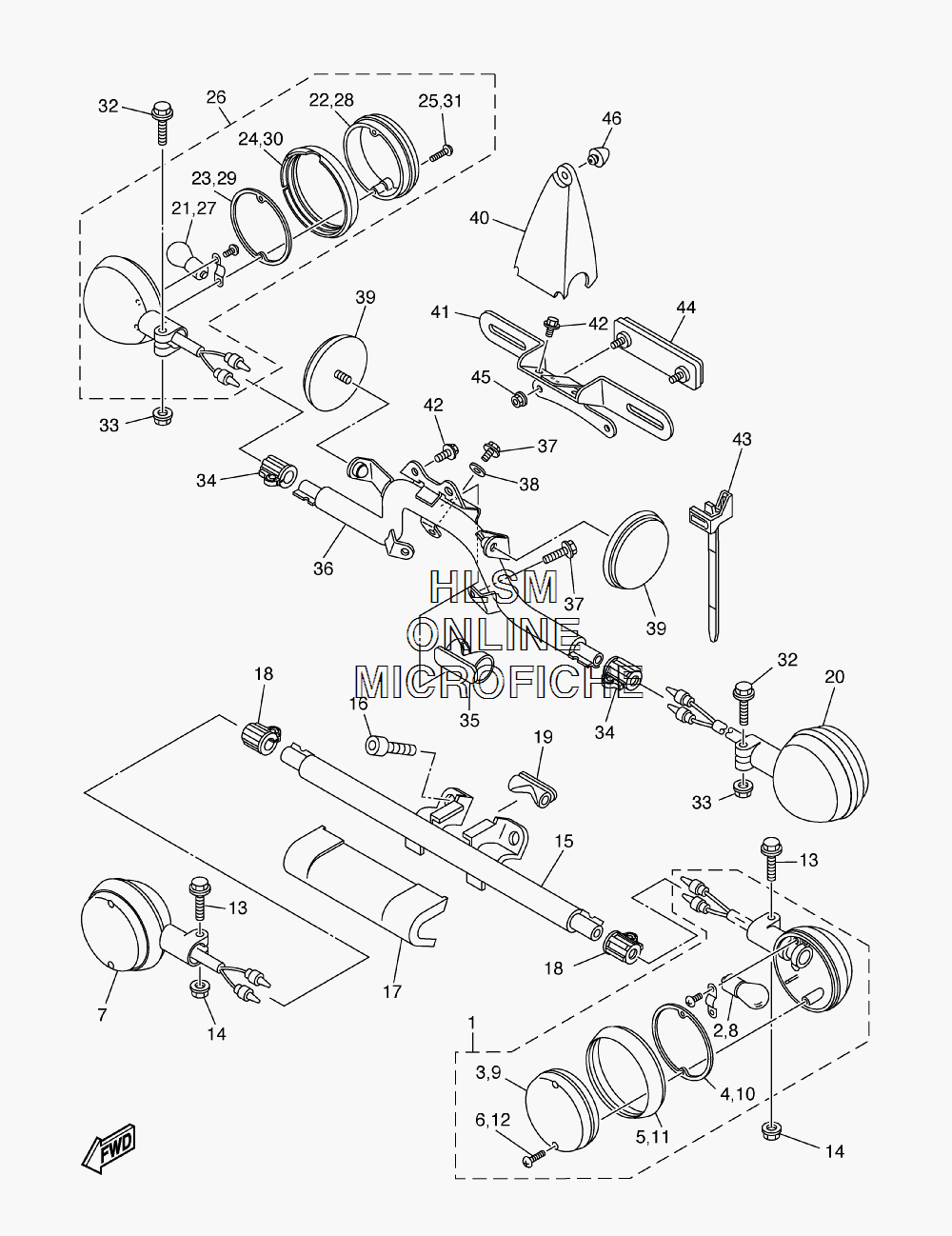

FLASHER LIGHT для Yamaha V STAR 1100 SILVERADO [XVS11ATX] - 2007 года выпуска
-
№АртикулНазвание
-
15YS-83310-00-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
25VN-83311-00-00 ...BULB, FLASHER (12V-23/8W)...BULB, FLASHER (12V-23/8W)
-
35VN-83312-10-00 ...LENS, FLASHER...LENS, FLASHER
-
41D6-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
51D6-83363-00-00 ...LENS, RIM...LENS, RIM
-
657M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
75YS-83320-00-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
85VN-83311-00-00 ...BULB, FLASHER (12V-23/8W)...BULB, FLASHER (12V-23/8W)
-
95VN-83312-20-00 ...LENS, FLASHER...LENS, FLASHER
-
101D6-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
111D6-83363-10-00 ...LENS, RIM...LENS, RIM
-
1257M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
1395024-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1495704-06500-00 NUT, FLANGENUT, FLANGE
-
155BN-2317V-00-00 STAY 8STAY 8
-
1691314-08016-00 BOLT, SOCKETBOLT, SOCKET
-
174NK-23122-01-00 COVER, OUTER 1COVER, OUTER 1
-
185VN-83321-00-00 DAMPER, FLASHER 1DAMPER, FLASHER 1
-
194NK-83345-00-00 PLUG, BLINDPLUG, BLIND
-
201D6-83330-00-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
215VN-83311-10-00 ...BULB, FLASHER (12V-21W)...BULB, FLASHER (12V-21W)
-
221D6-83312-20-00 ...LENS, FLASHER...LENS, FLASHER
-
231D6-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
241D6-83363-10-00 ...LENS, RIM...LENS, RIM
-
2557M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
261D6-83340-00-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
275VN-83311-10-00 ...BULB, FLASHER (12V-21W)...BULB, FLASHER (12V-21W)
-
281D6-83312-10-00 ...LENS, FLASHER...LENS, FLASHER
-
291D6-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
301D6-83363-00-00 ...LENS, RIM...LENS, RIM
-
3157M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
3295024-06030-00 BOLT, FLANGEBOLT, FLANGE
-
3395704-06500-00 NUT, FLANGENUT, FLANGE
-
345VN-83321-00-00 DAMPER, FLASHER 1DAMPER, FLASHER 1
-
354NK-83345-00-00 PLUG, BLINDPLUG, BLIND
-
365KS-2317W-20-00 STAY, 9STAY, 9
-
3795024-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3890201-06043-00 WASHER, PLATEWASHER, PLATE
-
39449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
405BN-84703-00-00 BRACKETBRACKET
-
415BN-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
4295027-06010-00 BOLT, FLANGE (4MY)BOLT, FLANGE (4MY)
-
4390464-25002-00 CLAMPCLAMP
-
441FK-85130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
4595707-05500-00 NUT, FLANGENUT, FLANGE
-
4642U-21639-00-00 DAMPER 2DAMPER 2
