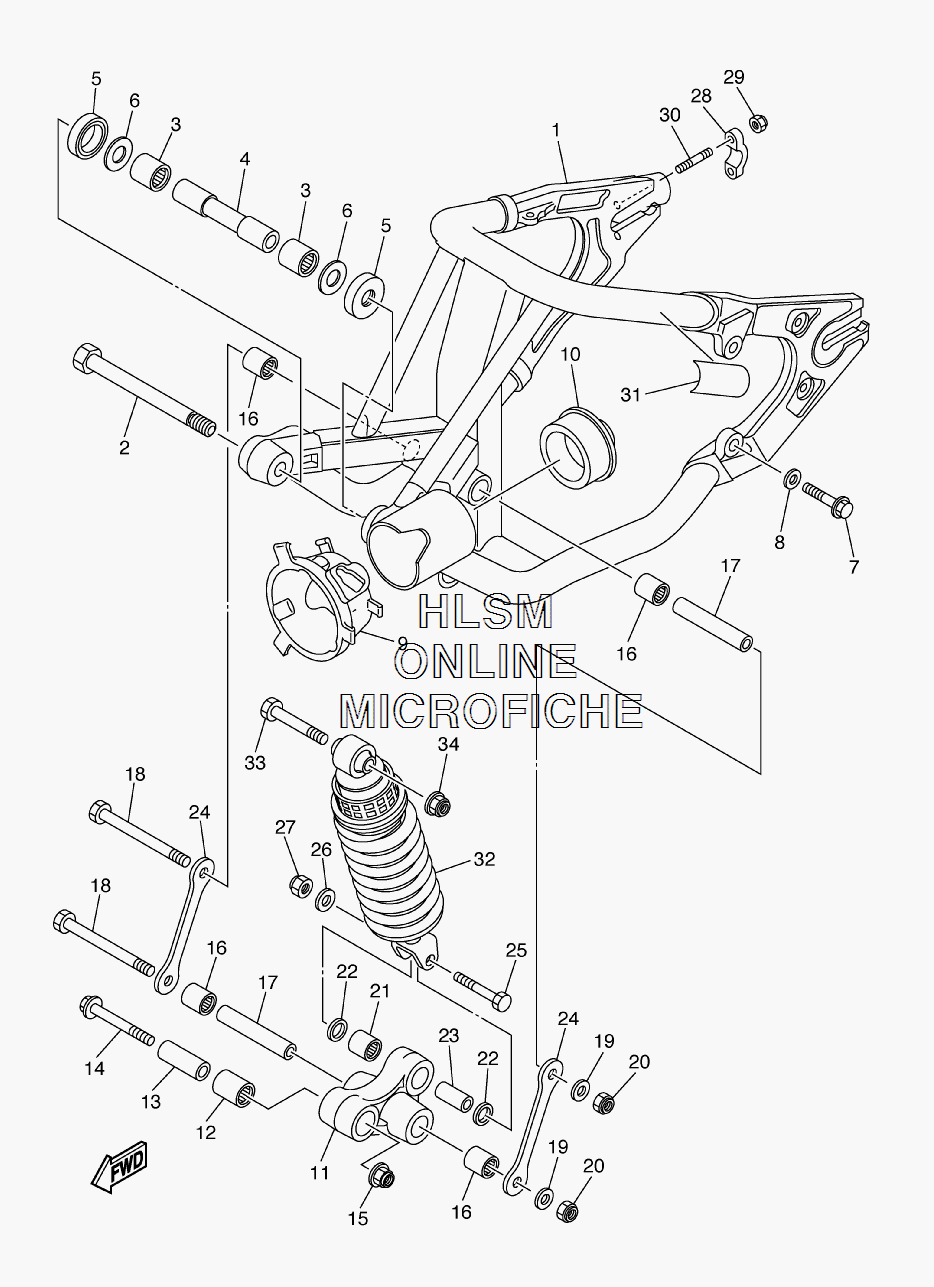

SUSPENSION - REAR ARM для Yamaha V STAR 1100 SILVERADO [XVS11ATX] - 2007 года выпуска
-
№АртикулНазвание
-
15KS-22110-02-00 REAR ARM COMP.REAR ARM COMP.
-
25EL-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
393320-32403-00 BEARING, CYL.#20BEARING, CYL.#20
-
44X7-22124-00-00 BUSH 2BUSH 2
-
55EL-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
690201-243U9-00 WASHER, PLATEWASHER, PLATE
-
790105-101A9-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
890201-112U0-00 WASHER, PLATEWASHER, PLATE
-
95EL-22189-00-00 BOOT, RUBBERBOOT, RUBBER
-
104VR-22184-00-00 BUSHBUSH
-
114KM-2217A-00-00 ARM, RELAYARM, RELAY
-
1293317-42060-00 BEARING, CYL.#17BEARING, CYL.#17
-
1390387-100T8-00 COLLARCOLLAR
-
1490105-10727-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1595607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1693317-41761-00 BEARING, CYL.#17BEARING, CYL.#17
-
1790387-126T1-00 COLLARCOLLAR
-
1890101-12673-00 BOLT (2GH)BOLT (2GH)
-
1990201-126A7-00 WASHER, PLATEWASHER, PLATE
-
2095617-12100-00 NUT, UNUT, U
-
2193317-31771-00 BEARINGBEARING
-
2293109-17071-00 OIL SEALOIL SEAL
-
2390387-127W0-00 COLLARCOLLAR
-
242KT-2217M-00-00 ARM 1ARM 1
-
2590101-10659-00 BOLTBOLT
-
2690201-101J1-00 WASHER, PLATEWASHER, PLATE
-
2795617-10100-00 NUT, UNUT, U
-
281E6-23441-10-98 HOLDER, HANDLE UPPER (LOW GLOSS BLACK)HOLDER, HANDLE UPPER (LOW GLOSS BLACK)
-
2995607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3095627-08330-00 BOLT, STUD (71G)BOLT, STUD (71G)
-
315KS-21668-00-00 LABEL, TIRELABEL, TIRE
-
325KS-22210-60-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
3390109-10554-00 BOLTBOLT
-
3495607-10200-00 NUT, U FLANGENUT, U FLANGE
