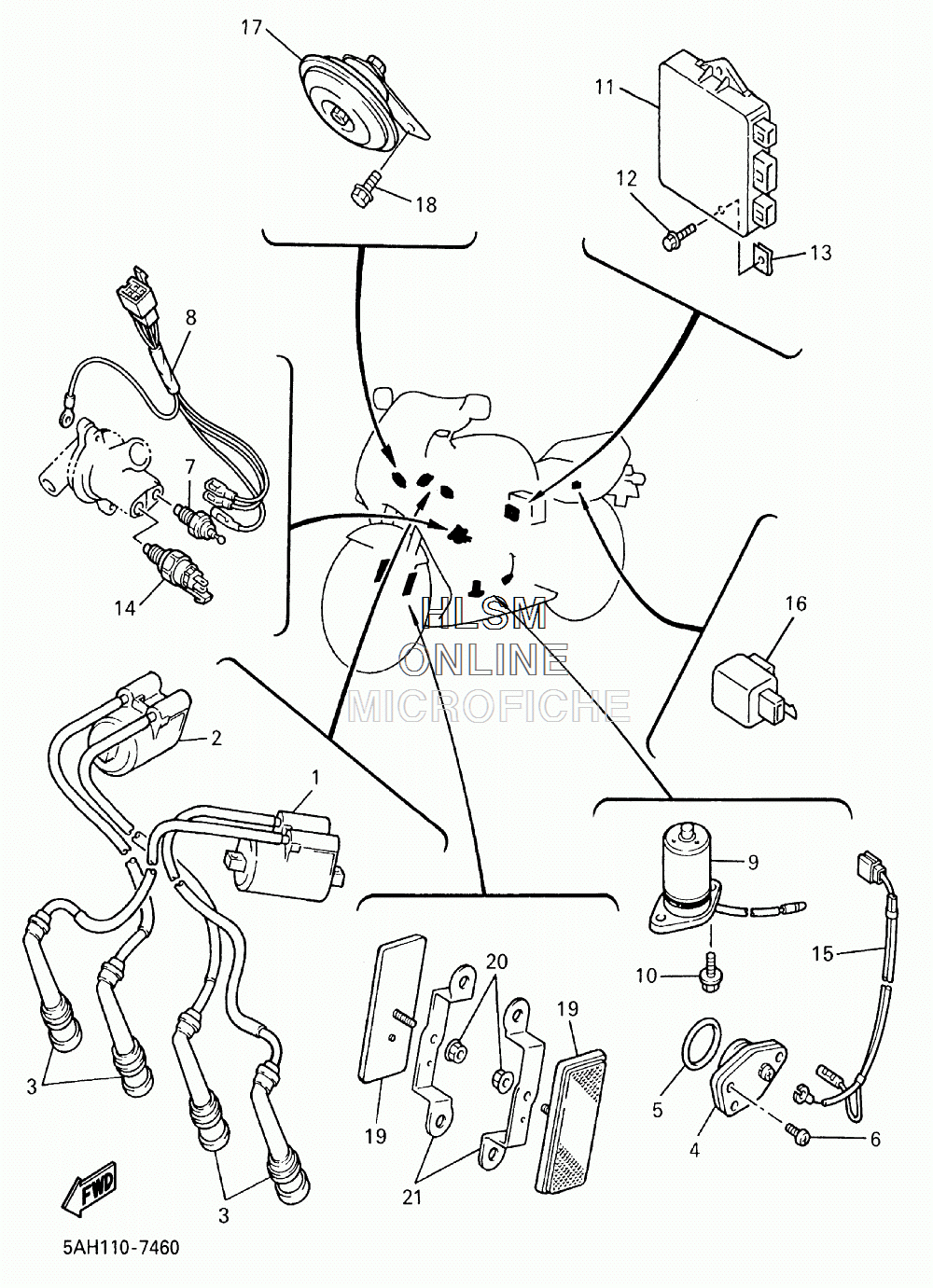

ELECTRICAL для Yamaha YZF600R (5AHM/5AHN) [YZF600RW/C] - 2007 года выпуска
-
№АртикулНазвание
-
14TV-82310-01-00 IGNITION COIL ASSY (NOT AVAILABLE)IGNITION COIL ASSY (NOT AVAILABLE)
-
24FM-82320-01-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
34TV-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
41AE-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
593210-29196-00 O-RINGO-RING
-
698507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
711H-83591-00-00 THERMO UNITTHERMO UNIT
-
83TJ-82583-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
94JH-85720-03-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
1095027-06016-00 BOLT, FLANGEBOLT, FLANGE
-
114TV-82305-50-00 IGNITOR UNIT ASSYIGNITOR UNIT ASSY
-
1295027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1390183-06023-00 NUT, SPRINGNUT, SPRING
-
143LN-82560-01-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
151WG-82541-00-00 WIRE, LEADWIRE, LEAD
-
164MY-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
174TH-83371-00-00 HORNHORN
-
1895807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1911H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
2095707-05500-00 NUT, FLANGENUT, FLANGE
-
214SV-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
