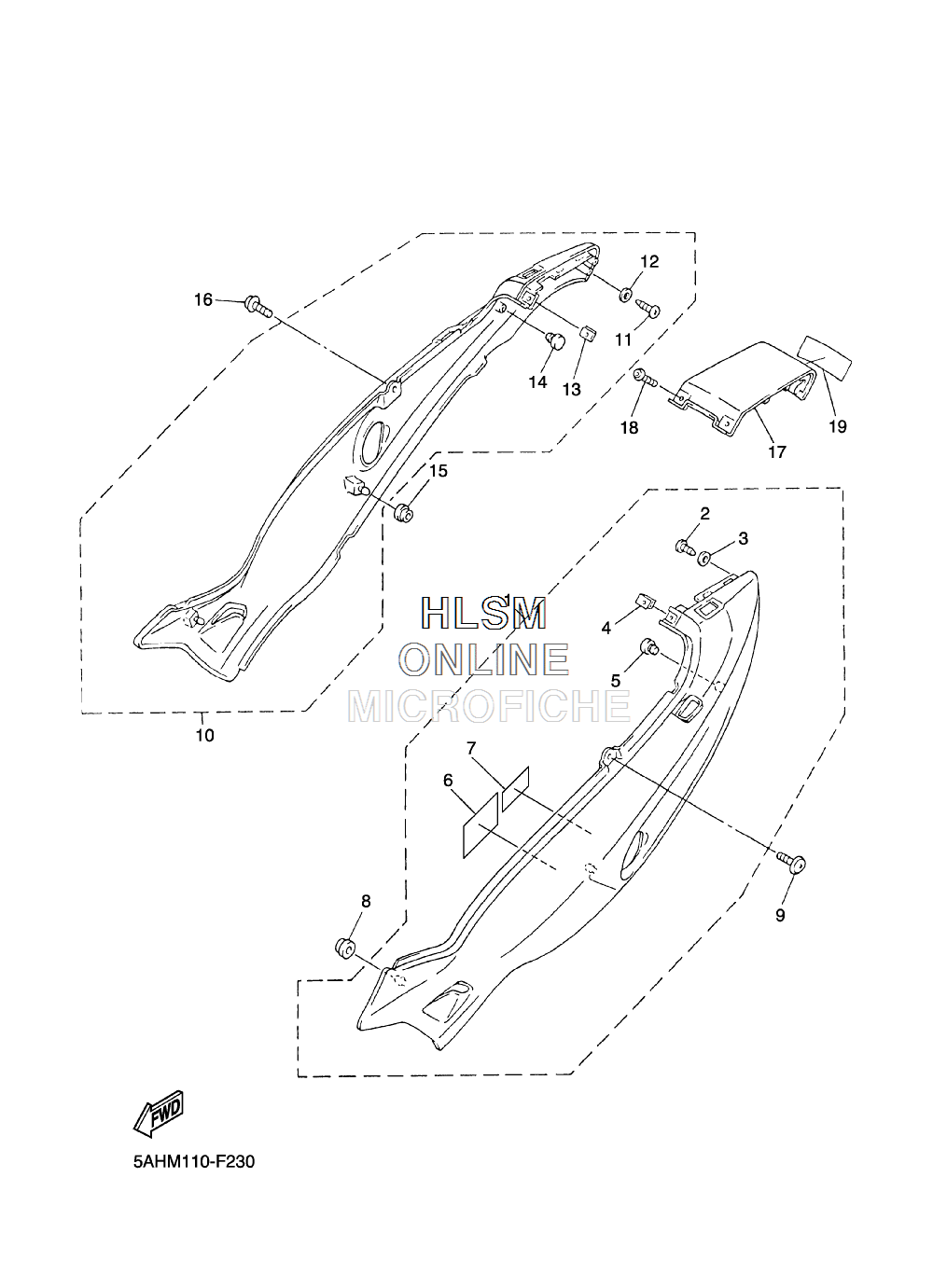

SIDE COVER для Yamaha YZF600R (5AHM/5AHN) [YZF600RW/C] - 2007 года выпуска
-
№АртикулНазвание
-
14TV-Y2171-1V-P4 COVER, SIDE 1 (DPBMC)COVER, SIDE 1 (DPBMC)
-
14TV-Y2171-1T-P4 COVER, SIDE 1 (DPBMC)COVER, SIDE 1 (DPBMC)
-
297707-40010-00 ...SCREW, TAPPING...SCREW, TAPPING
-
390201-042E0-00 ...WASHER, PLATE...WASHER, PLATE
-
490183-05024-00 ...NUT, SPRING...NUT, SPRING
-
590338-10132-00 ...PLUG...PLUG
-
65AH-2179R-A0-00 ...PLATE, EPA 2 (CALIFORNIA)...PLATE, EPA 2 (CALIFORNIA)
-
65AH-2179W-A0-00 ...PLATE, EPA (NON CALIFORNIA)...PLATE, EPA (NON CALIFORNIA)
-
74YN-21686-00-00 ...PLATE, ROUTING 2...PLATE, ROUTING 2
-
890480-13567-00 GROMMETGROMMET
-
990159-06033-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
104TV-Y2172-P1-P4 COVER, SIDE 2 (DPBMC)COVER, SIDE 2 (DPBMC)
-
1197707-40010-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1290201-042E0-00 ...WASHER, PLATE...WASHER, PLATE
-
1390183-05024-00 ...NUT, SPRING...NUT, SPRING
-
1490338-10132-00 ...PLUG...PLUG
-
1590480-13567-00 GROMMETGROMMET
-
1690159-06033-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
174TV-21651-00-P2 COVER, REAR FENDER (DPBMC)COVER, REAR FENDER (DPBMC)
-
1890154-05059-00 SCREW, BINDINGSCREW, BINDING
-
1999241-00080-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
