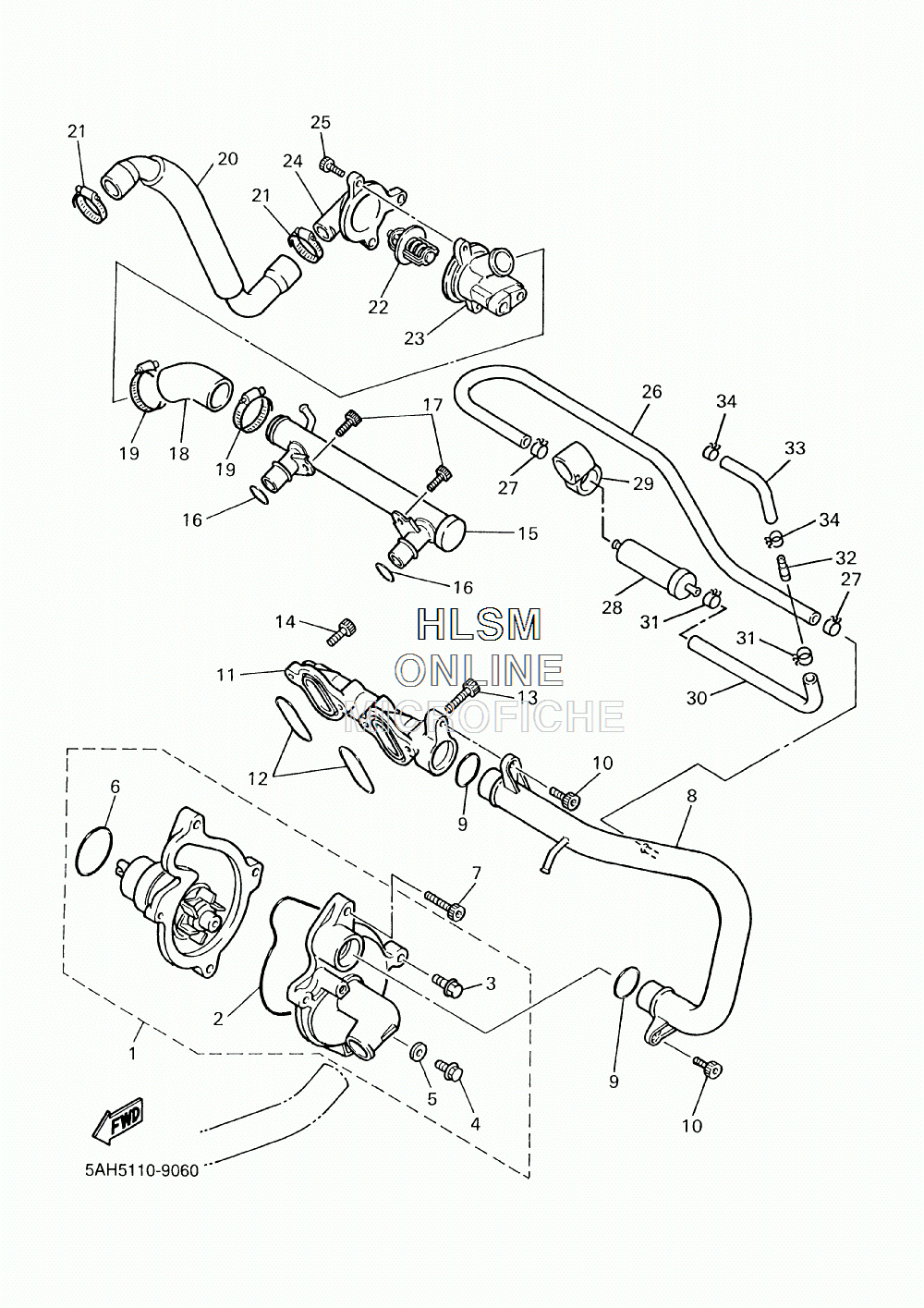

WATER PUMP для Yamaha YZF600R (5AHM/5AHN) [YZF600RW/C] - 2007 года выпуска
-
№АртикулНазвание
-
13TJ-Y1242-00-00 WATER PUMP ASSYWATER PUMP ASSY
-
21WG-12439-00-00 ...O-RING...O-RING
-
390105-066A5-00 ...BOLT, FLANGE...BOLT, FLANGE
-
495027-06012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
590430-06014-00 ...GASKET...GASKET
-
693210-33133-00 ...O-RING...O-RING
-
791317-06035-00 BOLTBOLT
-
84TV-12481-00-00 PIPE 1 (5AHM)PIPE 1 (5AHM)
-
84JH-12481-00-00 PIPE 1 (5AHN)PIPE 1 (5AHN)
-
993210-21190-00 O-RINGO-RING
-
1091317-06010-00 BOLTBOLT
-
111WG-12446-01-00 JOINTJOINT
-
1293210-17746-00 O-RINGO-RING
-
1391317-06040-00 BOLTBOLT
-
1491317-06025-00 BOLTBOLT
-
154JH-12482-00-00 PIPE 2PIPE 2
-
1693210-15414-00 O-RINGO-RING
-
1791317-06010-00 BOLTBOLT
-
183TJ-12576-00-00 HOSE 1HOSE 1
-
1990450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
204JH-12577-00-00 HOSE 2HOSE 2
-
2190450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
224JH-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
233TJ-12417-00-00 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
243TJ-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
2591317-06020-00 BOLTBOLT
-
264TV-12589-00-00 HOSE 6HOSE 6
-
2790467-11044-00 CLIPCLIP
-
285AH-1240G-00-00 THERMOSTATTHERMOSTAT
-
294TV-12572-00-00 ADAPTERADAPTER
-
304TV-1243E-00-00 HOSE 2HOSE 2
-
3190467-11044-00 CLIPCLIP
-
324TV-12581-00-00 JOINT, HOSE 1JOINT, HOSE 1
-
334TV-12551-00-00 HOSE 7HOSE 7
-
3490467-09037-00 CLIPCLIP
