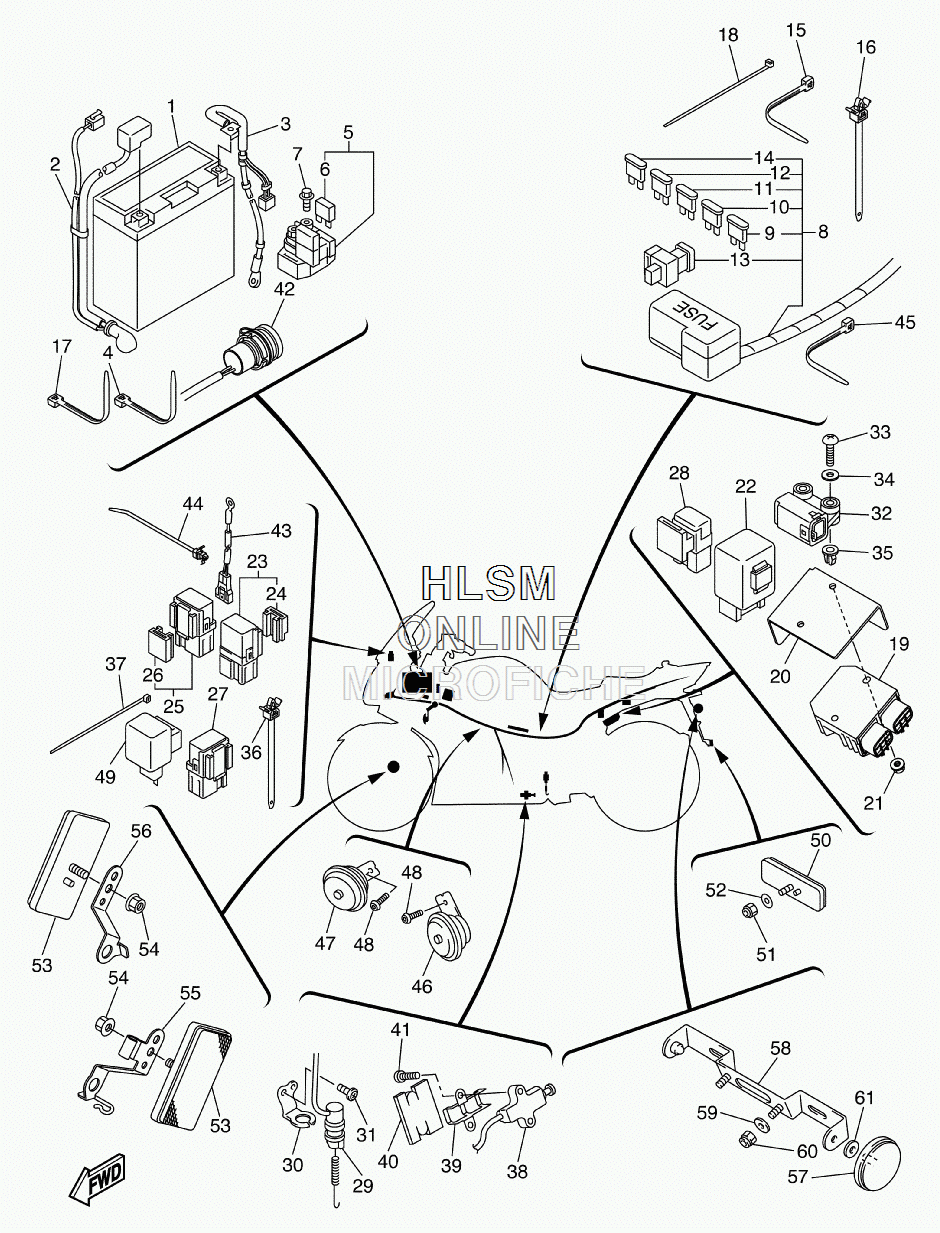

ELECTRICAL 2 для Yamaha FJR1300A - 2008 года выпуска
-
№АртикулНазвание
-
15EA-82100-11-00 BATTERY ASSY (GS GT14B-4)BATTERY ASSY (GS GT14B-4)
-
23P6-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
33P6-82116-10-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
41UA-82591-00-00 BANDBAND
-
53P6-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
61AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
795022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
83P6-82590-60-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
95JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
105JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
115JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
125JJ-82151-70-00 ...FUSE (25A-BL)...FUSE (25A-BL)
-
135JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
145JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
1590465-10098-00 BANDBAND
-
1690464-12036-00 CLAMPCLAMP
-
1790465-13275-00 CLAMPCLAMP
-
185Y9-12491-00-00 CLAMP 1CLAMP 1
-
191D7-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
203P6-81975-00-00 PLATE, RECTIFIER FITTINGPLATE, RECTIFIER FITTING
-
2195602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
225VK-81950-30-00 RELAY ASSYRELAY ASSY
-
235EA-81950-20-00 RELAY ASSYRELAY ASSY
-
245EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
255EA-81950-20-00 RELAY ASSYRELAY ASSY
-
265EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
275JJ-81950-10-00 RELAY ASSYRELAY ASSY
-
285DM-81950-00-00 RELAY ASSYRELAY ASSY
-
293P6-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
305JW-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
3198902-05008-00 SCREW, BINDSCREW, BIND
-
325PS-82576-01-00 LEAN ANGLE SENSORLEAN ANGLE SENSOR
-
3397702-40025-00 SCREW, TAPPINGSCREW, TAPPING
-
3490201-04030-00 WASHER, PLATEWASHER, PLATE
-
354B4-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
3690464-12036-00 CLAMPCLAMP
-
3790465-13152-00 BANDBAND
-
385PX-82566-51-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
393P6-82388-00-00 PLATEPLATE
-
403P6-82176-00-00 DAMPERDAMPER
-
4190157-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
423P6-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
435RU-85700-00-00 THERMISTOR ASSYTHERMISTOR ASSY
-
4490464-24001-00 CLAMPCLAMP
-
4590465-10098-00 BANDBAND
-
465PS-83371-00-00 HORNHORN
-
473P6-83371-00-00 HORNHORN
-
4892012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
493GM-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
503Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
5195602-05100-00 NUT, UNUT, U
-
5290201-05043-00 WASHER, PLATEWASHER, PLATE
-
5311H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
5495702-05500-00 NUT, FLANGE (SILVER)NUT, FLANGE (SILVER)
-
553P6-85112-10-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
563P6-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
57449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
585JW-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
5990201-06076-00 WASHER, PLATEWASHER, PLATE
-
6095602-06100-00 NUT, UNUT, U
-
6190201-05036-00 WASHER, PLATEWASHER, PLATE
