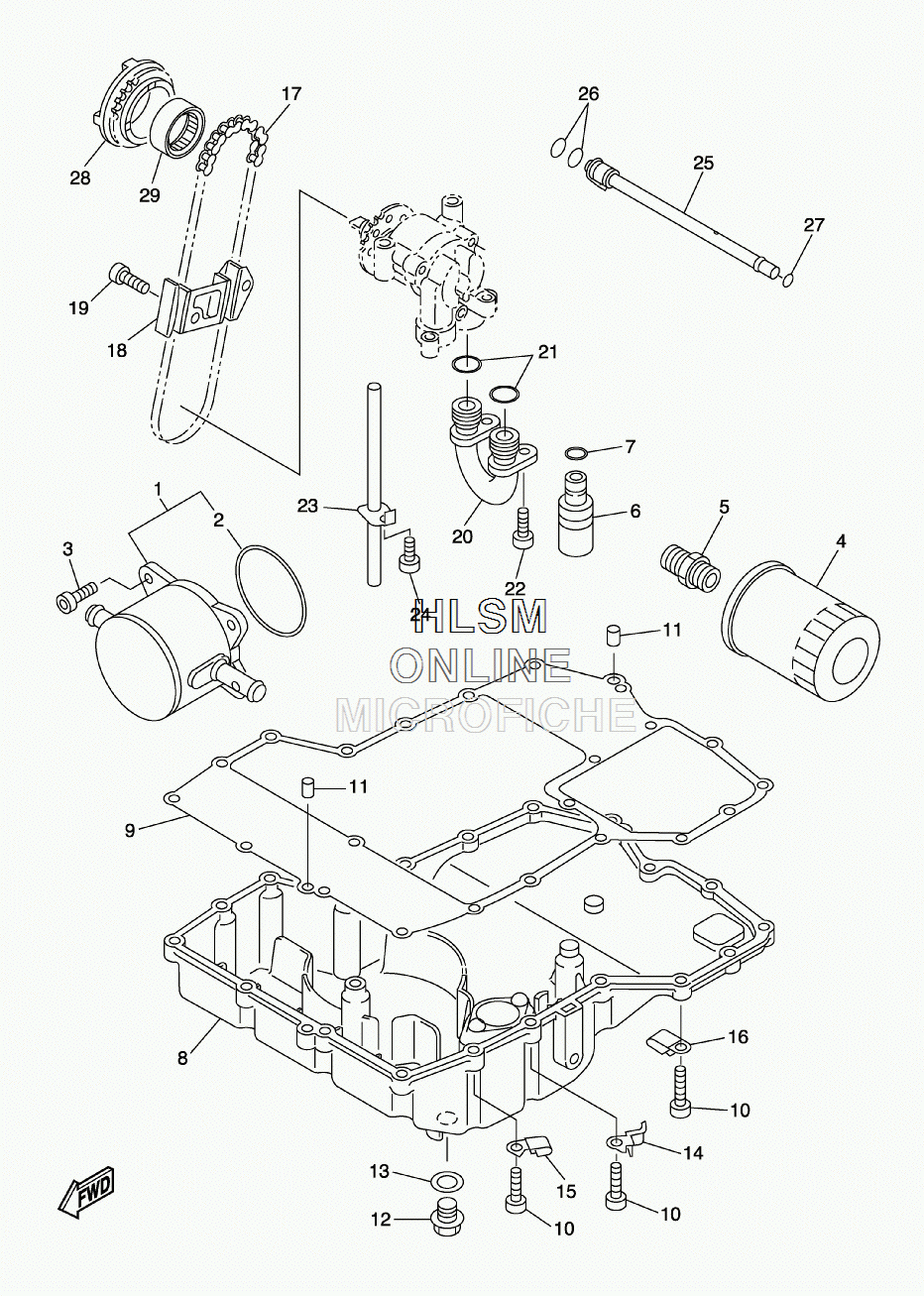

OIL COOLER для Yamaha FJR1300A - 2008 года выпуска
-
№АртикулНазвание
-
15JW-13470-10-00 OIL COOLER ASSYOIL COOLER ASSY
-
25JW-13473-00-00 ...O-RING...O-RING
-
390110-06164-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
45JW-13440-00-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
590401-20145-00 BOLT, UNIONBOLT, UNION
-
65PW-13490-00-00 RELIEF VALVE ASSYRELIEF VALVE ASSY
-
793210-15566-00 O-RINGO-RING
-
85JW-13417-00-00 COVER, STRAINERCOVER, STRAINER
-
95JW-13414-01-00 GASKET, STRAINER COVERGASKET, STRAINER COVER
-
1091312-06025-00 BOLT (4MY)BOLT (4MY)
-
1199530-08012-00 PIN, DOWELPIN, DOWEL
-
1290340-14132-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
13214-11198-01-00 GASKETGASKET
-
1490465-10041-00 CLAMPCLAMP
-
1590465-08122-00 CLAMP (51Y)CLAMP (51Y)
-
1690462-08039-00 CLAMPCLAMP
-
1794581-85078-00 CHAINCHAIN
-
185JW-13898-00-00 HOLDERHOLDER
-
1990110-06182-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
202C0-13416-00-00 PIPE, OIL 1PIPE, OIL 1
-
2193210-14003-00 O-RINGO-RING
-
2290110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
235JW-13161-00-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
2490110-06182-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
255JW-1316E-00-00 PIPE, DELIVERY 5PIPE, DELIVERY 5
-
2693210-09165-00 O-RINGO-RING
-
2793210-06667-00 O-RINGO-RING
-
285JW-13354-00-00 SPROCKET, DRIVESPROCKET, DRIVE
-
2993315-23607-00 BEARINGBEARING
