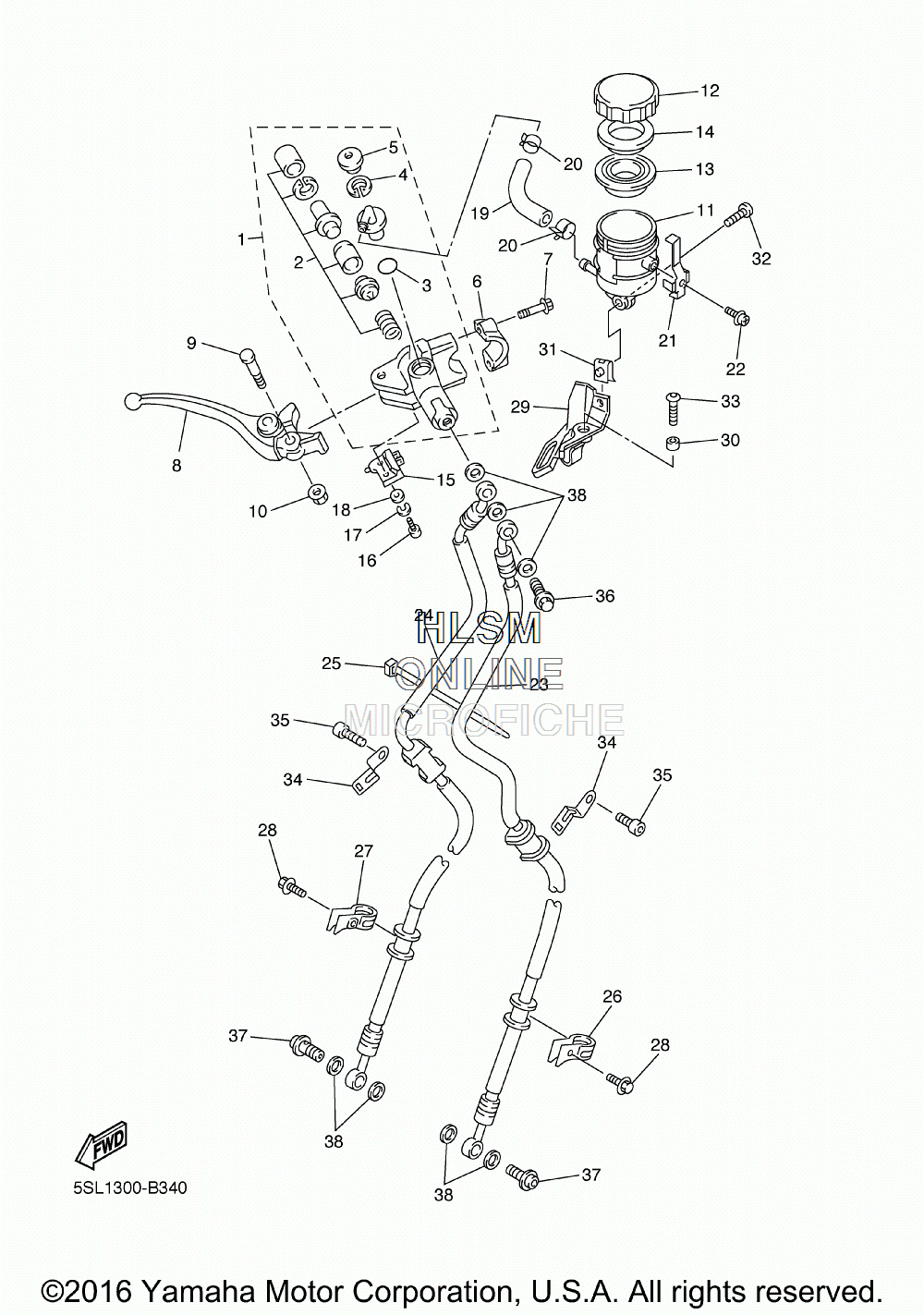

BRAKE - FRONT MASTER CYLINDER для Yamaha R6S [ YZFR6SX/C] (6P67/6P68) - 2008 года выпуска
-
№АртикулНазвание
-
15EB-W2587-01-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
25MT-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
393210-15620-00 ...O-RING...O-RING
-
42VN-25866-00-00 ...CIRCLIP...CIRCLIP
-
53FV-2589A-00-00 ......COVER, DUST......COVER, DUST
-
656A-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
75EB-26332-00-00 BOLTBOLT
-
85SL-83922-00-00 LEVER 2LEVER 2
-
93FV-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
1095606-06100-00 NUT, UNUT, U
-
115SL-25894-10-00 TANK, RESERVOIRTANK, RESERVOIR
-
123GM-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
133FV-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
142J2-25855-50-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
154HM-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1698502-04012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1792902-04100-00 WASHER, SPRINGWASHER, SPRING
-
1892902-04600-00 WASHER, PLATEWASHER, PLATE
-
195PW-2582F-00-00 HOSEHOSE
-
203PA-24356-00-00 CLIP, PIPE 1CLIP, PIPE 1
-
213FV-2589G-00-00 HOLDERHOLDER
-
223GM-2589H-00-00 ...SCREW...SCREW
-
235SL-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
245SL-25873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
253MA-82591-00-00 BANDBAND
-
265SL-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
275SL-25887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2890105-06041-00 BOLT, FLANGEBOLT, FLANGE
-
295SL-26292-00-00 STAYSTAY
-
3090387-06057-00 COLLARCOLLAR
-
3190183-050A0-00 NUT, SPRINGNUT, SPRING
-
3290111-05026-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3390111-06041-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
345SL-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
3591317-06012-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
3690401-10160-00 BOLT, UNIONBOLT, UNION
-
3790401-10172-00 BOLT, UNIONBOLT, UNION
-
3890201-10118-00 WASHER, PLATEWASHER, PLATE
