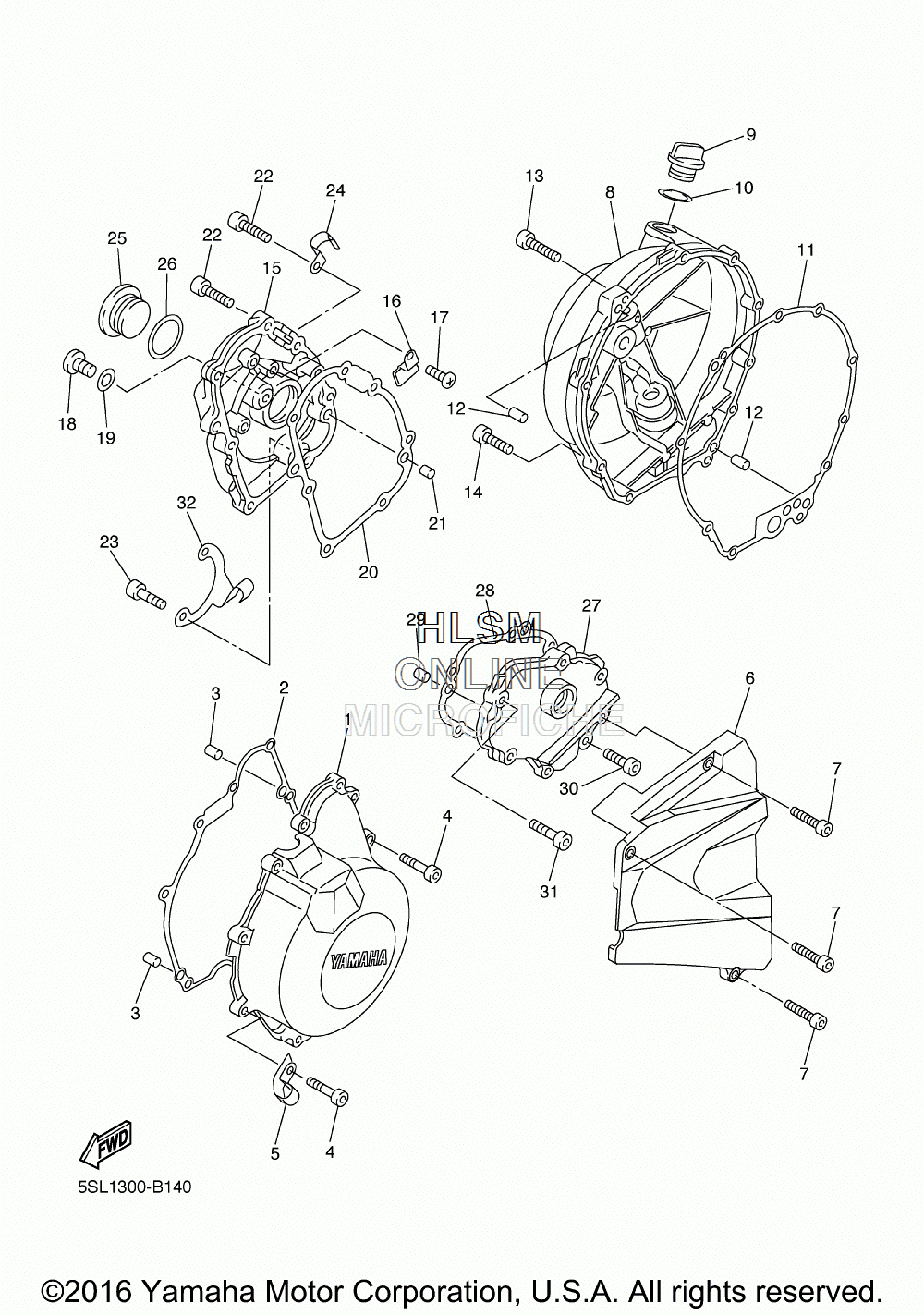

CRANKCASE COVER для Yamaha R6S [ YZFR6SX/C] (6P67/6P68) - 2008 года выпуска
-
№АртикулНазвание
-
15SL-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
25VX-15451-01-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
399530-08012-00 PIN, DOWELPIN, DOWEL
-
491314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
590461-10006-00 CLAMPCLAMP
-
65SL-15418-00-00 COVER, CHAIN CASECOVER, CHAIN CASE
-
791314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
85SL-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
93F9-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
1093210-27194-00 O-RINGO-RING
-
115SL-15461-01-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
1293608-17263-00 PIN, DOWELPIN, DOWEL
-
1390109-06031-00 BOLTBOLT
-
1490110-06071-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
155SL-15416-00-00 COVER, OIL PUMPCOVER, OIL PUMP
-
1690465-14011-00 CLAMPCLAMP
-
1790157-06077-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1892014-08014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1990430-08143-00 GASKETGASKET
-
205SL-15456-01-00 GASKET, OIL PUMP COVER 1GASKET, OIL PUMP COVER 1
-
2199530-08012-00 PIN, DOWELPIN, DOWEL
-
2290109-06014-00 BOLTBOLT
-
2390109-06015-00 BOLTBOLT
-
2490465-08395-00 CLAMPCLAMP
-
2590340-32004-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
2693210-32172-00 O-RINGO-RING
-
275SL-15425-00-00 COVER, GENERATOR 2COVER, GENERATOR 2
-
285SL-15463-01-00 GASKET, COVER PINION 2GASKET, COVER PINION 2
-
2999530-08012-00 PIN, DOWELPIN, DOWEL
-
3090109-06014-00 BOLTBOLT
-
3190109-06015-00 BOLTBOLT
-
325EB-15441-00-00 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
