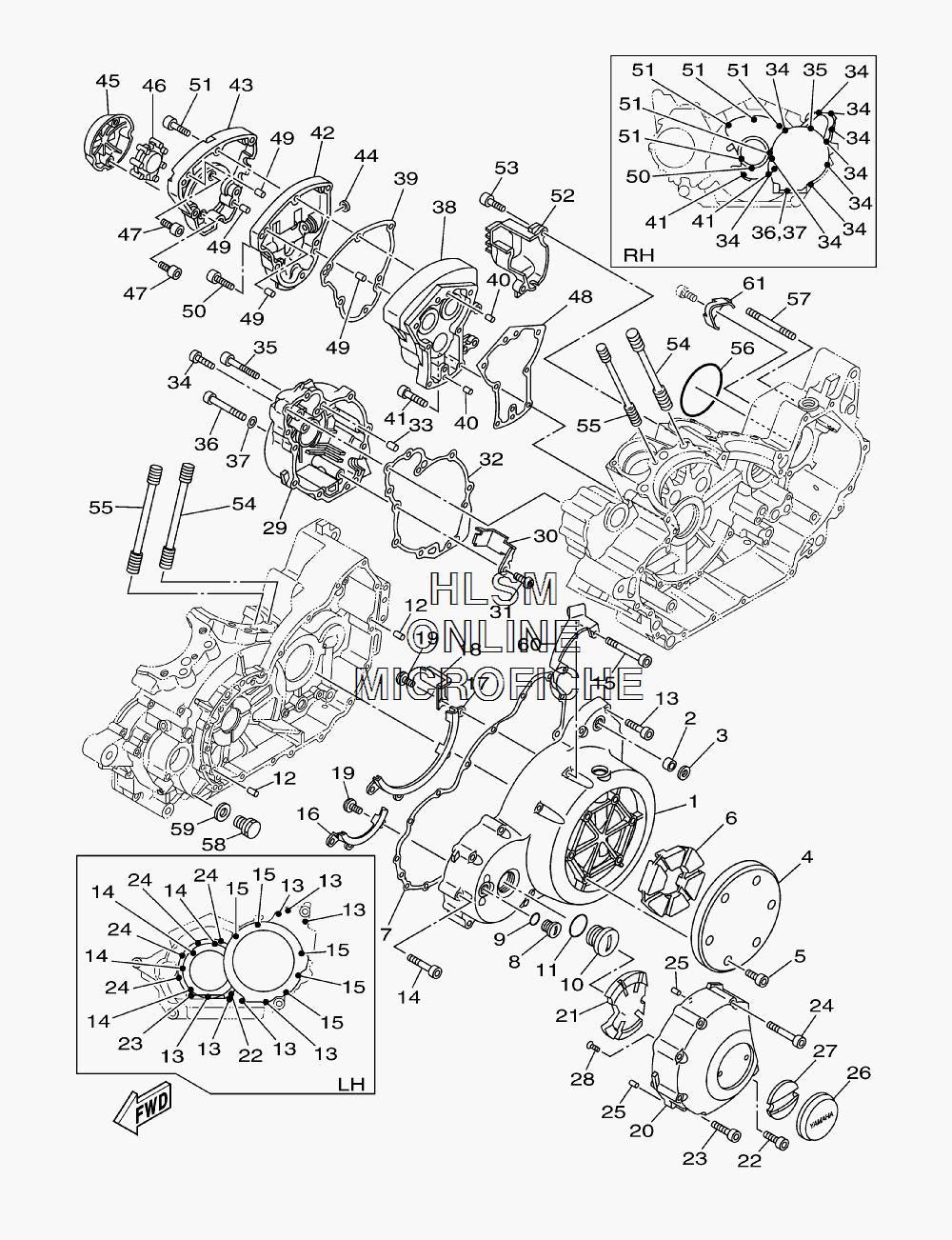

CRANKCASE COVER для Yamaha ROAD STAR MIDNIGHT WARRIOR - 2008 года выпуска
-
№АртикулНазвание
-
15PX-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
293317-11287-00 BEARINGBEARING
-
393102-12224-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
45PX-15414-10-00 COVER, AIR CLEANERCOVER, AIR CLEANER
-
591314-06016-00 BOLT, SOCKETBOLT, SOCKET
-
65PX-1542A-00-00 DAMPER 1DAMPER 1
-
75PX-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
890340-14117-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
993210-14369-00 O-RINGO-RING
-
1090340-32080-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1193210-32172-00 O-RINGO-RING
-
1299530-10114-00 PIN, DOWELPIN, DOWEL
-
1391314-06035-00 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
1491314-06045-00 BOLT, SOCKETBOLT, SOCKET
-
1591314-06070-00 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
164WM-15142-00-00 GUIDE 1GUIDE 1
-
174WM-15143-00-00 GUIDEGUIDE
-
185YU-15484-00-00 CLAMP 2CLAMP 2
-
1990149-06004-00 SCREWSCREW
-
205PX-15423-00-00 COVER 2COVER 2
-
214WM-15326-00-00 DAMPER, ENGINE MOUNT 2DAMPER, ENGINE MOUNT 2
-
2291314-06025-00 BOLT (3DM)BOLT (3DM)
-
2391314-06035-00 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
2491314-06060-00 BOLT, SOCKETBOLT, SOCKET
-
2591808-16023-00 PIN, DOWELPIN, DOWEL
-
265PX-15425-00-00 COVER, GENERATOR 2COVER, GENERATOR 2
-
274WM-15316-00-00 DAMPER, ENGINE MOUNT 1DAMPER, ENGINE MOUNT 1
-
2890151-05001-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
295PX-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
304WM-15377-00-00 GUIDE, INLETGUIDE, INLET
-
3190149-06004-00 SCREWSCREW
-
325PX-15461-02-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
3399530-10114-00 PIN, DOWELPIN, DOWEL
-
3491314-06030-00 BOLT,SOCKETBOLT,SOCKET
-
3591314-06050-00 BOLT (3JP)BOLT (3JP)
-
3691314-06065-00 BOLT, SOCKETBOLT, SOCKET
-
3790430-06014-00 GASKETGASKET
-
385PX-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
395YU-15462-01-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
4093606-10227-00 PIN, DOWELPIN, DOWEL
-
4191314-06035-00 BOLT,SOCKET HEADBOLT,SOCKET HEAD
-
425PX-12278-00-00 COVER, DECOMP.COVER, DECOMP.
-
435PX-15429-00-00 COVER, SHIFTERCOVER, SHIFTER
-
4493104-08089-00 OIL SEAL, SDO-TYPEOIL SEAL, SDO-TYPE
-
455PX-15427-00-00 COVER, CAP 2COVER, CAP 2
-
464WM-15335-00-00 DAMPER 3DAMPER 3
-
4792017-06010-00 SCREW (4JY)SCREW (4JY)
-
485PX-12286-00-00 GASKET, DECOMPRESSIONGASKET, DECOMPRESSION
-
4993606-10227-00 PIN, DOWELPIN, DOWEL
-
5091314-06025-00 BOLT (3DM)BOLT (3DM)
-
5191314-06040-00 BOLT,SOCKETBOLT,SOCKET
-
525PX-12275-00-00 COVER, DECOMP LEVERCOVER, DECOMP LEVER
-
5391314-06025-00 BOLT (3DM)BOLT (3DM)
-
5490116-12240-00 BOLT, STUDBOLT, STUD
-
5590116-10344-00 BOLT, STUDBOLT, STUD
-
5693210-750A1-00 O-RINGO-RING
-
5790116-08065-00 BOLT, STUDBOLT, STUD
-
5890340-14132-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
59214-11198-01-00 GASKETGASKET
-
605PX-15441-00-00 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
-
615PX-15413-00-00 COVERCOVER
