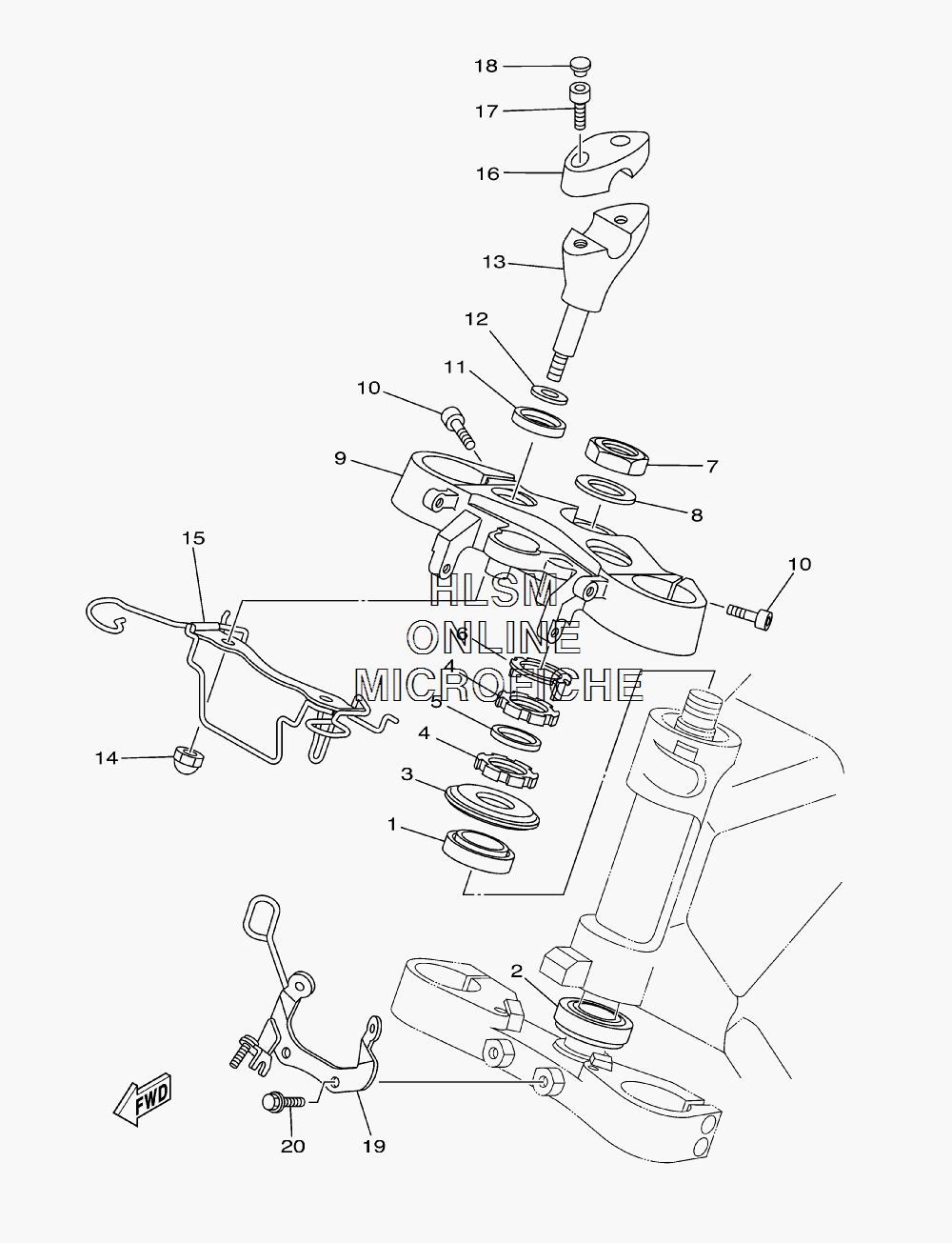

STEERING для Yamaha ROAD STAR MIDNIGHT WARRIOR - 2008 года выпуска
-
№АртикулНазвание
-
193332-00091-00 BEARINGBEARING
-
293332-00008-00 BEARING, TAPRD #32BEARING, TAPRD #32
-
34XV-23415-01-00 COVER, BALL RACE 1COVER, BALL RACE 1
-
490179-30691-00 NUTNUT
-
590202-30235-00 WASHER, PLATEWASHER, PLATE
-
64XV-23418-00-00 WASHER, SPECIALWASHER, SPECIAL
-
790170-28419-00 NUTNUT
-
890201-281U8-00 WASHER, PLATEWASHER, PLATE
-
95PX-W2341-10-00 CROWN, HANDLECROWN, HANDLE
-
1091314-08025-00 BOLT, SOCKETBOLT, SOCKET
-
113DM-23445-00-00 DAMPERDAMPER
-
1290201-14220-00 WASHER, PLATEWASHER, PLATE
-
135PX-23442-10-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
1490176-12052-00 NUT, CROWNNUT, CROWN
-
155PX-23389-00-00 GUIDE, CABLEGUIDE, CABLE
-
164NK-23441-10-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
1791314-08025-00 BOLT, SOCKETBOLT, SOCKET
-
1890338-08163-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
195PX-23174-00-00 STAY, HEADLIGHTSTAY, HEADLIGHT
-
2095027-08016-00 BOLT,SMALL FLANGEBOLT,SMALL FLANGE
