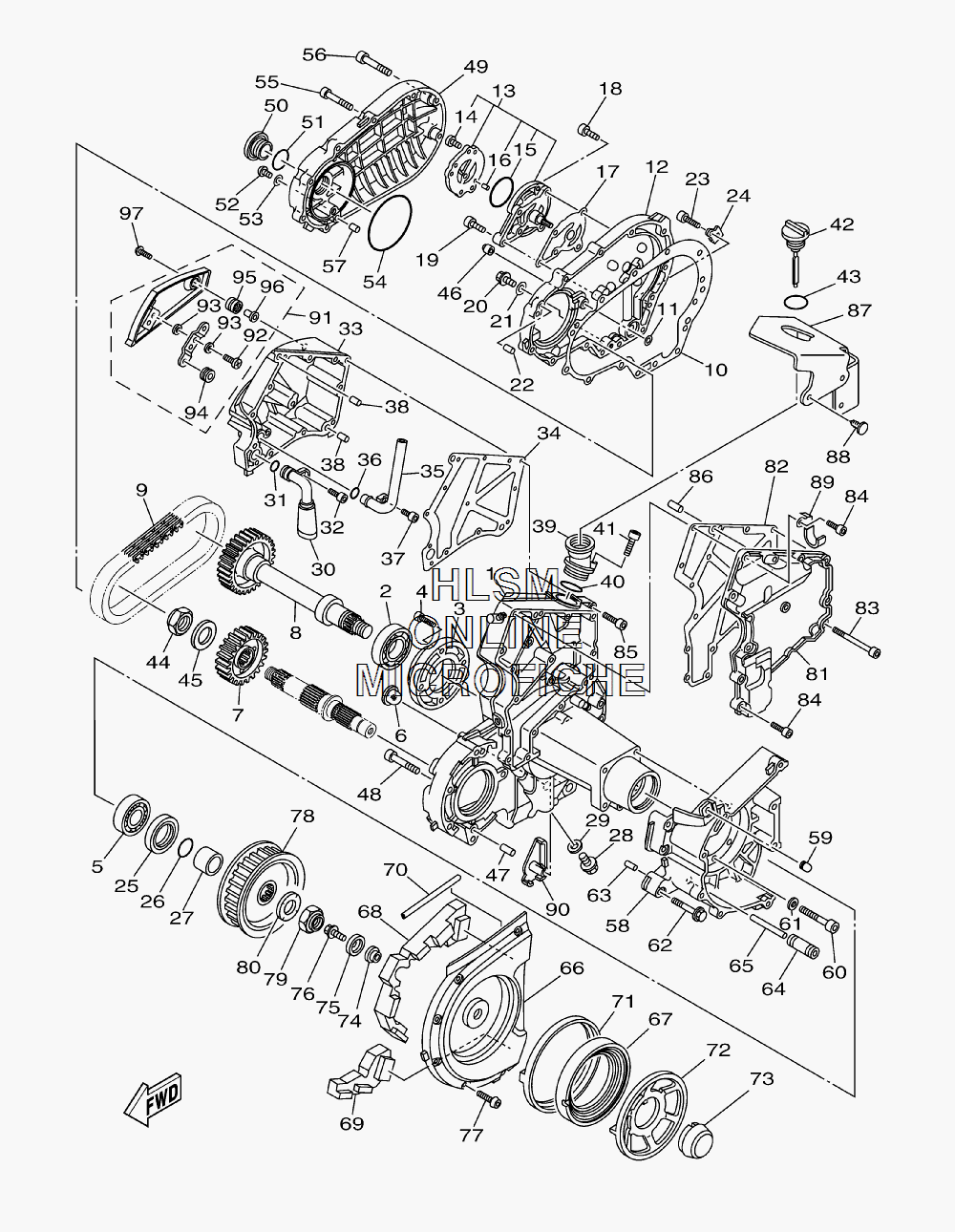

MIDDLE DRIVE GEAR для Yamaha ROAD STAR MIDNIGHT WARRIOR - 2008 года выпуска
-
№АртикулНазвание
-
15PX-17541-00-00 CASE, TRANSFER 1CASE, TRANSFER 1
-
293306-00907-00 BEARINGBEARING
-
35PX-17521-10-00 HOUSING, BEARINGHOUSING, BEARING
-
490110-06039-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
593306-20601-00 BEARINGBEARING
-
64WM-13286-00-00 CLEANERCLEANER
-
74WM-17682-00-00 SPROCKET, CHAIN DRIVESPROCKET, CHAIN DRIVE
-
85PX-1755A-10-00 MIDDLE DRIVEN SHAFT ASSYMIDDLE DRIVEN SHAFT ASSY
-
94WM-16139-00-00 CHAIN, PRIMARYCHAIN, PRIMARY
-
105PX-17929-00-00 GASKET 1GASKET 1
-
114WM-17931-00-00 GASKET 2GASKET 2
-
125PX-17542-00-00 CASE, TRANSFER 2CASE, TRANSFER 2
-
135PX-13100-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
1490110-06004-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
1593210-48214-00 ...O-RING...O-RING
-
1693603-07073-00 ...PIN, DOWEL...PIN, DOWEL
-
174WM-13116-00-00 GASKET, PUMP CASEGASKET, PUMP CASE
-
1890110-06047-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1990110-06039-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2095814-08016-00 BOLT, FLANGEBOLT, FLANGE
-
2190430-08119-00 GASKETGASKET
-
2299530-10114-00 PIN, DOWELPIN, DOWEL
-
2391314-06025-00 BOLT (3DM)BOLT (3DM)
-
245PX-17691-00-00 PLATE 3PLATE 3
-
2593102-40330-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
2693210-27672-00 O-RINGO-RING
-
2790387-3003P-00 COLLAR (4KG)COLLAR (4KG)
-
2890340-14132-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
29214-11198-01-00 GASKETGASKET
-
305PX-13421-00-00 STRAINER 2STRAINER 2
-
3193210-14003-00 O-RINGO-RING
-
3291317-06012-00 BOLT (4MY)BOLT (4MY)
-
335PX-17631-00-00 CAPCAP
-
345PX-17932-02-00 GASKET, 3GASKET, 3
-
355PX-13582-00-00 PIPEPIPE
-
3693210-14003-00 O-RINGO-RING
-
3791317-06012-00 BOLT (4MY)BOLT (4MY)
-
3899530-10114-00 PIN, DOWELPIN, DOWEL
-
395PX-13132-00-00 JOINTJOINT
-
4093210-35512-00 O-RINGO-RING
-
4190110-06039-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
425PX-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
4393210-35512-00 O-RINGO-RING
-
4490179-22006-00 NUTNUT
-
4590208-22002-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
4690179-08004-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
4799530-10114-00 PIN, DOWELPIN, DOWEL
-
4891314-08050-00 BOLT, SOCKETBOLT, SOCKET
-
495PX-15779-00-00 COVERCOVER
-
5090340-32002-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
5193210-32172-00 O-RINGO-RING
-
5292014-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5390430-06016-00 GASKETGASKET
-
5493210-92448-00 O-RINGO-RING
-
5591314-06050-00 BOLT (3JP)BOLT (3JP)
-
5691314-08055-00 BOLTBOLT
-
5799530-10114-00 PIN, DOWELPIN, DOWEL
-
585PX-17613-00-00 STAYSTAY
-
595PX-17654-00-00 SPACER 1SPACER 1
-
6091317-10050-00 BOLT,SOCKETBOLT,SOCKET
-
6192907-10600-00 WASHER (6TA)WASHER (6TA)
-
6295814-10050-00 BOLT, FLANGEBOLT, FLANGE
-
6399480-10018-00 PINPIN
-
644WM-17653-00-00 SLIDERSLIDER
-
6593606-76259-00 PIN, DOWELPIN, DOWEL
-
665PX-17076-10-00 COVERCOVER
-
675PX-17655-00-00 DAMPER, SLIDERDAMPER, SLIDER
-
685PX-1542B-00-00 DAMPER 2DAMPER 2
-
695PX-1542C-00-00 DAMPER 3DAMPER 3
-
705PX-15491-00-00 PROTECTORPROTECTOR
-
715PX-15449-00-00 RING, RUBBERRING, RUBBER
-
725PX-17665-10-00 PLATE 1PLATE 1
-
735PX-17675-10-00 PLATE 2PLATE 2
-
744H7-15486-00-00 GROMMETGROMMET
-
7590209-06096-00 WASHER, SPEC'L SHAPEWASHER, SPEC'L SHAPE
-
7695807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
7791314-06030-00 BOLT, SOCKETBOLT, SOCKET
-
785PX-17651-00-00 PULLEY, BELTPULLEY, BELT
-
7990179-22006-00 NUTNUT
-
8090208-22002-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
815PX-17538-00-00 CAP, HOUSINGCAP, HOUSING
-
825PX-17933-02-00 GASKET, 4GASKET, 4
-
8391317-06085-00 BOLT, SOCKETBOLT, SOCKET
-
8491317-06025-00 BOLT (4MY)BOLT (4MY)
-
8591317-06045-00 BOLT (4MY)BOLT (4MY)
-
8699530-10114-00 PIN, DOWELPIN, DOWEL
-
875PX-1763A-00-00 PLATE, CAPPLATE, CAP
-
8890269-07005-00 RIVETRIVET
-
8990465-08038-00 CLAMPCLAMP
-
905PX-17446-00-00 PLATEPLATE
-
915PX-17471-00-00 PLATE, COVERPLATE, COVER
-
9290154-06008-00 ...SCREW, BINDING...SCREW, BINDING
-
9390201-05015-00 ...WASHER, PLATE...WASHER, PLATE
-
9490480-13007-00 ...GROMMET...GROMMET
-
9590480-13006-00 ...GROMMET...GROMMET
-
9690387-07007-00 ...COLLAR...COLLAR
-
9790111-06039-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
