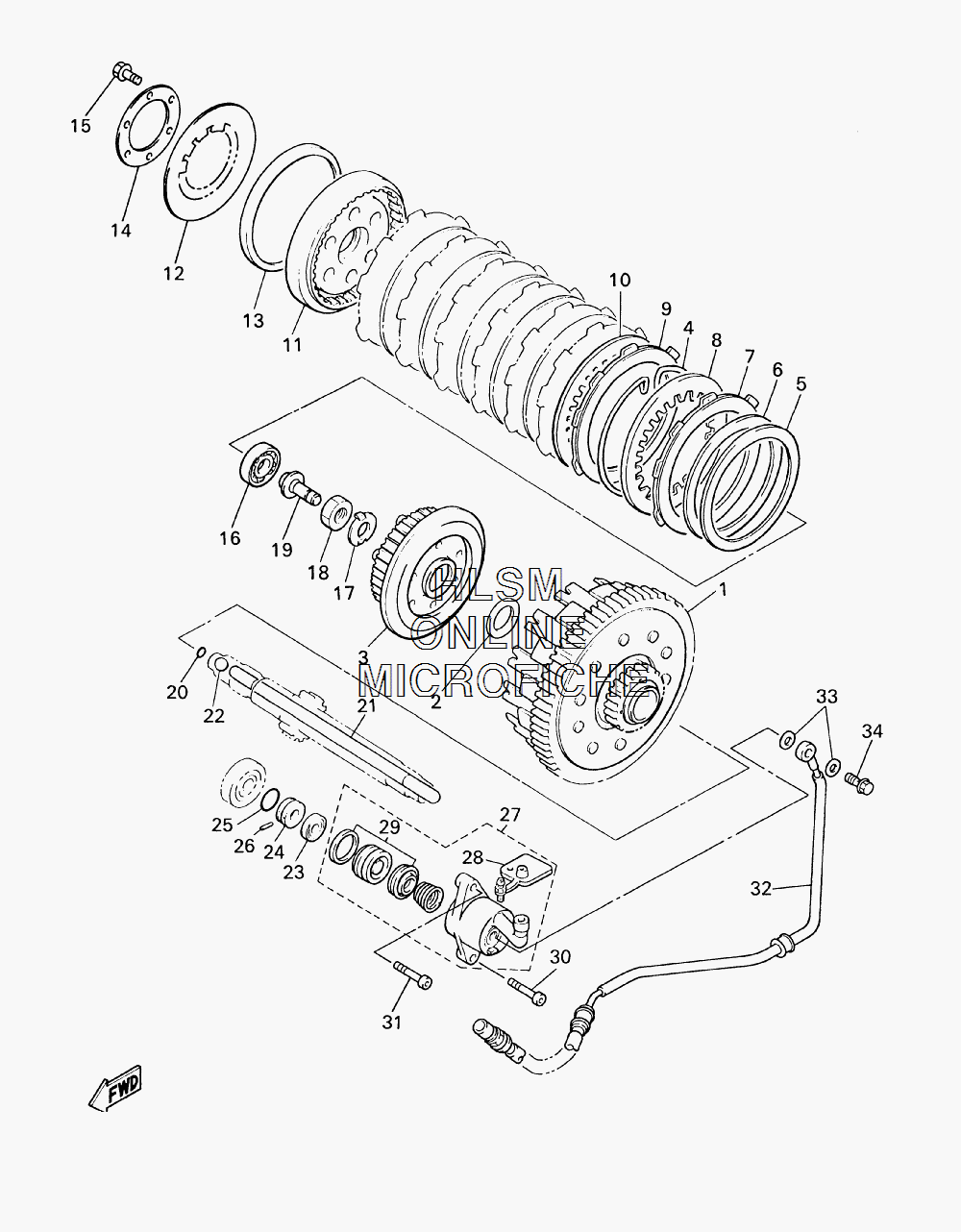

CLUTCH для Yamaha ROYAL STAR TOUR DELUXE S - 2008 года выпуска
-
№АртикулНазвание
-
126H-16150-10-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
226H-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
34XY-16371-00-00 BOSS, CLUTCHBOSS, CLUTCH
-
426H-16385-00-00 RING, CLUTCH BOSSRING, CLUTCH BOSS
-
526H-16384-00-00 PLATE, SEATPLATE, SEAT
-
61FK-16383-00-00 SPRING, CLUTCH BOSSSPRING, CLUTCH BOSS
-
726H-16321-01-00 PLATE, FRICTIONPLATE, FRICTION
-
826H-16324-00-00 PLATE, CLUTCH 1PLATE, CLUTCH 1
-
926H-16307-01-00 PLATE, FRICTION 3PLATE, FRICTION 3
-
1026H-16324-00-00 PLATE, CLUTCH 1PLATE, CLUTCH 1
-
111FK-16351-00-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
121FK-16334-00-00 SPRING, CLUTCH 2SPRING, CLUTCH 2
-
131FK-16335-00-00 HOUSING, SPRINGHOUSING, SPRING
-
141FK-16352-00-00 PLATE, PRESSURE 2PLATE, PRESSURE 2
-
1597007-06025-00 BOLTBOLT
-
1693306-00304-00 BEARINGBEARING
-
1790215-25218-00 WASHER, LOCKWASHER, LOCK
-
1890170-20323-00 NUT,HEXAGONNUT,HEXAGON
-
194KG-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
2093210-06632-00 O-RINGO-RING
-
214NK-16357-00-00 ROD, PUSH 2ROD, PUSH 2
-
2293511-32017-00 BALL 11/32BALL 11/32
-
2393109-08061-00 OIL SEAL, SDO-TYPEOIL SEAL, SDO-TYPE
-
2426H-16399-00-00 GUIDE, PUSH RODGUIDE, PUSH ROD
-
2593210-18322-00 O-RINGO-RING
-
2693603-07073-00 PIN, DOWELPIN, DOWEL
-
271FK-16381-11-00 PUSH LEVER COMP.PUSH LEVER COMP.
-
281NL-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
2926H-W0098-00-00 ...PUSH LEVER SEAL KIT...PUSH LEVER SEAL KIT
-
3090110-06035-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3190110-06243-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
324NK-1638A-00-00 PIPE, CLUTCH 1PIPE, CLUTCH 1
-
3390201-10118-00 WASHER, PLATEWASHER, PLATE
-
3490401-10159-00 BOLT,UNION (3GM)BOLT,UNION (3GM)
