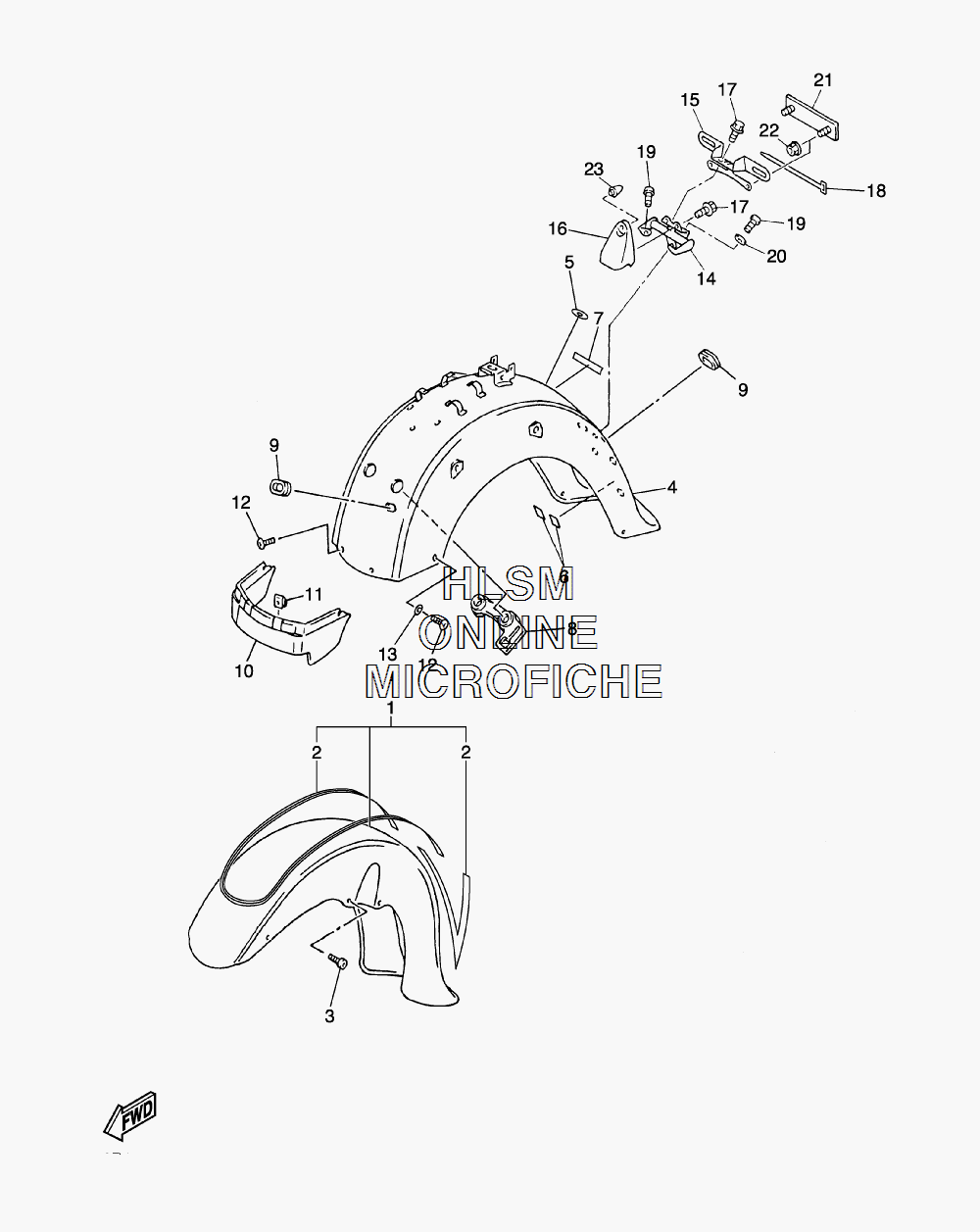

FENDER - FRONT / REAR для Yamaha ROYAL STAR TOUR DELUXE S - 2008 года выпуска
-
№АртикулНазвание
-
14NK-Y2150-P0-5Y FRONT FENDER ASSY (DBNM8/S3)FRONT FENDER ASSY (DBNM8/S3)
-
21D6-21570-50-00 ...GRAPHIC SET, FRONT FENDER...GRAPHIC SET, FRONT FENDER
-
391314-08025-00 BOLT, SOCKETBOLT, SOCKET
-
45EJ-21610-00-P4 REAR FENDER COMP. (DBNM8)REAR FENDER COMP. (DBNM8)
-
54NK-21735-00-00 SEAL 2SEAL 2
-
63MA-27491-00-00 PROTECTORPROTECTOR
-
71D6-2153E-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
84NK-21649-00-00 DAMPERDAMPER
-
990480-15061-00 GROMMETGROMMET
-
104NK-21621-00-PA FLAP (DBNM8)FLAP (DBNM8)
-
1190183-06053-00 NUT, SPRING (4ES)NUT, SPRING (4ES)
-
1290110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1390202-06170-00 WASHER, PLATEWASHER, PLATE
-
144XY-2317W-00-00 STAY, 9STAY, 9
-
155BN-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
161D6-84703-00-00 BRACKETBRACKET
-
1795027-06010-00 BOLT, FLANGE (4MY)BOLT, FLANGE (4MY)
-
1890464-25002-00 CLAMPCLAMP
-
1995024-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2090201-06043-00 WASHER, PLATEWASHER, PLATE
-
211FK-85130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
2295707-05500-00 NUT, FLANGE 3GMNUT, FLANGE 3GM
-
2342U-21639-00-00 DAMPER 2DAMPER 2
