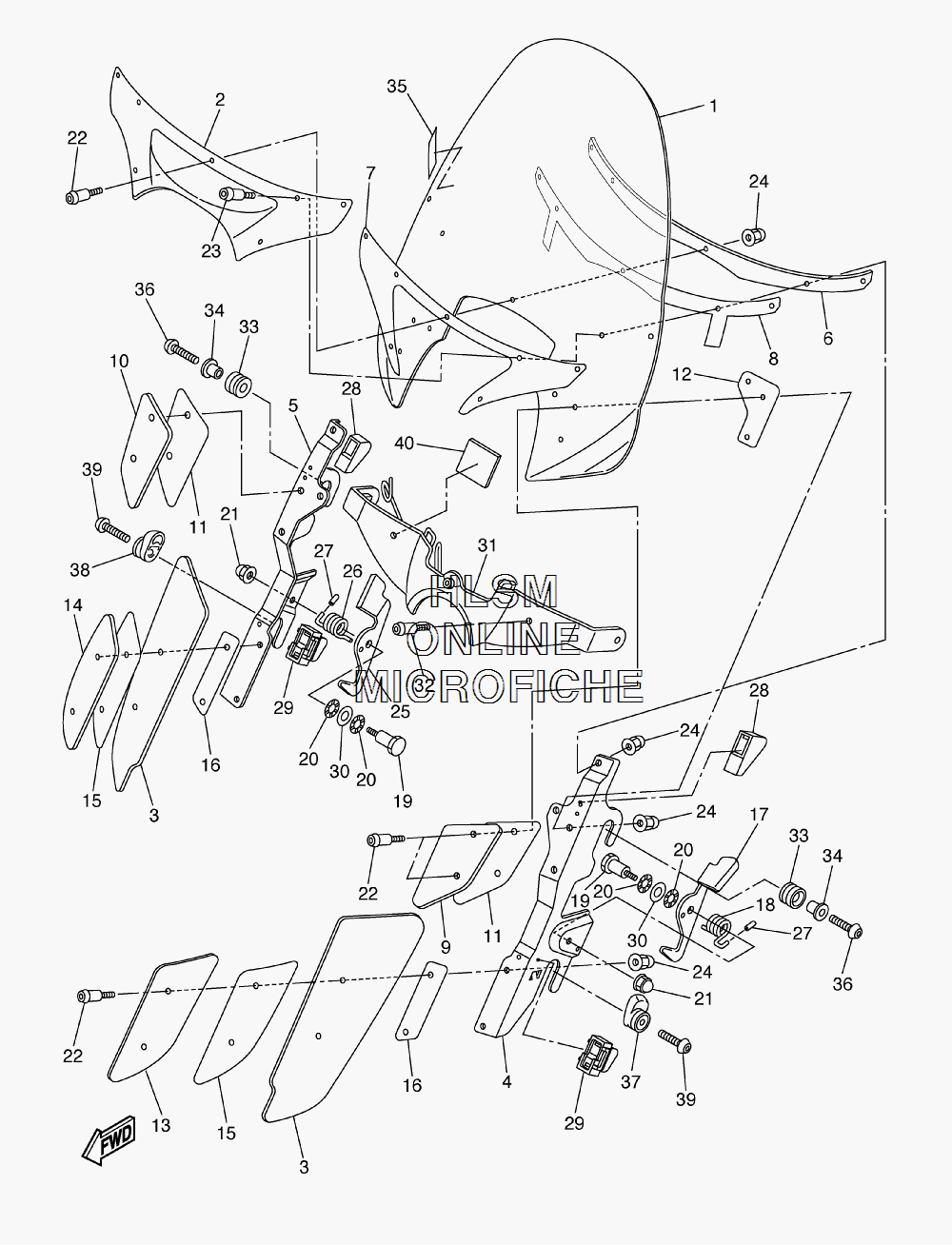

COWLING для Yamaha ROYAL STAR TOUR DELUXE S - 2008 года выпуска
-
№АртикулНазвание
-
11D6-2837U-00-00 SCREENSCREEN
-
21D6-28336-00-00 PLATEPLATE
-
31D6-2835U-01-00 PANEL 1PANEL 1
-
41D6-2836A-10-00 BRACKET 1BRACKET 1
-
51D6-2836E-10-00 BRACKET 2BRACKET 2
-
61D6-28337-00-00 HOLDERHOLDER
-
71D6-2837J-00-00 DAMPER 5DAMPER 5
-
81D6-28345-00-00 MOLE 1MOLE 1
-
91D6-2836C-00-00 EMBLEMEMBLEM
-
101D6-2837C-00-00 EMBLEMEMBLEM
-
111D6-2837K-00-00 DAMPER 6DAMPER 6
-
121D6-28346-00-00 MOLE 2MOLE 2
-
131D6-28396-00-00 PLATE 1PLATE 1
-
141D6-28397-00-00 PLATE 2PLATE 2
-
151D6-2834E-00-00 DAMPER 3DAMPER 3
-
161D6-28347-00-00 MOLE 3MOLE 3
-
171D6-2837G-00-00 LOCK 1LOCK 1
-
181D6-28388-00-00 SPRINGSPRING
-
191D6-28331-00-00 BOLT, LEG SHIELDBOLT, LEG SHIELD
-
2090206-12M00-00 WASHER, WAVEWASHER, WAVE
-
2190176-06041-00 NUT, CROWNNUT, CROWN
-
221D6-28333-09-00 BOLTBOLT
-
231D6-28374-09-00 BOLT, COWLINGBOLT, COWLING
-
2490176-05051-00 NUT, CROWN (47X)NUT, CROWN (47X)
-
251D6-2837H-00-00 LOCK 2LOCK 2
-
261D6-2838C-00-00 SPRG 2SPRG 2
-
271D6-2834V-00-00 PROTECTOR 1PROTECTOR 1
-
281D6-283C1-00-00 STOPPER, RUBBER 1STOPPER, RUBBER 1
-
291D6-283C2-00-00 STOPPER, RUBBER 2STOPPER, RUBBER 2
-
3090201-12181-00 WASHER, PLATEWASHER, PLATE
-
311D6-28356-01-00 STAY 1STAY 1
-
3290111-10016-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
331D6-28372-00-00 DAMPERDAMPER
-
3490387-08025-00 COLLARCOLLAR
-
355JW-2835Y-00-00 LABEL, CAUTIONLABEL, CAUTION
-
3690111-08009-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
371D6-2836T-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
381D6-2836U-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
3990111-08009-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
401D6-2834W-00-00 PROTECTOR 2PROTECTOR 2
