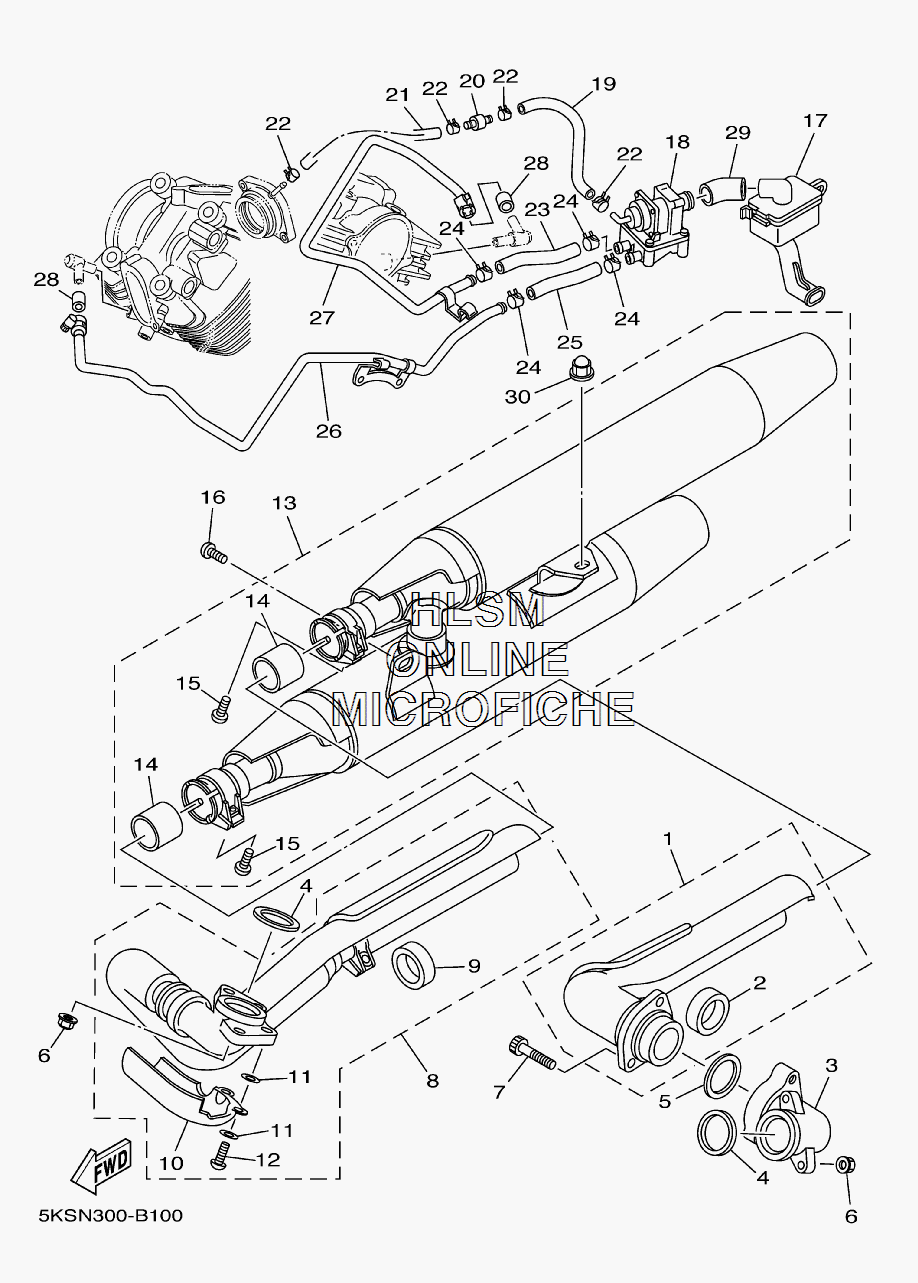

EXHAUST для Yamaha V STAR 1100 CUSTOM - 2008 года выпуска
-
№АртикулНазвание
-
15EL-14610-10-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
24NK-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
35EL-14615-01-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
43EG-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
54TR-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
690185-08097-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
791314-08035-00 BOLTBOLT
-
85EL-14620-00-00 EXHAUST PIPE ASSY 2EXHAUST PIPE ASSY 2
-
94NK-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
105EL-14624-00-00 ...COVER, EXHAUST...COVER, EXHAUST
-
1190202-05191-00 ...WASHER, PLATE...WASHER, PLATE
-
1298904-06014-00 ...SCREW, BIND...SCREW, BIND
-
135YS-14710-00-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
145KS-14755-00-00 ...GASKET, SILENCER...GASKET, SILENCER
-
1592014-08025-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
1692017-10020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
175EL-14806-00-00 AIR FILTERAIR FILTER
-
185EL-14803-10-00 AIR INDUCTION SYSTEM ASSYAIR INDUCTION SYSTEM ASSY
-
195EL-13544-01-00 HOSE, VACUUM SENSING 2HOSE, VACUUM SENSING 2
-
2041R-14489-00-00 NOZZLENOZZLE
-
215EL-13542-00-00 HOSE, VACUUM SENSING 1HOSE, VACUUM SENSING 1
-
2290467-08092-00 CLIP, SCISSORCLIP, SCISSOR
-
235EL-14882-00-00 HOSE, BEND 2HOSE, BEND 2
-
2490468-08104-00 CLIPCLIP
-
255EL-14884-00-00 HOSE, BEND 4HOSE, BEND 4
-
265EL-14872-00-00 PIPE 2PIPE 2
-
275EL-14871-00-00 PIPE 1PIPE 1
-
284KM-14714-01-00 GASKET, MUFFLERGASKET, MUFFLER
-
295EL-14881-00-00 HOSE, BEND 1HOSE, BEND 1
-
3090176-10075-00 NUT, CROWNNUT, CROWN
