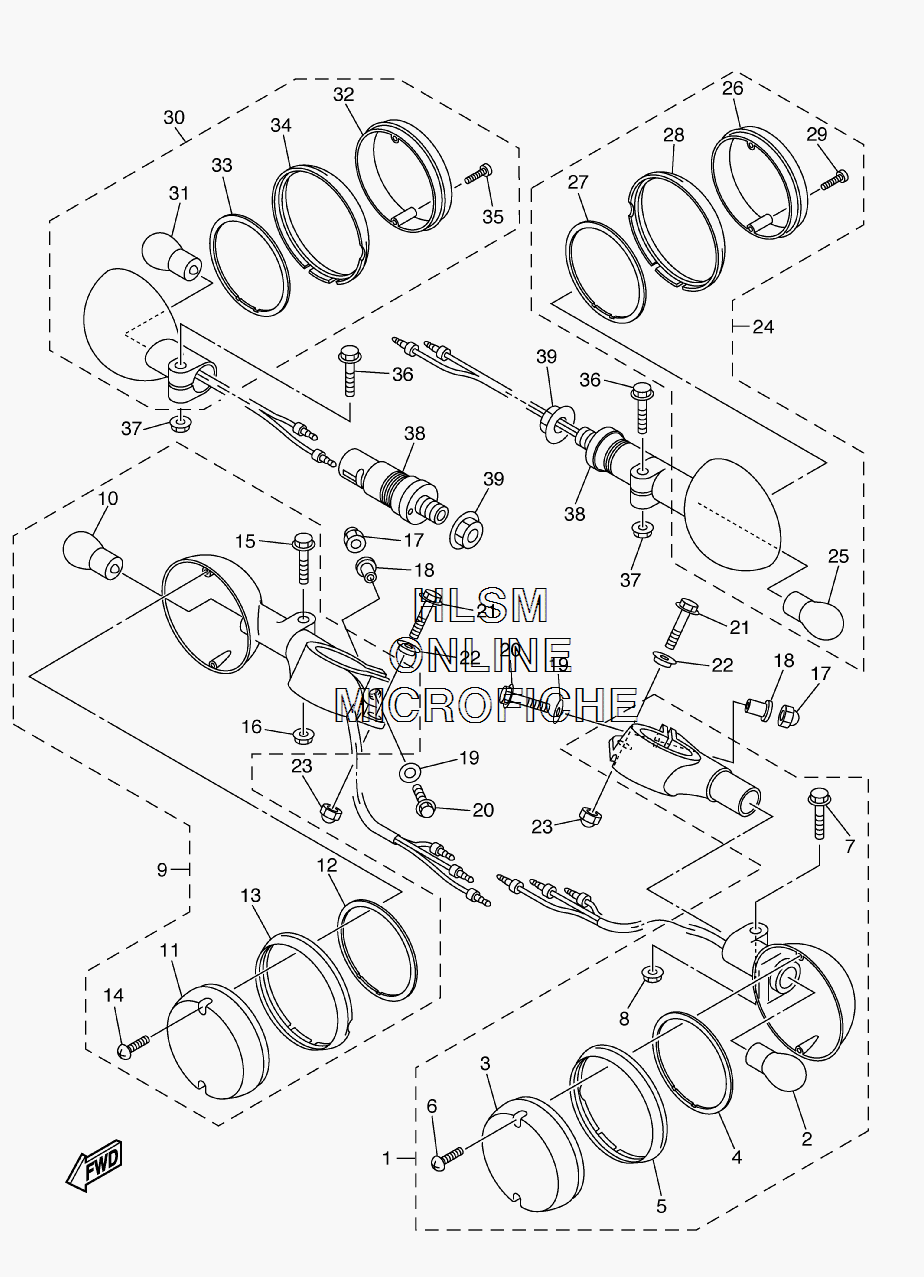

FLASHER LIGHT для Yamaha V STAR 1100 CUSTOM - 2008 года выпуска
-
№АртикулНазвание
-
15PB-83310-10-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
25VN-83311-00-00 ...BULB, FLASHER (12V-23/8W)...BULB, FLASHER (12V-23/8W)
-
35VN-83312-10-00 ...LENS, FLASHER...LENS, FLASHER
-
41D6-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
51D6-83363-00-00 ...LENS, RIM...LENS, RIM
-
657M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
795024-06030-00 ...BOLT, FLANGE...BOLT, FLANGE
-
895704-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
95PB-83320-10-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
105VN-83311-00-00 ...BULB, FLASHER (12V-23/8W)...BULB, FLASHER (12V-23/8W)
-
115VN-83312-20-00 ...LENS, FLASHER...LENS, FLASHER
-
121D6-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
131D6-83363-10-00 ...LENS, RIM...LENS, RIM
-
1457M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
1595024-06030-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1695704-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
1790176-06055-00 NUT, CROWNNUT, CROWN
-
1890387-06076-00 COLLARCOLLAR
-
1990201-06045-00 WASHER, PLATEWASHER, PLATE
-
2095807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2195027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2290560-06244-00 SPACERSPACER
-
2395304-06800-00 NUT, CROWNNUT, CROWN
-
241D6-83330-00-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
255VN-83311-10-00 ...BULB, FLASHER (12V-21W)...BULB, FLASHER (12V-21W)
-
261D6-83312-20-00 ...LENS, FLASHER...LENS, FLASHER
-
271D6-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
281D6-83363-10-00 ...LENS, RIM...LENS, RIM
-
2957M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
301D6-83340-00-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
315VN-83311-10-00 ...BULB, FLASHER (12V-21W)...BULB, FLASHER (12V-21W)
-
321D6-83312-10-00 ...LENS, FLASHER...LENS, FLASHER
-
331D6-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
341D6-83363-00-00 ...LENS, RIM...LENS, RIM
-
3557M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
3695024-06030-00 BOLT, FLANGEBOLT, FLANGE
-
3795704-06500-00 NUT, FLANGENUT, FLANGE
-
381AA-83318-00-00 STAY,FLASHER 1STAY,FLASHER 1
-
3995707-12500-00 NUT, FLANGENUT, FLANGE
