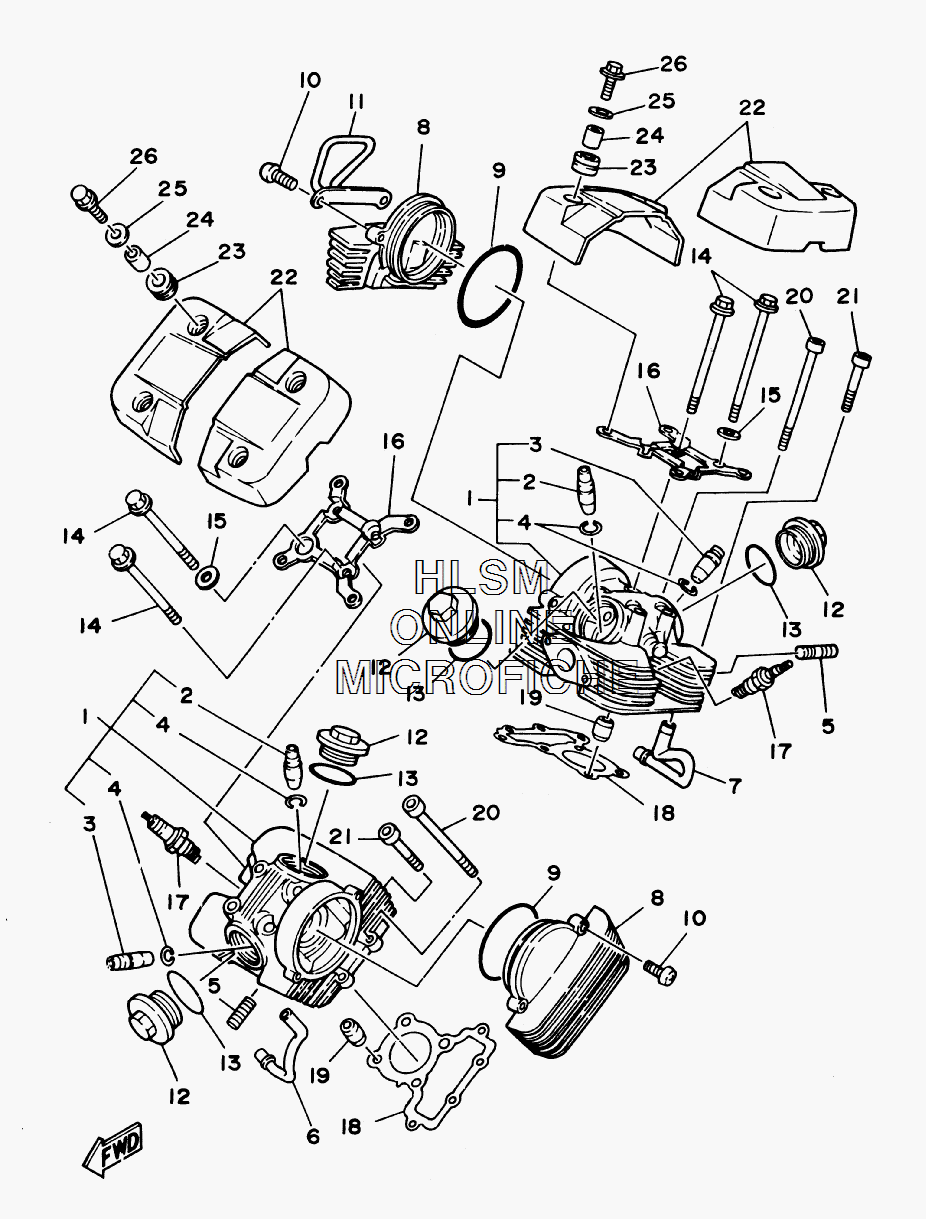

CYLINDER HEAD для Yamaha V STAR 250 - 2008 года выпуска
-
№АртикулНазвание
-
13BG-11102-01-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
22UJ-11133-10-00 ...GUIDE, 1NTK VLV 1 O/S...GUIDE, 1NTK VLV 1 O/S
-
322F-11134-10-00 ...GUIDE, EXST VLV 1 O/S...GUIDE, EXST VLV 1 O/S
-
493440-10109-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
590116-06036-00 BOLT, STUDBOLT, STUD
-
63BG-14871-00-00 PIPE 1PIPE 1
-
73BG-14872-00-00 PIPE 2PIPE 2
-
82UJ-11185-01-00 COVER, CYLINDER HEAD SIDE 1COVER, CYLINDER HEAD SIDE 1
-
993210-78544-00 O-RINGO-RING
-
1098507-06025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
112UJ-11152-00-00 BRACKET, CYLINDER HEAD COVERBRACKET, CYLINDER HEAD COVER
-
1222F-11186-10-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
1393210-44704-00 O-RING (55X)O-RING (55X)
-
1490105-08181-00 BOLT, FLANGEBOLT, FLANGE
-
1590201-08609-00 WASHER, PLATEWASHER, PLATE
-
16NGK-C6HSA-00-00 BRACKET, CYLINDER HEAD COVER 2BRACKET, CYLINDER HEAD COVER 2
-
1794701-00256-00 SPARK PLUG BR6ESSPARK PLUG BR6ES
-
182UJ-11181-01-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1999530-10114-00 PIN, DOWELPIN, DOWEL
-
2091317-06110-00 BOLT, SOCKETBOLT, SOCKET
-
2191317-06040-00 BOLT (4MY)BOLT (4MY)
-
223DM-11186-01-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
2390480-13018-00 GROMMETGROMMET
-
2490387-06043-00 COLLARCOLLAR
-
2590201-06071-00 WASHER, PLATEWASHER, PLATE
-
2695024-06020-00 BOLT, FLANGEBOLT, FLANGE
