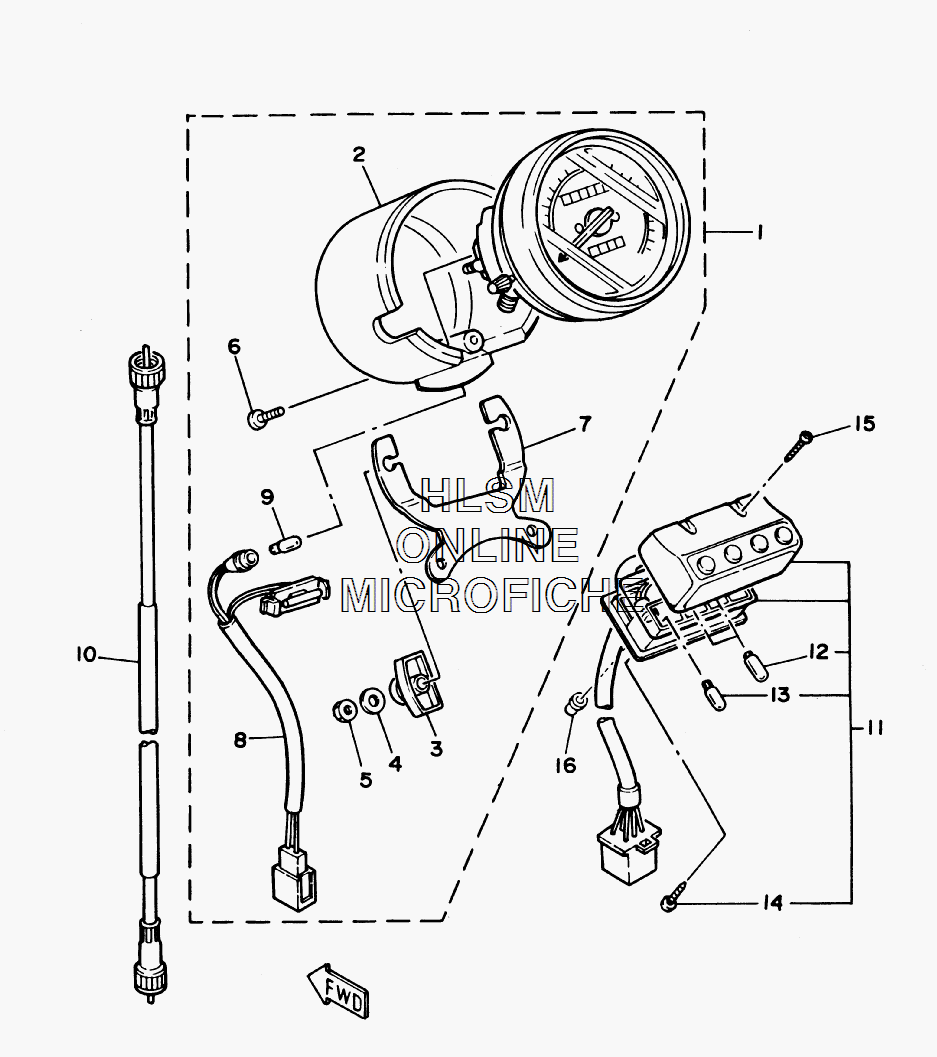

INSTRUMENT PANEL для Yamaha V STAR 250 - 2008 года выпуска
-
№АртикулНазвание
-
13LS-83570-11-00 SPEEDOMETER ASSY (MPH)SPEEDOMETER ASSY (MPH)
-
21FK-83507-11-00 ...COVER, SPEEDOMETER...COVER, SPEEDOMETER
-
32UJ-83523-00-00 ...DAMPER...DAMPER
-
492907-05600-00 ...WASHER, PLATE (1RW)...WASHER, PLATE (1RW)
-
595307-05600-00 ...NUT...NUT
-
690164-04009-00 ...SCREW, TAPPING...SCREW, TAPPING
-
72UJ-83519-00-00 ...BRACKET, METER...BRACKET, METER
-
82UJ-83509-00-00 ...SOCKET CORD ASSY...SOCKET CORD ASSY
-
92UJ-83517-00-00 ...BULB (12V-3W)...BULB (12V-3W)
-
104YH-83550-01-00 SPEEDOMETER CABLE ASSYSPEEDOMETER CABLE ASSY
-
112UJ-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
1242X-83517-00-00 ...BULB (12V-3W)...BULB (12V-3W)
-
132GV-83517-00-00 ...BULB (12V-1.7W T6.5)...BULB (12V-1.7W T6.5)
-
144AS-83616-10-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1598507-04035-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1690179-04579-00 NUT (2UJ)NUT (2UJ)
