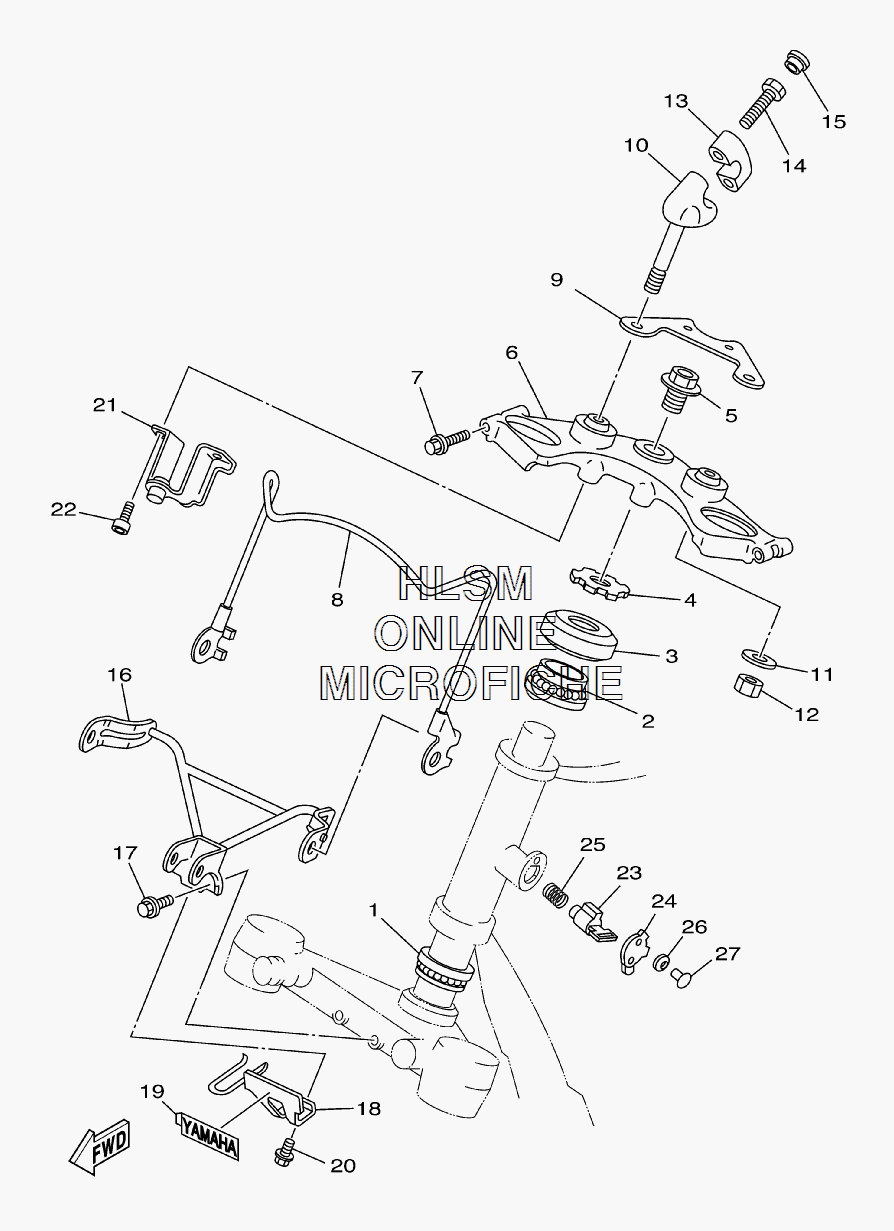

STEERING для Yamaha V STAR 250 - 2008 года выпуска
-
№АртикулНазвание
-
193399-99942-00 BEARINGBEARING
-
293399-99950-00 BEARINGBEARING
-
34HF-23415-00-00 COVER, BALL RACE 1COVER, BALL RACE 1
-
490179-25033-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
590105-14102-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
62UJ-W2341-00-35 CROWN, HANDLE (SILVER)CROWN, HANDLE (SILVER)
-
795024-08040-00 BOLT, FLANGEBOLT, FLANGE
-
83DM-23164-00-00 STAY, LIGHT GUARDSTAY, LIGHT GUARD
-
93DM-2317F-00-00 STAY 2STAY 2
-
1042X-23442-00-38 HOLDER, HANDLE LOWER (CLEAR (WITH BUFF)HOLDER, HANDLE LOWER (CLEAR (WITH BUFF)
-
1190201-105A2-00 WASHER, PLATEWASHER, PLATE
-
1295607-10100-00 NUT, UNUT, U
-
134H7-23441-01-38 HOLDER, HANDLE UPPER (CLEAR (WITH BUFF)HOLDER, HANDLE UPPER (CLEAR (WITH BUFF)
-
1491314-08025-00 BOLT, SOCKETBOLT, SOCKET
-
1590338-08163-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
162UJ-23174-01-00 STAY, HEADLIGHTSTAY, HEADLIGHT
-
1795024-06016-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
182UJ-2317M-00-00 STAY 3STAY 3
-
193WF-2153E-40-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
2095024-06012-00 BOLT, FLANGEBOLT, FLANGE
-
212UJ-2317E-00-00 STAYSTAY
-
2291317-06016-00 BOLT (4MY)BOLT (4MY)
-
234R3-23408-00-00 STEERING LOCK ASSYSTEERING LOCK ASSY
-
243DM-23484-00-00 CAP, HANDLE LOCKCAP, HANDLE LOCK
-
2590502-09024-00 SPRING, CONICALSPRING, CONICAL
-
2690208-04029-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
2790269-04003-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
