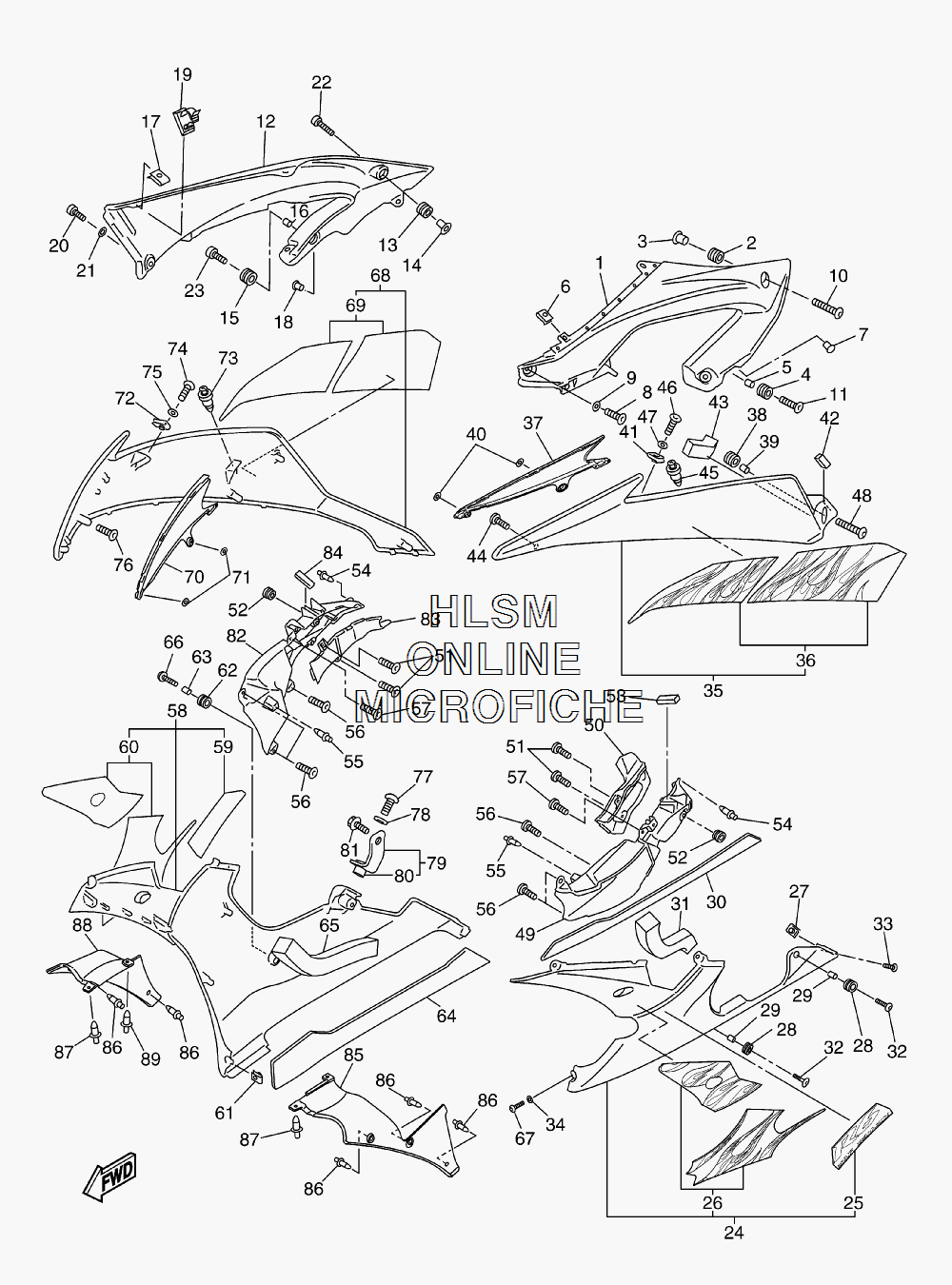

COWLING 2 для Yamaha YZF-R6 W/FLAMES - 2008 года выпуска
-
№АртикулНазвание
-
113S-2117V-00-P5 COVER 7 (RYC1)COVER 7 (RYC1)
-
290480-12613-00 GROMMETGROMMET
-
390387-067K8-00 COLLARCOLLAR
-
490480-14003-00 GROMMETGROMMET
-
590387-06057-00 COLLARCOLLAR
-
690183-05076-00 NUT, SPRINGNUT, SPRING
-
790338-06134-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
890111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
990202-05180-00 WASHER, PLATEWASHER, PLATE
-
1090111-06063-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1190111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1213S-2117W-00-P5 COVER 8 (RYC1)COVER 8 (RYC1)
-
1390480-12613-00 GROMMETGROMMET
-
1490387-067K8-00 COLLARCOLLAR
-
1590480-14003-00 GROMMETGROMMET
-
1690387-06057-00 COLLARCOLLAR
-
1790183-05076-00 NUT, SPRINGNUT, SPRING
-
1890338-06134-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
1990464-20014-00 CLAMPCLAMP
-
2090111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2190202-05180-00 WASHER, PLATEWASHER, PLATE
-
2290111-06063-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2390111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2413S-W2838-10-P1 COWLING ASSY (SMX)COWLING ASSY (SMX)
-
2513S-28328-40-00 ...EMBLEM...EMBLEM
-
2613S-28301-10-00 ...GRAPHIC SET, LOWER COVER 1...GRAPHIC SET, LOWER COVER 1
-
2790183-05076-00 NUT, SPRINGNUT, SPRING
-
2890480-14003-00 GROMMETGROMMET
-
2990387-06057-00 COLLARCOLLAR
-
3013S-2838G-00-00 SEAT 1SEAT 1
-
3113S-2836U-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
3290111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3390111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3490202-05180-00 WASHER, PLATEWASHER, PLATE
-
3513S-W283U-20-P5 PANEL ASSY 1 (RYC1)PANEL ASSY 1 (RYC1)
-
3613S-283B1-00-00 ...GRAPHIC SET...GRAPHIC SET
-
3713S-28219-00-00 COVER 1COVER 1
-
3890480-14003-00 GROMMETGROMMET
-
3990387-06057-00 COLLARCOLLAR
-
4090183-05M02-00 NUT, SPRINGNUT, SPRING
-
4190183-05076-00 NUT, SPRINGNUT, SPRING
-
4213S-28415-00-00 DAMPER 1DAMPER 1
-
4313S-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
4497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
4590269-07007-00 RIVETRIVET
-
4690111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4790202-05180-00 WASHER, PLATEWASHER, PLATE
-
4890111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4913S-2137U-00-00 GUIDE, AIR 1GUIDE, AIR 1
-
5013S-2137K-00-00 GUIDE, AIR 3GUIDE, AIR 3
-
5197702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
5290480-01558-00 GROMMETGROMMET
-
5313S-28217-00-00 DAMPER 1DAMPER 1
-
5490269-06008-00 RIVETRIVET
-
5590269-06081-00 RIVETRIVET
-
5697707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
5797702-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
5813S-W2839-10-P1 UNDER COVER COMP. (SMX)UNDER COVER COMP. (SMX)
-
5913S-28338-40-00 ...EMBLEM...EMBLEM
-
6013S-28303-10-00 ...GRAPHIC SET, LOWER COVER 2...GRAPHIC SET, LOWER COVER 2
-
6190183-05076-00 NUT, SPRINGNUT, SPRING
-
6290480-14003-00 GROMMETGROMMET
-
6390387-06057-00 COLLARCOLLAR
-
6413S-2848K-00-00 SEAT 2SEAT 2
-
6513S-2847R-00-00 DAMPER 10DAMPER 10
-
6690111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6790111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6813S-W283V-20-P5 PANEL 2 (RYC1)PANEL 2 (RYC1)
-
6913S-283B2-00-00 ...GRAPHIC SET...GRAPHIC SET
-
7013S-28229-00-00 COVER 2COVER 2
-
7190183-05M02-00 NUT, SPRINGNUT, SPRING
-
7290183-05076-00 NUT, SPRINGNUT, SPRING
-
7390269-07007-00 RIVETRIVET
-
7490111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
7590202-05180-00 WASHER, PLATEWASHER, PLATE
-
7697707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
7790109-06207-00 BOLTBOLT
-
7890202-10024-00 WASHER, PLATEWASHER, PLATE
-
7913S-2836G-00-00 BRACKET 4BRACKET 4
-
8090179-06059-00 ...NUT...NUT
-
8190105-06020-00 BOLT, FLANGEBOLT, FLANGE
-
8213S-2137V-00-00 GUIDE, AIR 2GUIDE, AIR 2
-
8313S-2137L-00-00 GUIDE, AIR 4GUIDE, AIR 4
-
8413S-28217-00-00 DAMPER 1DAMPER 1
-
8513S-2836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
8690269-06008-00 RIVETRIVET
-
8790269-06002-00 RIVETRIVET
-
8813S-2836M-00-00 PANEL, INNER 3PANEL, INNER 3
-
8990269-06008-00 RIVETRIVET
