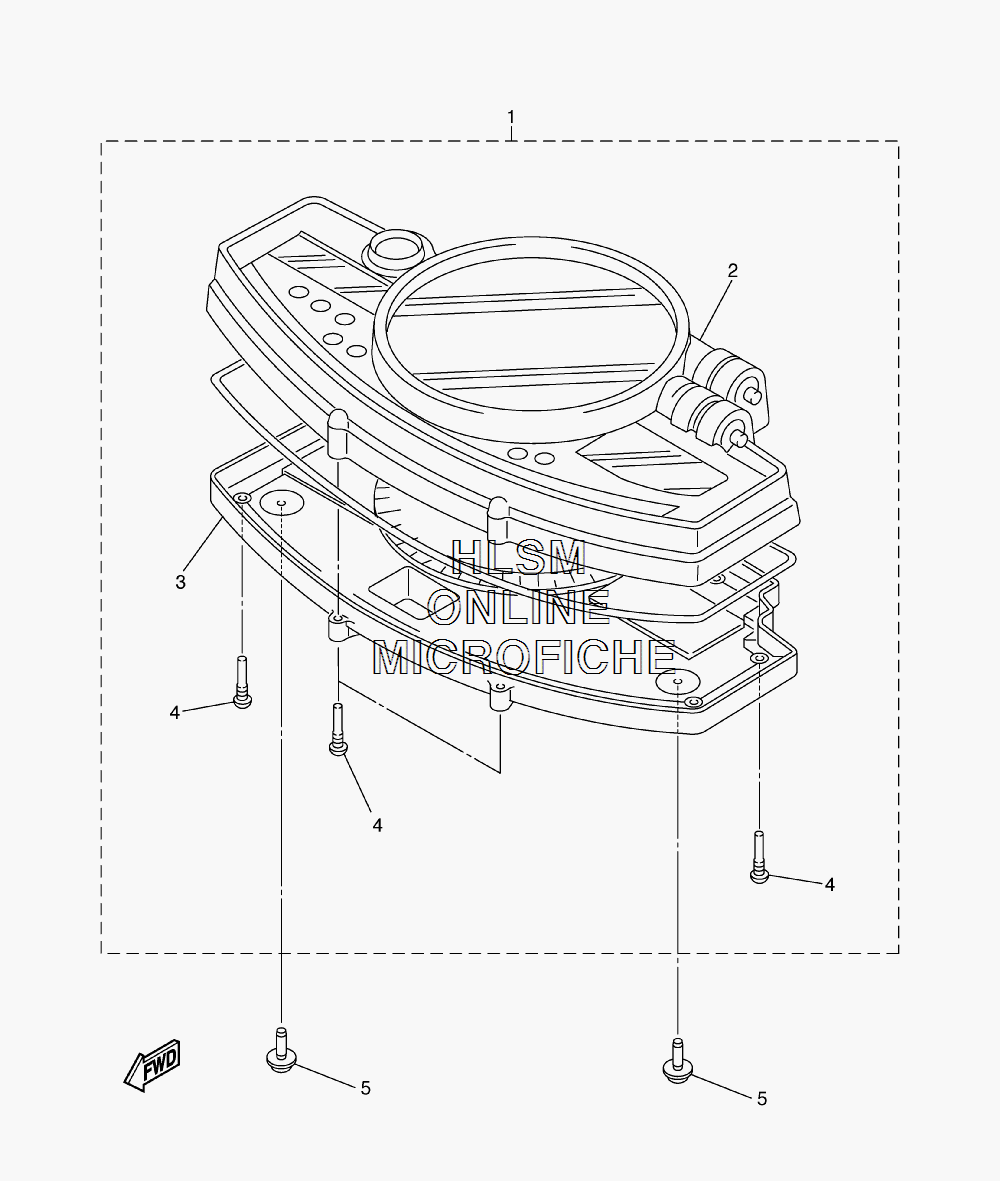

INSTRUMENT PANEL для Yamaha YZF-R6 W/FLAMES - 2008 года выпуска
-
№АртикулНазвание
-
113S-83500-20-00 METER ASSY (MPH)METER ASSY (MPH)
-
25VY-8353E-00-00 ...CASE, METER UPPER...CASE, METER UPPER
-
35VY-83572-02-00 ...CASE, SPEEDOMETER LOWER...CASE, SPEEDOMETER LOWER
-
45PW-8352S-00-00 ...SCREW, PANEL FTTING...SCREW, PANEL FTTING
-
590160-05006-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
