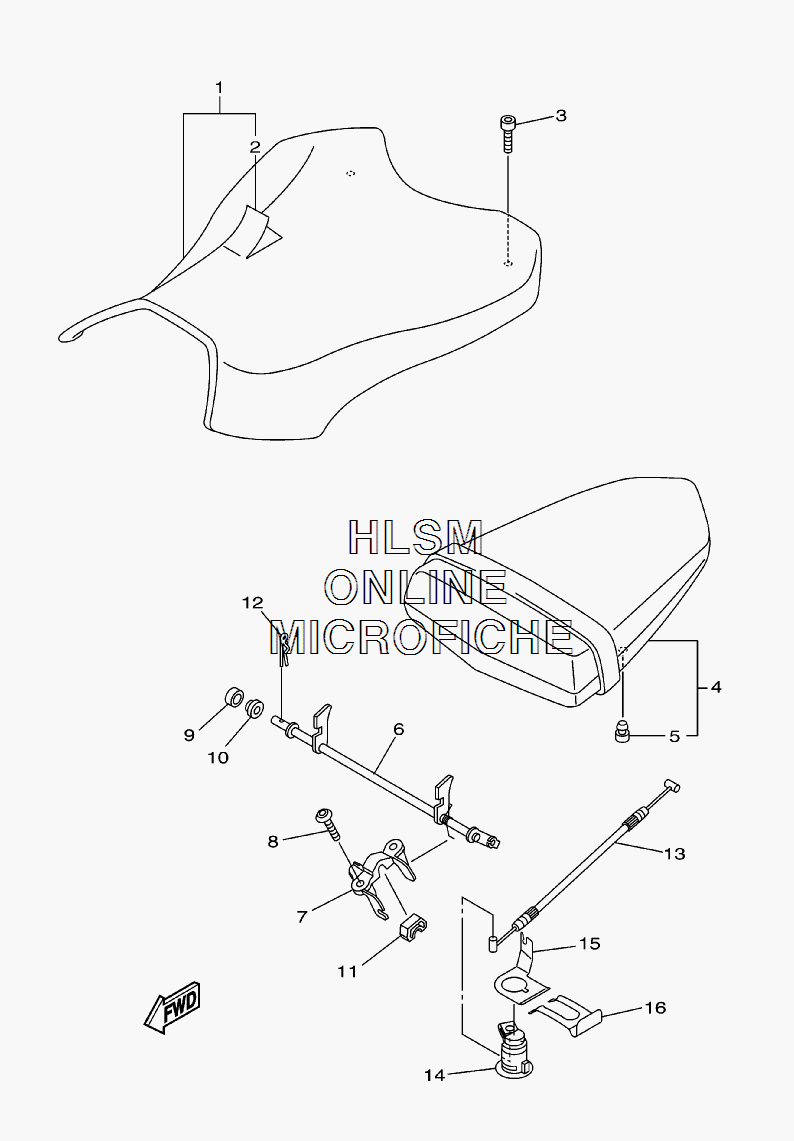

SEAT для Yamaha YZF-R6 W/FLAMES - 2008 года выпуска
-
№АртикулНазвание
-
113S-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
213S-24711-00-00 ...COVER, SINGLE SEAT...COVER, SINGLE SEAT
-
390110-06258-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
413S-24750-00-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
55SL-24723-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
62C0-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
72C0-24792-00-00 PLATEPLATE
-
890111-06051-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
92C0-24825-00-00 SPACER, CARRIERSPACER, CARRIER
-
1013S-24725-00-00 SPACER 1SPACER 1
-
1113S-24847-00-00 HOLDER 1HOLDER 1
-
1290468-16001-00 CLIPCLIP
-
1313S-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
145VY-W2470-00-00 ROTOR SETROTOR SET
-
155VY-2117K-01-00 STAY, LOCKSTAY, LOCK
-
165VY-2176V-00-00 SPRING, LOCK 2SPRING, LOCK 2
