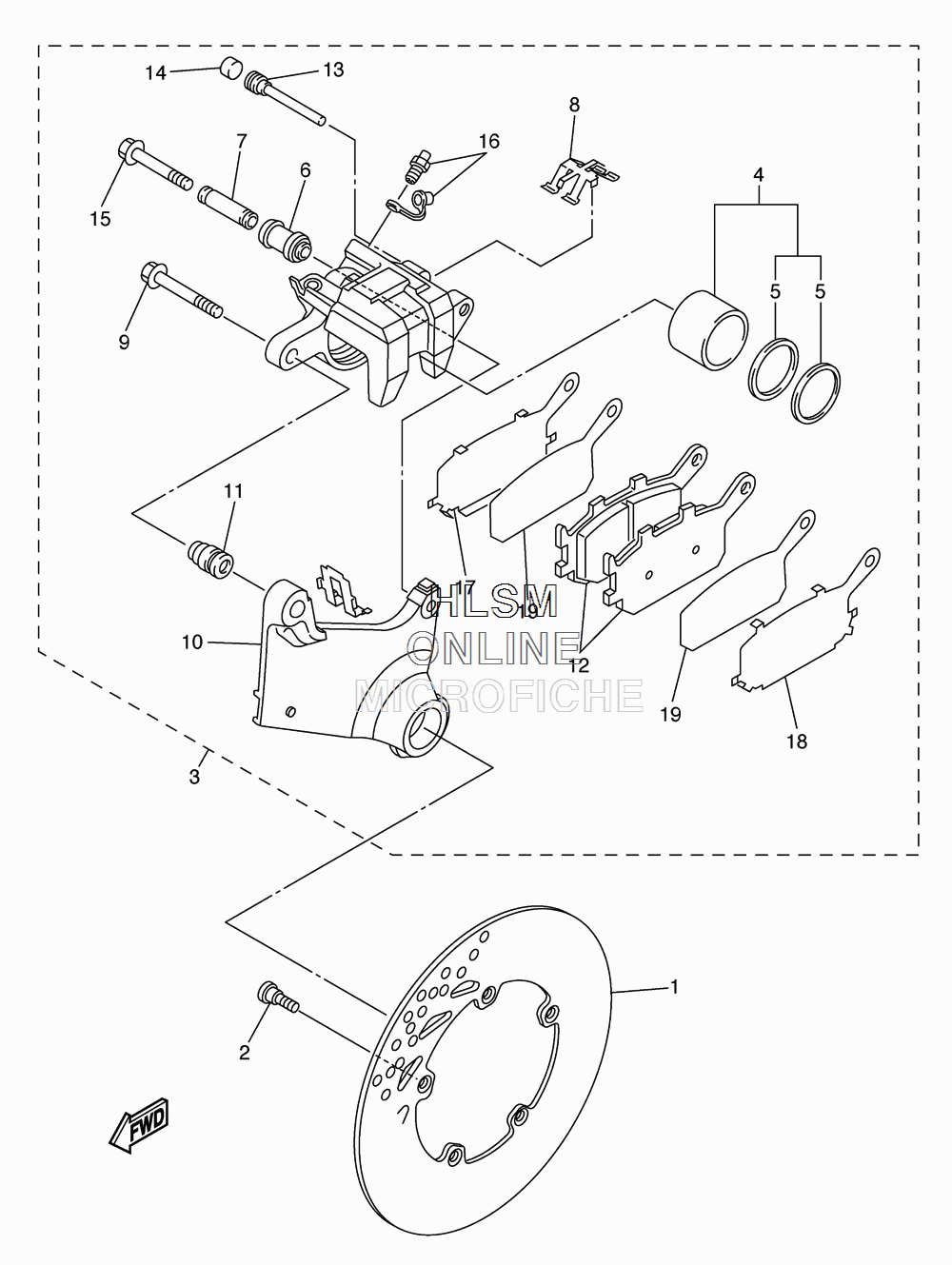

BRAKE - REAR CALIPER для Yamaha FZ1 - 2009 года выпуска
-
№АртикулНазвание
-
12D1-2582W-00-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
290149-08009-00 SCREWSCREW
-
32D1-2580W-00-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
45SL-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
55SL-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
65SL-25917-00-00 BOOT, CALIPERBOOT, CALIPER
-
75SL-25838-00-00 SLEEVE, CALIPERSLEEVE, CALIPER
-
85SL-25919-00-00 SUPPORT, PADSUPPORT, PAD
-
95SL-25914-00-00 PIN, SLIDEPIN, SLIDE
-
105VX-25921-50-00 BRACKET, SUPPORTBRACKET, SUPPORT
-
113JD-25917-00-00 BOOT, CALIPERBOOT, CALIPER
-
125VX-W0046-00-00 BRAKE PAD KIT 2BRAKE PAD KIT 2
-
138CR-25924-00-00 PIN, PADPIN, PAD
-
145DH-25916-00-00 PLUGPLUG
-
155SL-25926-00-00 BOLTBOLT
-
161UY-W0048-00-00 BLEED SCREW KITBLEED SCREW KIT
-
175SL-25827-00-00 SHIM, CALIPERSHIM, CALIPER
-
185SL-25827-10-00 SHIM, CALIPERSHIM, CALIPER
-
195SL-25828-00-00 SHIM, CALIPERSHIM, CALIPER
