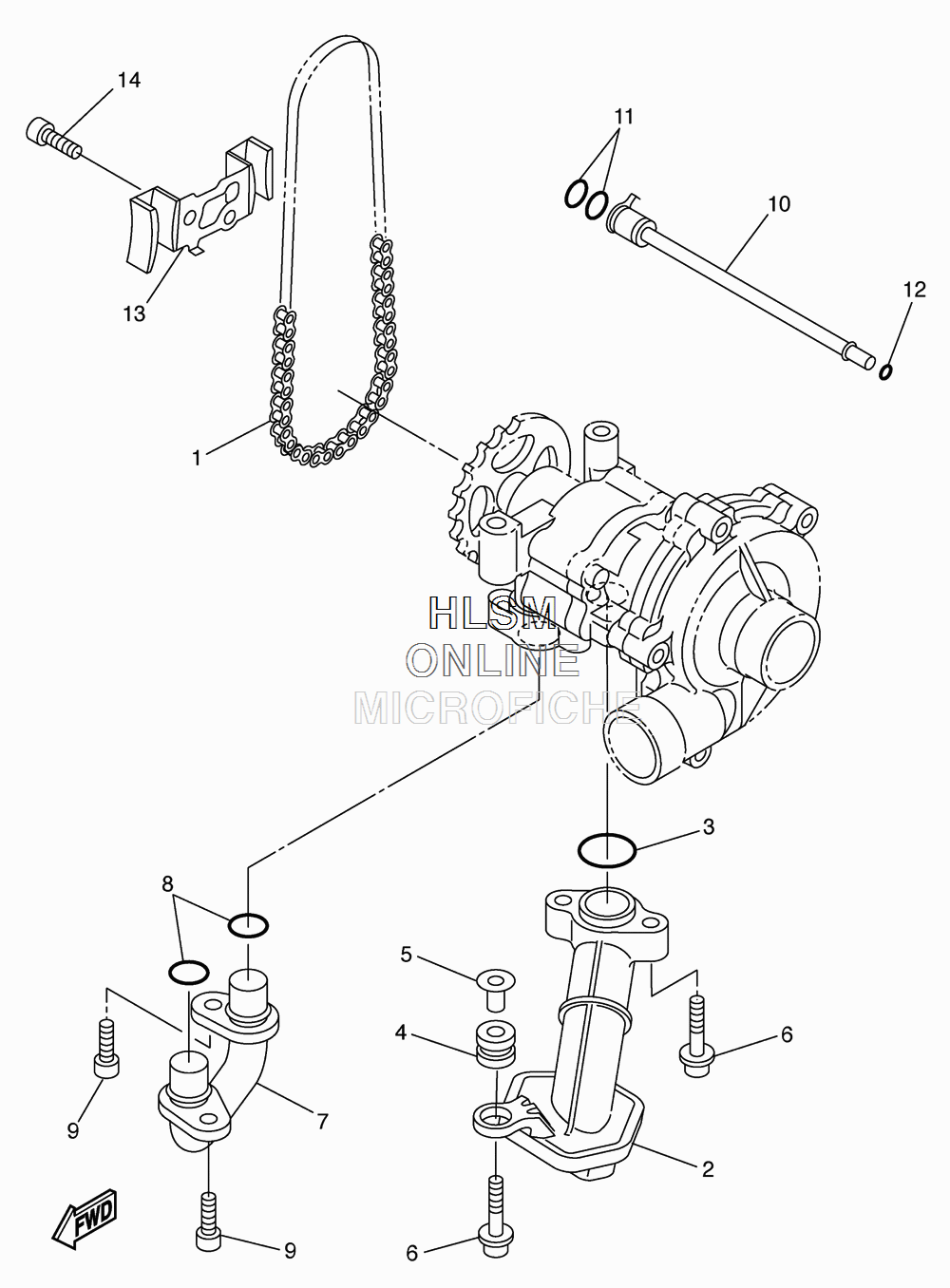

OIL PUMP для Yamaha FZ1 - 2009 года выпуска
-
№АртикулНазвание
-
194580-25078-00 CHAIN (DID25 78LE)CHAIN (DID25 78LE)
-
25VY-13410-00-00 STRAINER HOUSING ASSYSTRAINER HOUSING ASSY
-
393210-22298-00 O-RINGO-RING
-
490480-13010-00 GROMMETGROMMET
-
55VY-13117-10-00 COLLAR, DISTANCECOLLAR, DISTANCE
-
690110-06173-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
75VY-13416-00-00 PIPE, OIL 1PIPE, OIL 1
-
893210-14003-00 O-RINGO-RING
-
990110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
105VY-1316E-00-00 PIPE, DELIVERY 5PIPE, DELIVERY 5
-
1193210-09165-00 O-RINGO-RING
-
1293210-06667-00 O-RINGO-RING
-
135VY-13898-00-00 HOLDERHOLDER
-
1490110-06182-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
