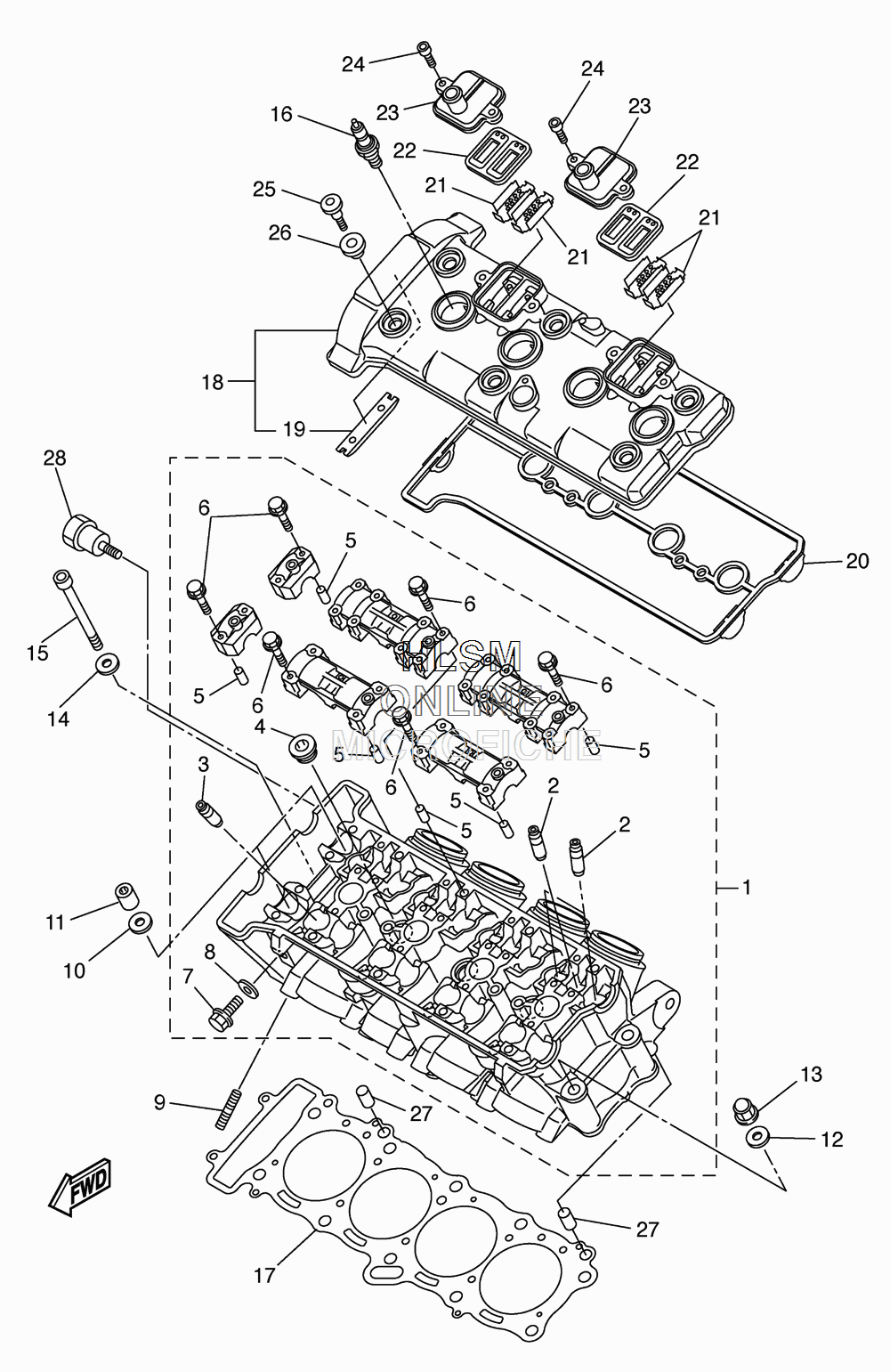

CYLINDER HEAD для Yamaha FZ1 - 2009 года выпуска
-
№АртикулНазвание
-
15VY-11101-20-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
25VY-11133-10-00 GUIDE, VALVE 1GUIDE, VALVE 1
-
35VY-11134-10-00 GUIDE, VALVE 2GUIDE, VALVE 2
-
490340-18002-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
591808-16023-00 PIN, DOWELPIN, DOWEL
-
690105-06026-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
795024-06012-00 BOLT, FLANGEBOLT, FLANGE
-
890430-06014-00 GASKETGASKET
-
995612-08625-00 BOLT, STUDBOLT, STUD
-
1090201-10033-00 WASHER, PLATEWASHER, PLATE
-
1190179-10006-00 NUTNUT
-
1290201-10033-00 WASHER, PLATEWASHER, PLATE
-
1390176-10075-00 NUT, CROWNNUT, CROWN
-
1490201-06034-00 WASHER, PLATEWASHER, PLATE
-
1591314-06105-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
16NGK-CR9EK-00-00 PLUG, SPARK (NGK CR9EK)PLUG, SPARK (NGK CR9EK)
-
172D1-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
185VY-11191-02-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
195BE-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
205VY-11193-10-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
215VY-1482K-00-00 PLATEPLATE
-
225SL-14890-10-00 REED VALVE ASSYREED VALVE ASSY
-
235VY-14899-00-00 CAP, CASECAP, CASE
-
2490110-06178-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2590109-066F0-00 BOLTBOLT
-
265VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
2799530-10114-00 PIN, DOWELPIN, DOWEL
-
282D1-11026-00-00 BOLT, MOUNTBOLT, MOUNT
