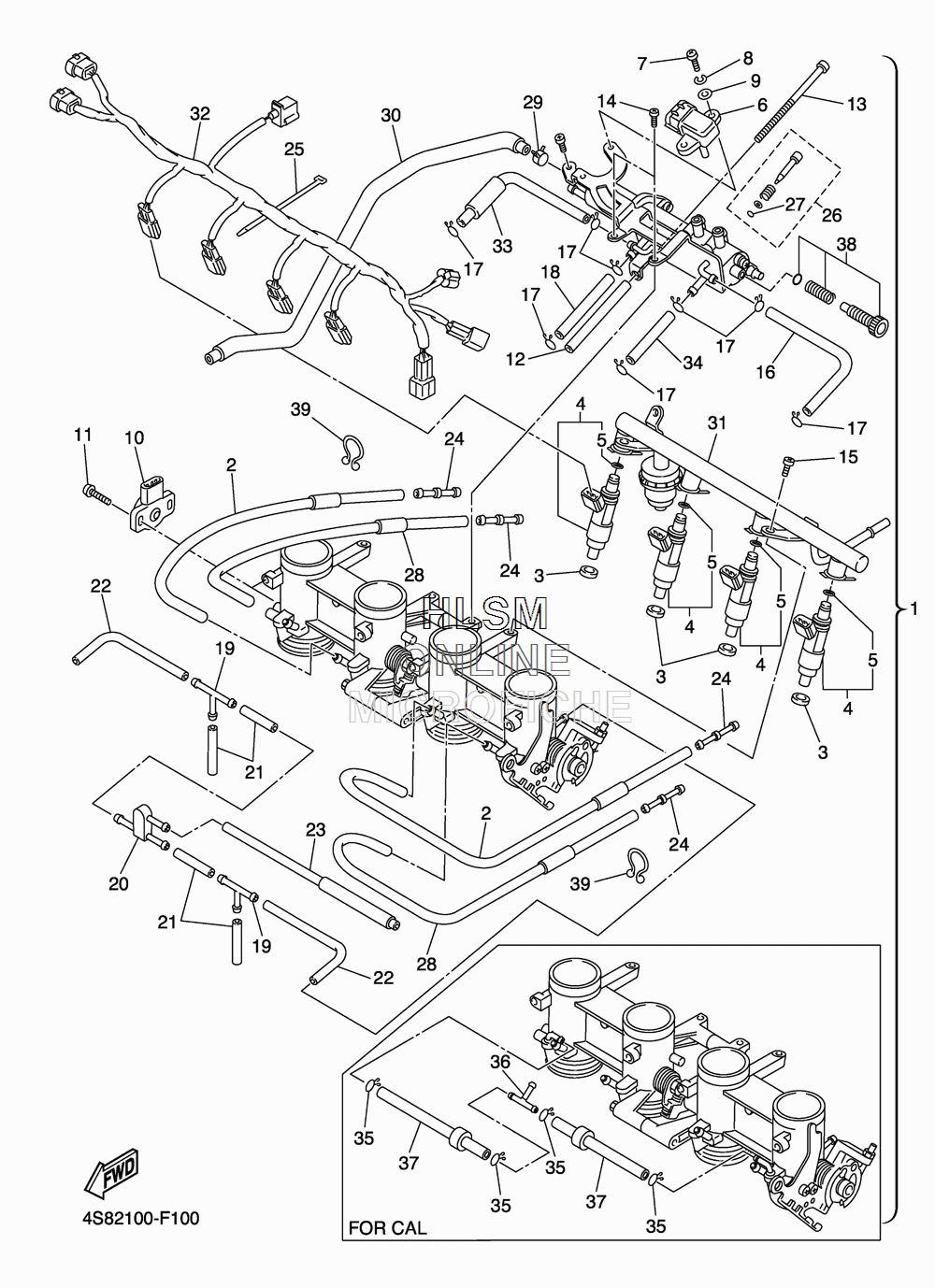

AIR CLEANER W/ INTAKE для Yamaha FZ6 - 2009 года выпуска
-
№АртикулНазвание
-
15VX-13750-04-00 THROTTLE BODY ASSY (EXCEPT CALIF.)THROTTLE BODY ASSY (EXCEPT CALIF.)
-
15VX-13750-14-00 THROTTLE BODY ASSY (CALIF. ONLY)THROTTLE BODY ASSY (CALIF. ONLY)
-
25VX-14348-00-00 PIPE 1PIPE 1
-
390430-09002-00 GASKETGASKET
-
45VX-13761-00-00 INJECTORINJECTOR
-
55PS-14147-00-00 O-RINGO-RING
-
65VX-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
798507-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
892907-05100-00 WASHER, SPRINGWASHER, SPRING
-
992907-05600-00 WASHER, PLATEWASHER, PLATE
-
102D1-85885-00-00 THROTTLE SENSOR ASSYTHROTTLE SENSOR ASSY
-
118CC-14216-10-00 SCREWSCREW
-
125VX-14149-00-00 PIPEPIPE
-
135VX-14565-00-00 SCREWSCREW
-
1498507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1598507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
165VX-14396-00-00 PIPEPIPE
-
173UH-14937-00-00 CLIPCLIP
-
185VX-14987-00-00 HOSEHOSE
-
1968V-24376-00-00 PIPE, JOINT (T - FITTING)PIPE, JOINT (T - FITTING)
-
203XV-14251-00-00 NIPPLENIPPLE
-
215FL-14348-10-00 PIPE 1PIPE 1
-
2268V-13533-00-00 HOSE, VACUUM SENSING 4HOSE, VACUUM SENSING 4
-
235VX-1410E-00-00 HOSEHOSE
-
245PW-14251-00-00 NIPPLENIPPLE
-
254KM-14137-00-00 CLIPCLIP
-
265JW-14104-00-00 AIR SCREW SETAIR SCREW SET
-
273H1-14147-00-00 O-RINGO-RING
-
285VX-14349-00-00 PIPEPIPE
-
2990467-11090-00 CLIP, SCISSORCLIP, SCISSOR
-
305VX-1243E-00-00 HOSE 2HOSE 2
-
315VX-13160-00-00 DELIVERY PIPE ASSY 1DELIVERY PIPE ASSY 1
-
325VX-82386-00-00 EXTENSION, WIRE HARNESSEXTENSION, WIRE HARNESS
-
335VX-13533-00-00 HOSE, VACUUM SENSING 4HOSE, VACUUM SENSING 4
-
345VX-14807-00-00 HOSEHOSE
-
3590467-10008-00 CLIP, SCISSOR (CALIF. ONLY)CLIP, SCISSOR (CALIF. ONLY)
-
3690413-08012-00 WAY 3 (CALIF. ONLY)WAY 3 (CALIF. ONLY)
-
375VX-14465-01-00 PIPE (CALIF. ONLY)PIPE (CALIF. ONLY)
-
385VX-14503-00-00 ADJUST SCREW SETADJUST SCREW SET
-
3990464-23041-00 CLAMPCLAMP
