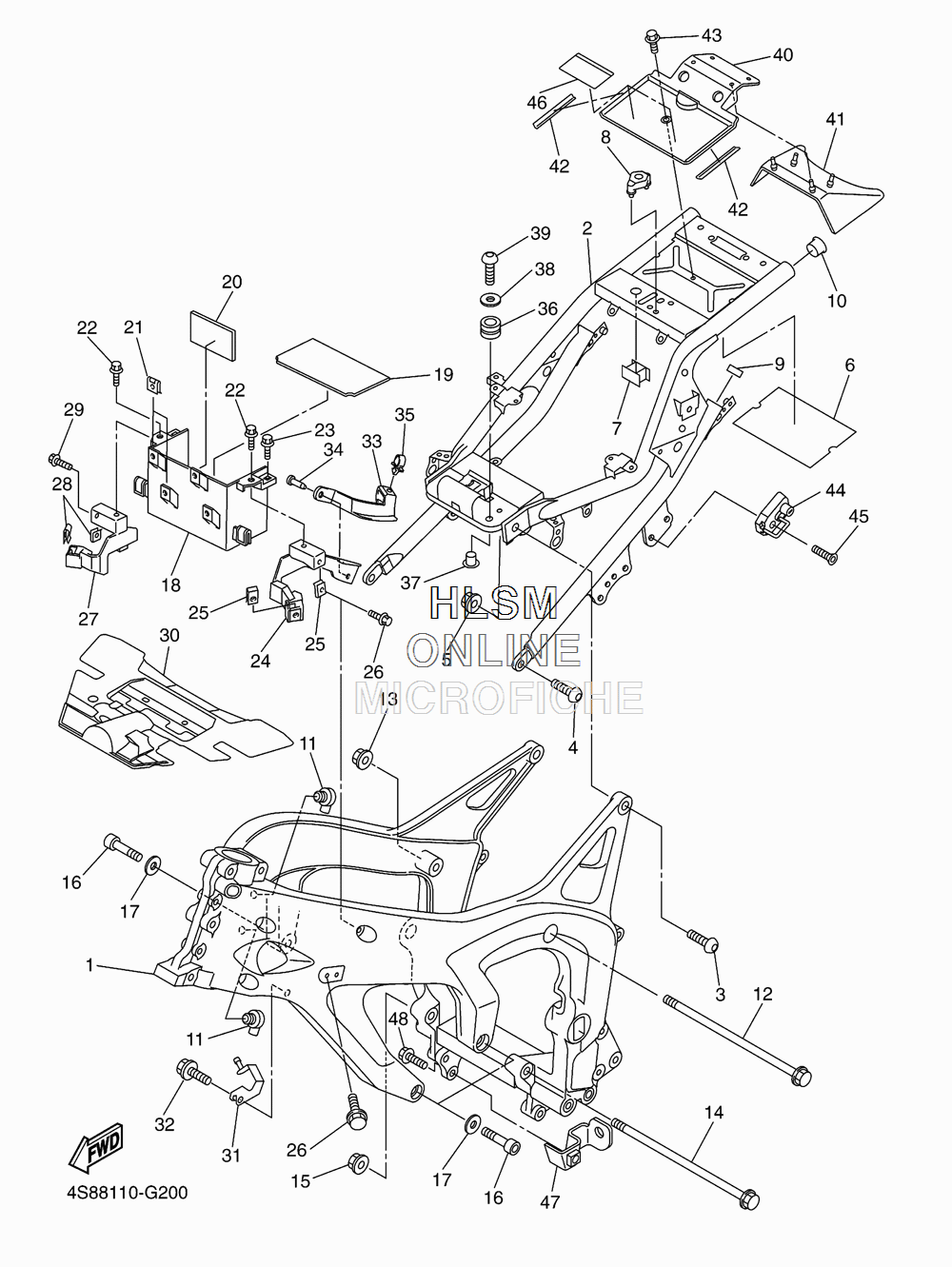

FRAME для Yamaha FZ6 - 2009 года выпуска
-
№АртикулНазвание
-
14S8-21110-09-00 FRAME COMP.FRAME COMP.
-
24S8-21190-09-00 REAR FRAME COMP.REAR FRAME COMP.
-
390149-10006-00 SCREWSCREW
-
490149-10012-00 SCREWSCREW
-
595607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
65VX-21268-00-00 SEALSEAL
-
75VX-2139B-00-00 SEALSEAL
-
85VX-2140A-00-00 DAMPER, STOPPERDAMPER, STOPPER
-
93YJ-24481-00-00 PLUGPLUG
-
1090338-21145-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
115VX-21279-10-00 PLUG, BLINDPLUG, BLIND
-
1290105-10032-00 BOLT, FLANGEBOLT, FLANGE
-
1390185-10002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1490105-10N53-00 BOLT, FLANGEBOLT, FLANGE
-
1590185-10002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1691314-10050-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1790201-10020-00 WASHER, PLATEWASHER, PLATE
-
185VX-2177G-00-00 BOX, BATTERYBOX, BATTERY
-
195VX-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
205EJ-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
2190183-06053-00 NUT, SPRINGNUT, SPRING
-
2290109-06060-00 BOLTBOLT
-
2395807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
245VX-21238-00-00 BRACKETBRACKET
-
2590183-060A1-00 NUT, SPRINGNUT, SPRING
-
2690105-06557-00 BOLT, FLANGEBOLT, FLANGE
-
275VX-21239-00-00 BRACKET 2BRACKET 2
-
2890183-060A1-00 NUT, SPRINGNUT, SPRING
-
2990105-06557-00 BOLT, FLANGEBOLT, FLANGE
-
305VX-2117M-01-00 COVER 2COVER 2
-
315VX-21249-00-00 BRACKETBRACKET
-
3295027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
335VX-2135F-00-00 COVERCOVER
-
3490269-08066-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
3590464-15157-00 CLAMPCLAMP
-
3690480-12237-00 GROMMETGROMMET
-
3790387-06078-00 COLLARCOLLAR
-
3890201-06055-00 WASHER, PLATEWASHER, PLATE
-
3992017-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
405VX-2139W-00-00 COVERCOVER
-
415VX-2139R-00-00 COVER 2COVER 2
-
425VX-21269-00-00 SEALSEAL
-
4390109-067F4-00 BOLTBOLT
-
444R8-21308-01-00 HELMET HANGER ASSYHELMET HANGER ASSY
-
4590151-06018-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
465VX-2117B-01-00 LABEL, WARNINGLABEL, WARNING
-
474S8-2119V-00-00 BRACKETBRACKET
-
4895827-08025-00 BOLT, FLANGEBOLT, FLANGE
