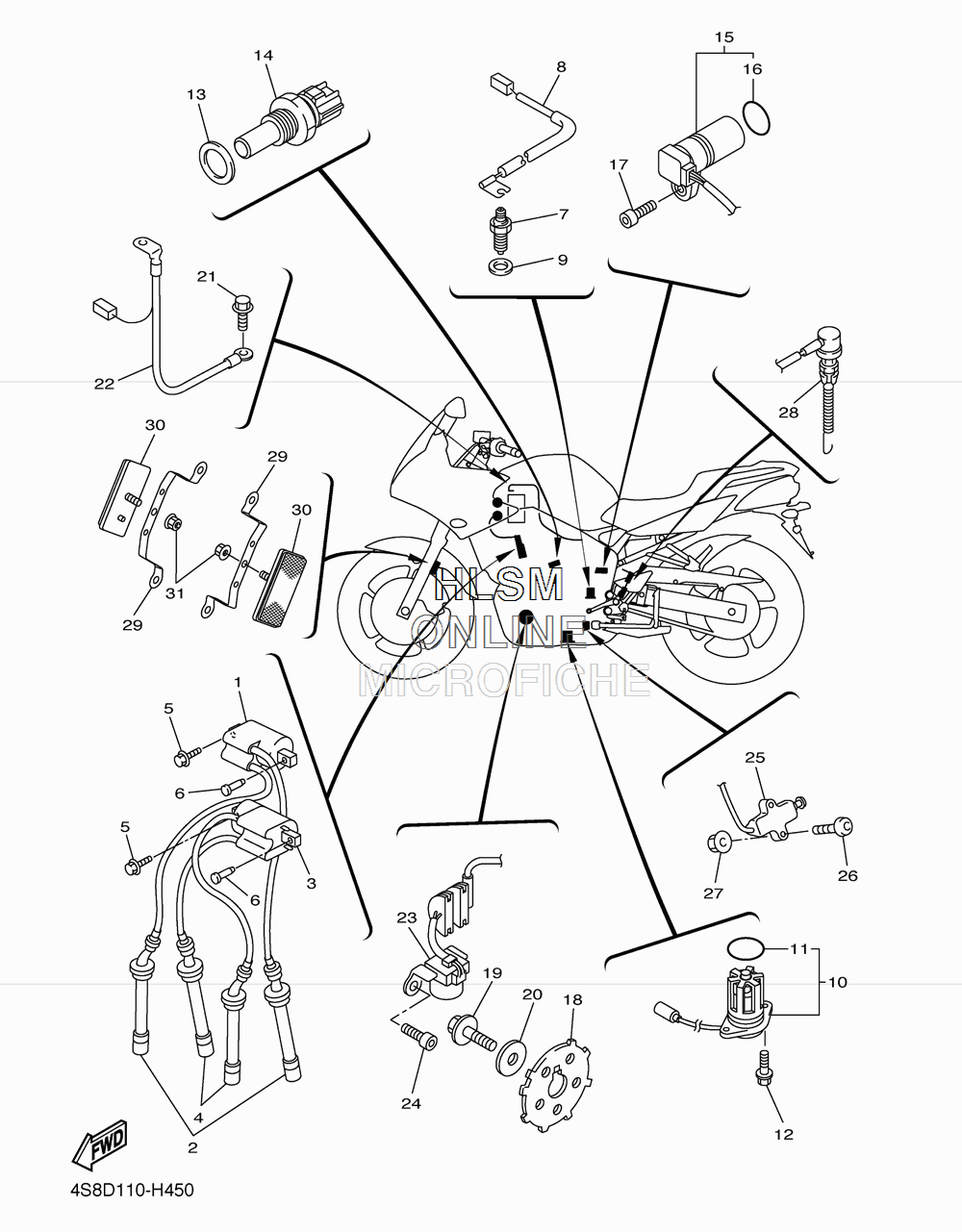

ELECTRICAL для Yamaha FZ6 - 2009 года выпуска
-
№АртикулНазвание
-
15VX-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
25VX-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
35VX-82320-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
45VX-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
590105-06557-00 BOLT, FLANGEBOLT, FLANGE
-
690269-06010-00 RIVETRIVET
-
73GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
85VX-82541-00-00 WIRE, LEADWIRE, LEAD
-
990430-10148-00 GASKETGASKET
-
105VX-85720-01-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
115VY-8A8E0-00-00 O-RINGO-RING
-
1295022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1390201-12790-00 WASHER, PLATEWASHER, PLATE
-
148CC-85790-01-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
155EB-83755-01-00 SENSOR, SPEEDSENSOR, SPEED
-
164D9-81168-00-00 O-RINGO-RING
-
1791312-06016-00 BOLTBOLT
-
185VX-81673-00-00 ROTORROTOR
-
1990105-08113-00 BOLT, FLANGEBOLT, FLANGE
-
2090201-08753-00 WASHER, PLATEWASHER, PLATE
-
2191380-06012-00 BOLTBOLT
-
225VX-82116-00-00 WIRE, GROUND LEADWIRE, GROUND LEAD
-
235VX-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
2491317-06016-00 BOLTBOLT
-
255VS-82566-61-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
2692017-05025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2795607-05200-00 NUT, U FLANGENUT, U FLANGE
-
285VX-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
294S8-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
3011H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
3195707-05500-00 NUT, FLANGENUT, FLANGE
