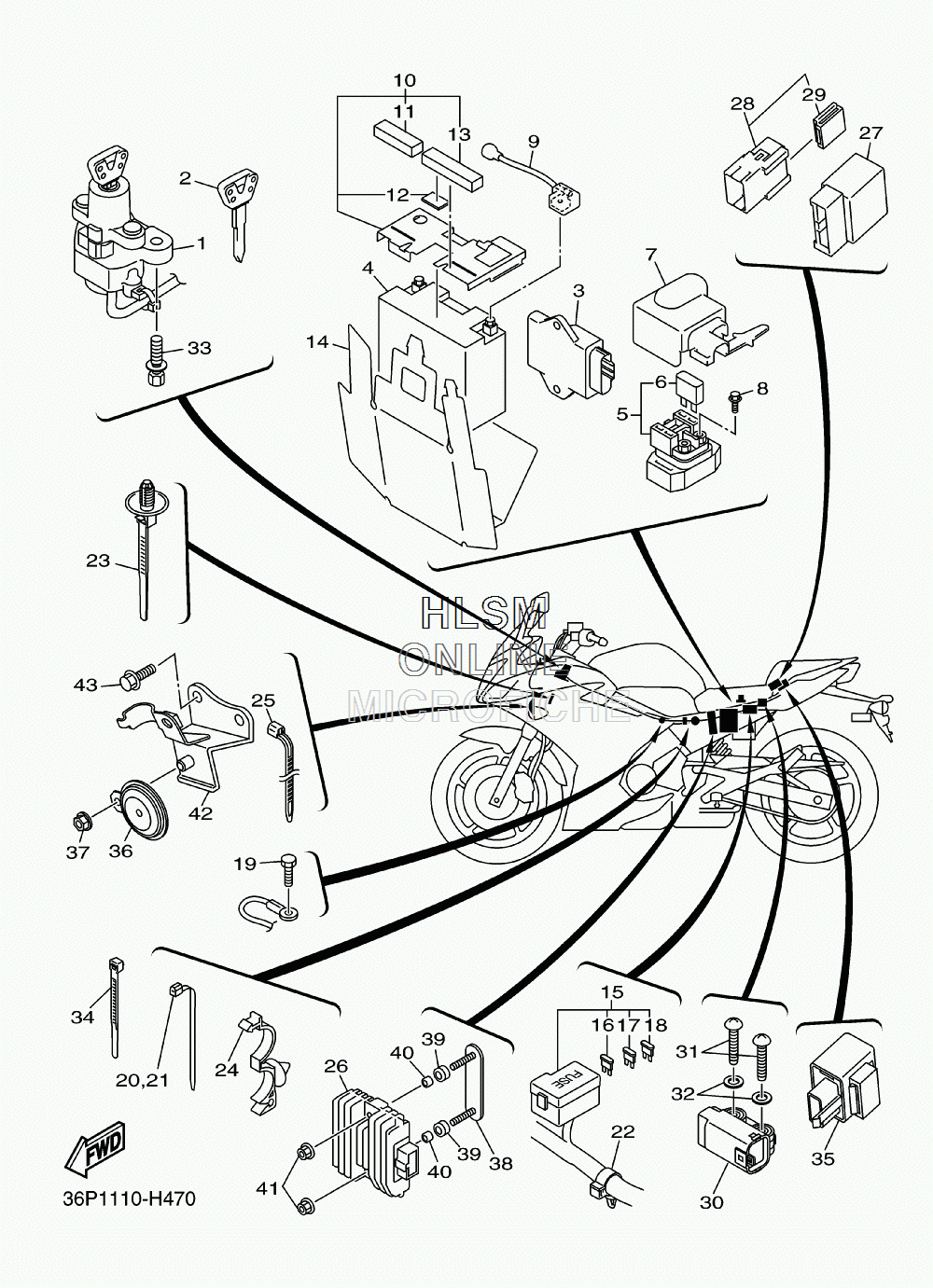

ELECTRICAL 2 для Yamaha FZ6R (BLACK METALLIC AND BLUE METALLIC) - 2009 года выпуска
-
№АртикулНазвание
-
136P-82501-00-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
24BH-82511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
336P-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
4BTG-GT12B-40-00 BATTERY ASSY (GS GT12B-4)BATTERY ASSY (GS GT12B-4)
-
54SV-81940-12-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
61AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
720S-82119-00-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
895022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
920S-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
1020S-82160-00-00 BATTERY COVER ASSYBATTERY COVER ASSY
-
115VK-21746-00-00 ...DAMPER...DAMPER
-
125HN-2139X-00-00 ...DAMPER...DAMPER
-
1390520-15002-00 ...DAMPER, PLATE...DAMPER, PLATE
-
1420S-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
1536P-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
165JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
175JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
185JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
1991380-06012-00 BOLTBOLT
-
2090464-13077-00 CLAMPCLAMP
-
2190464-13077-00 CLAMPCLAMP
-
2290464-20010-00 CLAMPCLAMP
-
2390464-20213-00 CLAMPCLAMP
-
2490464-20010-00 CLAMPCLAMP
-
2590464-15195-00 CLAMPCLAMP
-
265SL-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
275VK-81950-40-00 RELAY ASSY (5VK-40)RELAY ASSY (5VK-40)
-
285JJ-81950-20-00 RELAY ASSY (5JJ-20)RELAY ASSY (5JJ-20)
-
295JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
305PS-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
3190160-04009-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
3290201-04030-00 WASHER, PLATEWASHER, PLATE
-
3390109-08195-00 BOLTBOLT
-
3490465-15011-00 CLAMPCLAMP
-
353GM-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
3620S-83371-00-00 HORNHORN
-
3795702-08500-00 NUT, FLANGENUT, FLANGE
-
3820S-21689-00-00 BRACKET, REAR STAY 2BRACKET, REAR STAY 2
-
3990480-16007-00 GROMMETGROMMET
-
4090387-064T3-00 COLLARCOLLAR
-
4195702-06500-00 NUT, FLANGENUT, FLANGE
-
4220S-23377-00-00 BRACKET, HORNBRACKET, HORN
-
4395802-06016-00 BOLT, FLANGEBOLT, FLANGE
