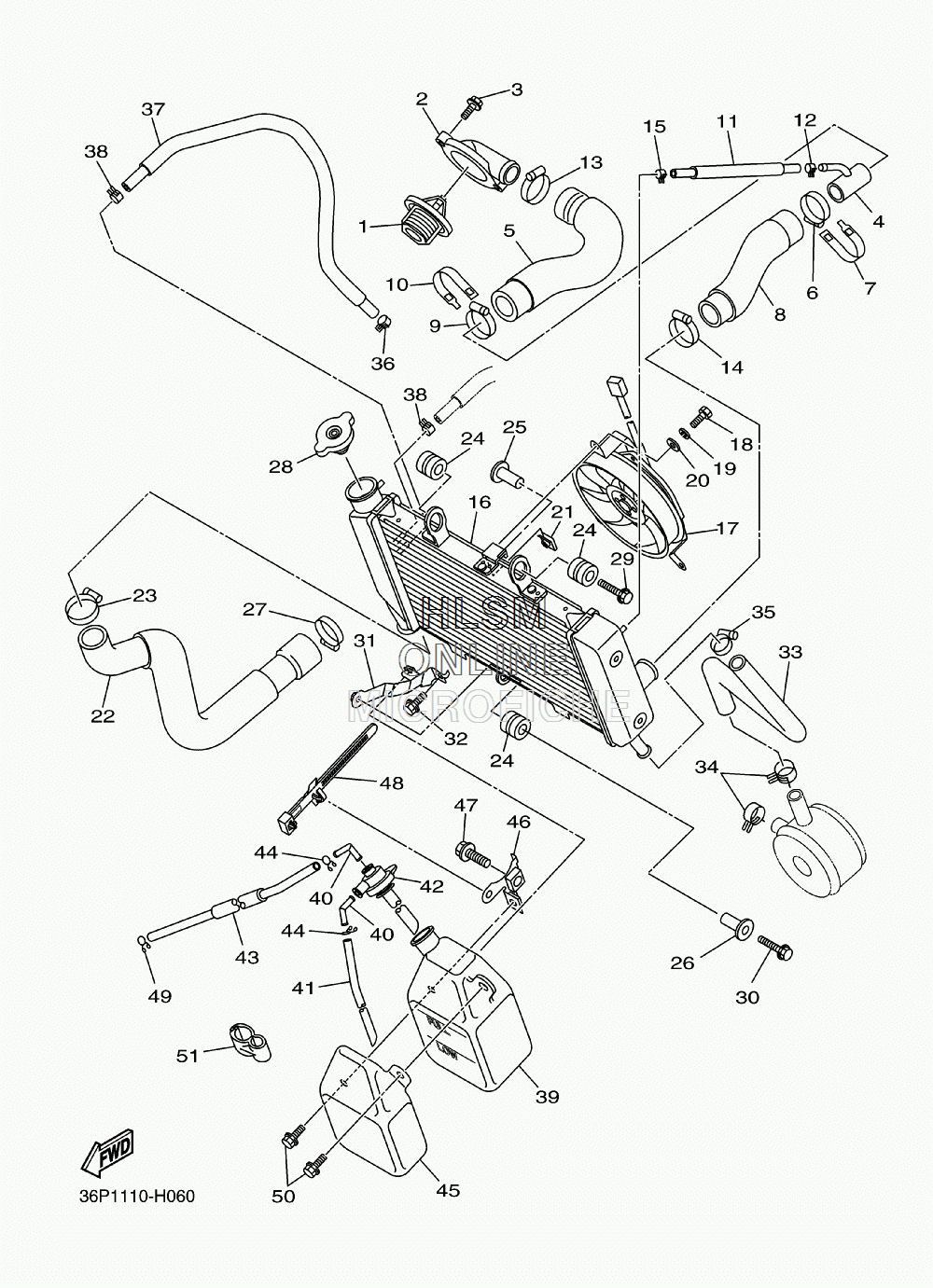

RADIATOR для Yamaha FZ6R (BLACK METALLIC AND BLUE METALLIC) - 2009 года выпуска
-
№АртикулНазвание
-
15SL-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
25VX-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
390105-06164-00 BOLT, FLANGEBOLT, FLANGE
-
420S-12582-00-00 JOINT, HOSE 2JOINT, HOSE 2
-
520S-12578-00-00 HOSE 3HOSE 3
-
690450-32003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
720S-1246E-00-00 COVER 2COVER 2
-
820S-12551-00-00 HOSE 7HOSE 7
-
990450-32003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1020S-1246E-00-00 COVER 2COVER 2
-
1190445-12012-00 HOSEHOSE
-
1290467-11090-00 CLIPCLIP
-
1390450-32006-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1490450-32003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1590467-11090-00 CLIPCLIP
-
1620S-12461-01-00 RADIATOR COMPRADIATOR COMP
-
1720S-12405-00-00 BLOWER ASSYBLOWER ASSY
-
1897307-06012-00 BOLTBOLT
-
1992907-06100-00 WASHER, SPRINGWASHER, SPRING
-
2092907-06600-00 WASHER, PLATEWASHER, PLATE
-
211AA-12535-00-00 PLATEPLATE
-
2220S-12579-00-00 HOSE 4HOSE 4
-
2390450-32003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2490480-15363-00 GROMMETGROMMET
-
2590387-0614M-00 COLLARCOLLAR
-
2690387-0614M-00 COLLARCOLLAR
-
2790450-32006-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2822W-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
2995802-06025-00 BOLT, FLANGEBOLT, FLANGE
-
3095802-06030-00 BOLT, FLANGEBOLT, FLANGE
-
3120S-1244E-00-00 BRACKET 1BRACKET 1
-
3295822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3320S-12589-00-00 HOSE 6HOSE 6
-
3490467-200A0-00 CLIPCLIP
-
3590450-22017-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3690467-11090-00 CLIPCLIP
-
3790445-12009-00 HOSEHOSE
-
3890467-11090-00 CLIPCLIP
-
394P5-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
4026H-21828-00-00 ELBOWELBOW
-
4190445-081F2-00 HOSE (L200)HOSE (L200)
-
423P6-21875-00-00 CAPCAP
-
4390445-08025-00 HOSEHOSE
-
4490467-08075-00 CLIPCLIP
-
454P5-2172W-00-00 COVERCOVER
-
464P5-21873-00-00 BRACKET, RECOVERY TANKBRACKET, RECOVERY TANK
-
4795822-10020-00 BOLT, FLANGEBOLT, FLANGE
-
4890464-07012-00 CLAMPCLAMP
-
4990467-08075-00 CLIPCLIP
-
5090105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
5190464-10233-00 CLAMPCLAMP
