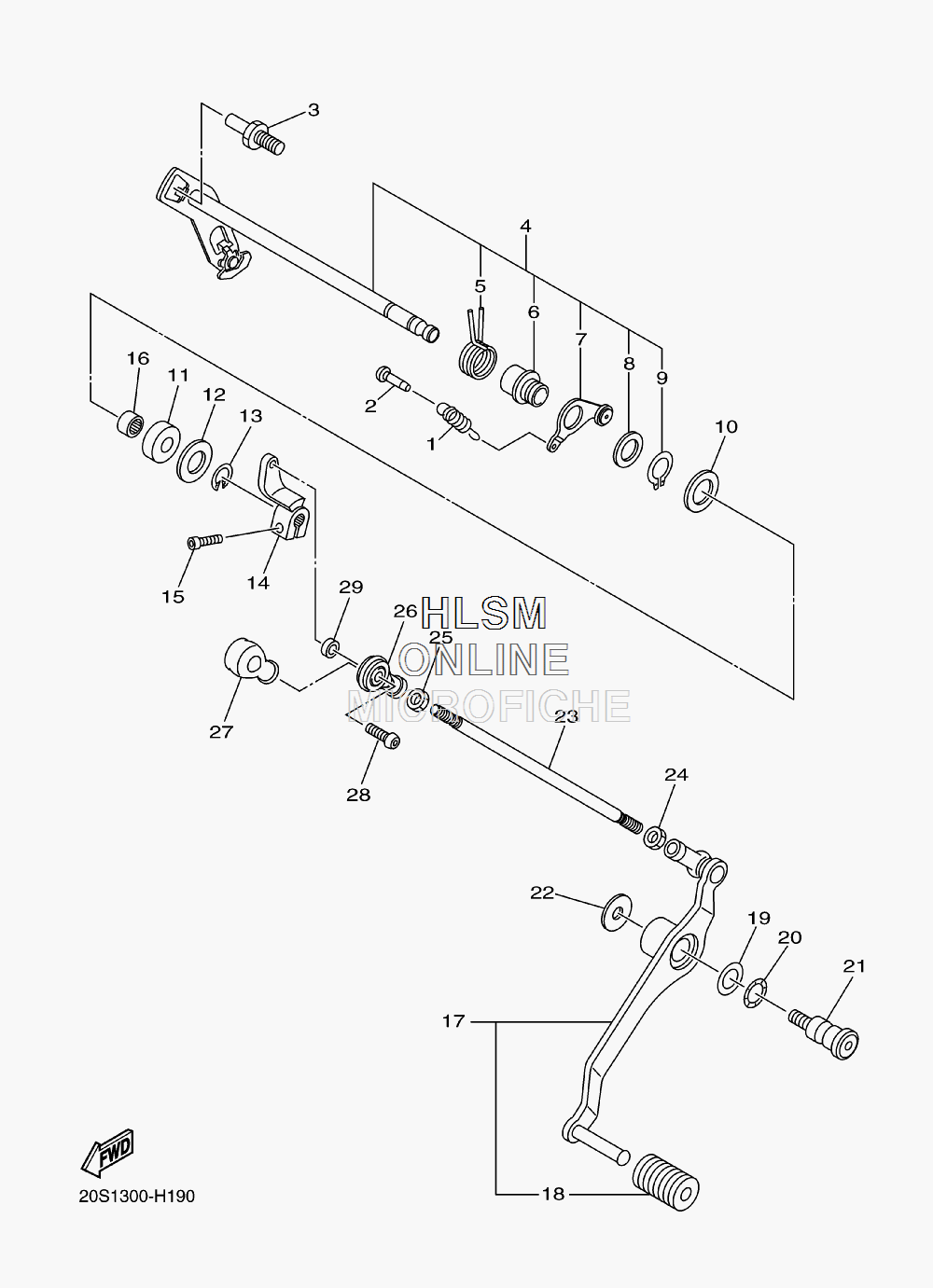

SHIFT SHAFT для Yamaha FZ6R (BLACK METALLIC AND BLUE METALLIC) - 2009 года выпуска
-
№АртикулНазвание
-
190506-15005-00 SPRING, TENSIONSPRING, TENSION
-
2132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
31D7-18127-00-00 STOPPER, SCREWSTOPPER, SCREW
-
420S-18101-00-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
590508-32020-00 ...SPRING, TORSION...SPRING, TORSION
-
62C0-18175-00-00 ...SPACER...SPACER
-
720S-18140-00-00 ...STOPPER LEVER ASSY...STOPPER LEVER ASSY
-
890201-177G4-00 ...WASHER, PLATE...WASHER, PLATE
-
999009-17400-00 ...CIRCLIP...CIRCLIP
-
1090201-127E1-00 WASHER, PLATEWASHER, PLATE
-
1193102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
1290201-12575-00 WASHER, PLATEWASHER, PLATE
-
1399001-10600-00 CIRCLIPCIRCLIP
-
1420S-18112-00-00 ARM, SHIFTARM, SHIFT
-
1591312-06020-00 BOLTBOLT
-
1693317-11295-00 BEARINGBEARING
-
1720S-18110-00-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
185EB-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
1990201-12051-00 WASHER, PLATEWASHER, PLATE
-
2090206-12005-00 WASHER, WAVEWASHER, WAVE
-
214BP-27434-01-00 BOLTBOLT
-
2290201-08053-00 WASHER, PLATEWASHER, PLATE
-
233D8-18115-00-00 ROD, SHIFTROD, SHIFT
-
2490170-06026-00 NUTNUT
-
2595314-06700-00 NUTNUT
-
265VX-18116-00-00 JOINT, ROD 1JOINT, ROD 1
-
275VX-18154-00-00 COVER, DUSTCOVER, DUST
-
2890111-06098-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2990387-06372-00 COLLARCOLLAR
