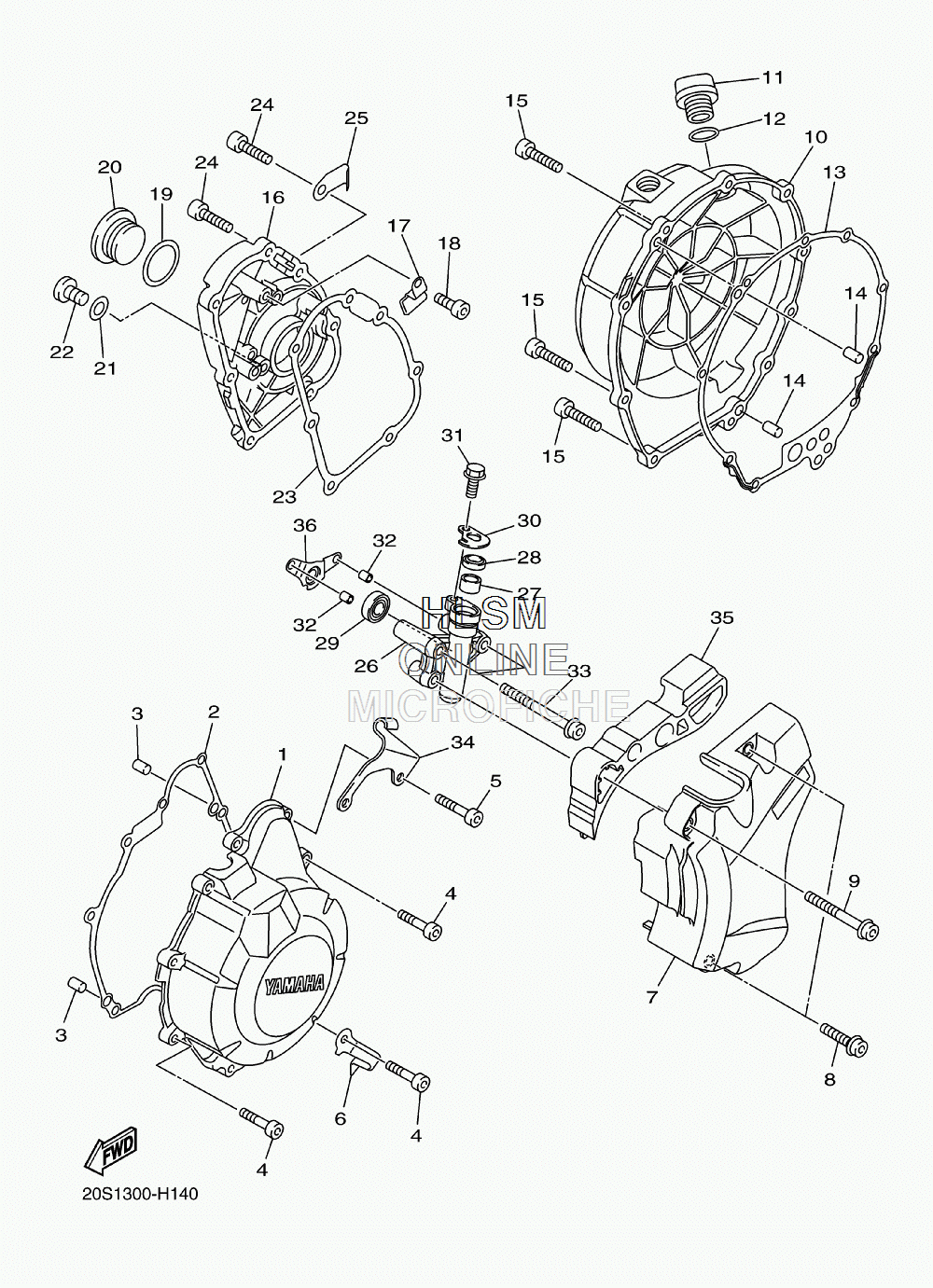

CRANKCASE COVER для Yamaha FZ6R (BLUISH WHITE AND REDDISH YELLOW) - 2009 года выпуска
-
№АртикулНазвание
-
136P-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
25VX-15451-01-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
399530-08012-00 PIN, DOWELPIN, DOWEL
-
490110-06295-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
591314-06030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
690465-08045-00 CLAMPCLAMP
-
720S-15418-00-00 COVER, CHAIN CASECOVER, CHAIN CASE
-
890110-06329-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
990110-06330-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1036P-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
113F9-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
1293210-27194-00 O-RINGO-RING
-
1320S-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
1493608-17263-00 PIN, DOWELPIN, DOWEL
-
1590110-06295-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1636P-15416-00-00 COVER, OIL PUMPCOVER, OIL PUMP
-
1790465-14011-00 CLAMPCLAMP
-
1890110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1993210-32172-00 O-RINGO-RING
-
2090340-32004-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
2190430-08143-00 GASKETGASKET
-
2292014-08014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2320S-15456-00-00 GASKET, OIL PUMP COVER 1GASKET, OIL PUMP COVER 1
-
2490110-06274-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2590465-10042-00 CLAMPCLAMP
-
2620S-15425-00-00 COVER, GENERATOR 2COVER, GENERATOR 2
-
2793317-11295-00 BEARINGBEARING
-
2893102-12224-00 OIL SEALOIL SEAL
-
2993109-08061-00 OIL SEALOIL SEAL
-
3020S-16384-00-00 PLATE, SEATPLATE, SEAT
-
3195022-06014-00 BOLT, FLANGEBOLT, FLANGE
-
3299590-08012-00 PIN, DOWELPIN, DOWEL
-
3390110-06307-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3420S-15441-00-00 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
-
3520S-15377-00-00 GUIDE, INLETGUIDE, INLET
-
3620S-15185-00-00 PROTECTER, OIL SEALPROTECTER, OIL SEAL
