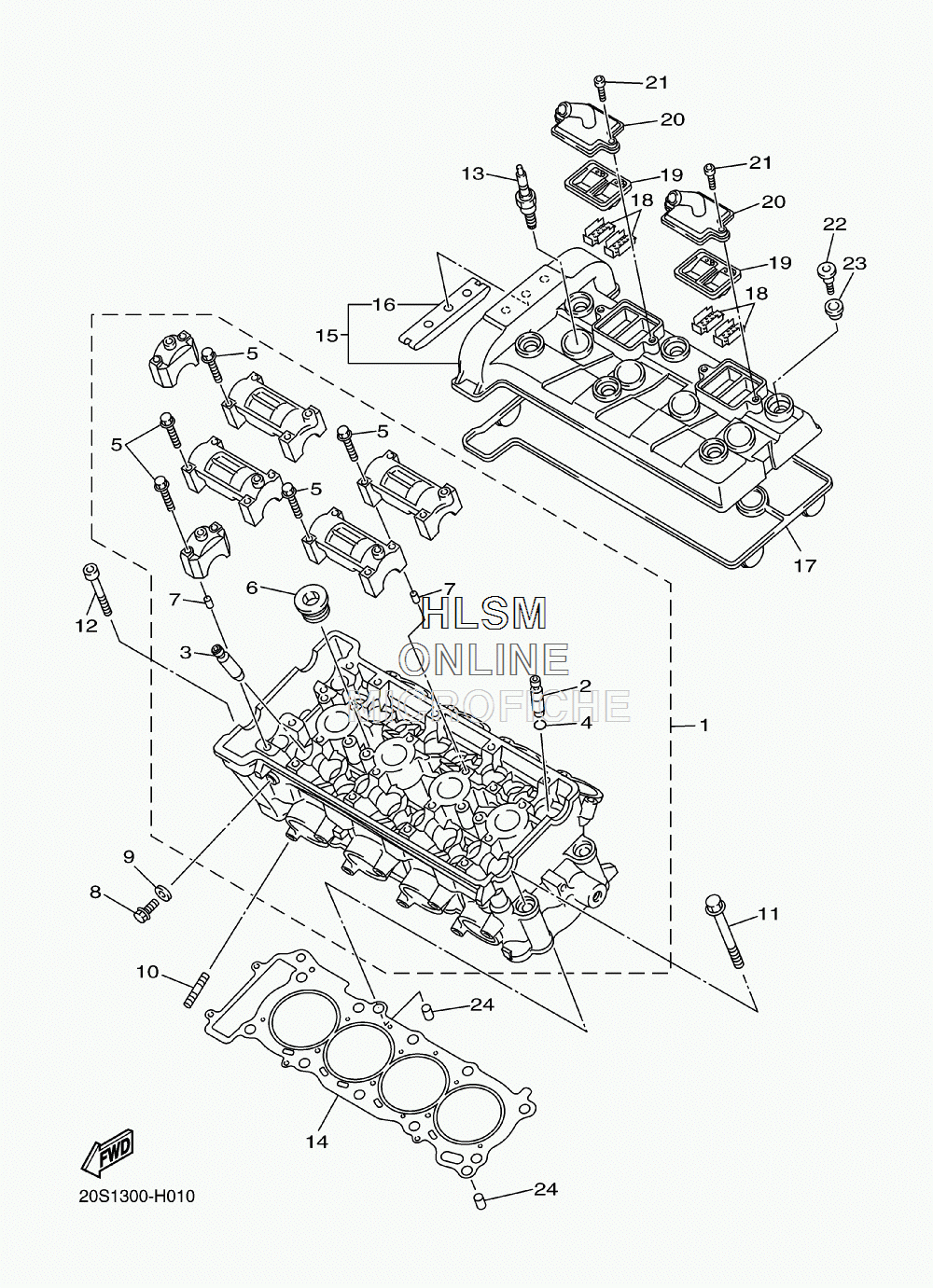

CYLINDER HEAD для Yamaha FZ6R (BLUISH WHITE AND REDDISH YELLOW) - 2009 года выпуска
-
№АртикулНазвание
-
120S-11101-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
25EB-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
320S-11134-10-00 ...GUIDE, VALVE 2...GUIDE, VALVE 2
-
493440-10153-00 ...CIRCLIP...CIRCLIP
-
590105-06027-00 ...BOLT, FLANGE...BOLT, FLANGE
-
690340-20090-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
791808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
895022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
990430-08119-00 GASKETGASKET
-
1095612-08625-00 BOLT, STUDBOLT, STUD
-
1190119-10003-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1291312-06060-00 BOLTBOLT
-
13NGK-CR9E0-00-00-00 PLUG, SPARK (NGK R CR9E)PLUG, SPARK (NGK R CR9E)
-
1420S-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
151B3-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
165BE-12241-00-00 ...GUIDE, STOPPER 2...GUIDE, STOPPER 2
-
1720S-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
185SL-1482K-00-00 PLATEPLATE
-
195SL-14890-00-00 REED VALVE ASSYREED VALVE ASSY
-
205SL-14899-00-00 CAP, CASECAP, CASE
-
2191312-06020-00 BOLTBOLT
-
2290109-066F0-00 BOLTBOLT
-
235VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
2499530-10114-00 PIN, DOWELPIN, DOWEL
