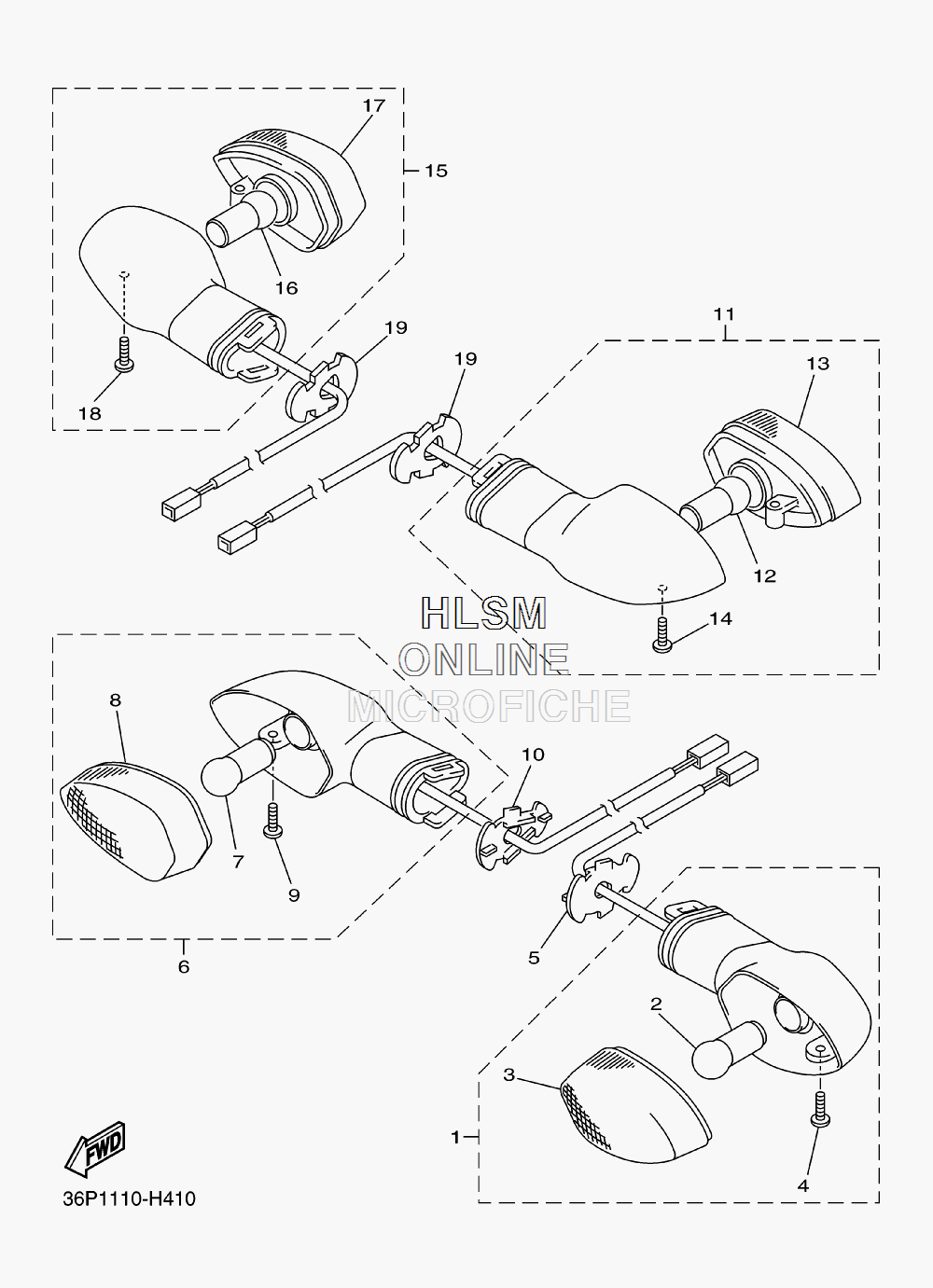

FLASHER LIGHT для Yamaha FZ6R (BLUISH WHITE AND REDDISH YELLOW) - 2009 года выпуска
-
№АртикулНазвание
-
12C0-83310-10-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
21A2-84714-41-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
32C0-8333A-10-00 ...LENS COMP 1...LENS COMP 1
-
497702-40010-00 ...SCREW, TAPPING...SCREW, TAPPING
-
52C0-83318-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
62C0-83320-10-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
71A2-84714-41-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
82C0-8334A-10-00 ...LENS COMP 2...LENS COMP 2
-
997702-40010-00 ...SCREW, TAPPING...SCREW, TAPPING
-
102C0-83318-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
112C0-83330-10-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
12306-83311-40-00 ...BULB, FLASHER (12V-21W)...BULB, FLASHER (12V-21W)
-
132C0-8334A-10-00 ...LENS COMP 2...LENS COMP 2
-
1497702-40010-00 ...SCREW, TAPPING...SCREW, TAPPING
-
152C0-83340-10-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
16306-83311-40-00 ...BULB, FLASHER (12V-21W)...BULB, FLASHER (12V-21W)
-
172C0-8333A-10-00 ...LENS COMP 1...LENS COMP 1
-
1897702-40010-00 ...SCREW, TAPPING...SCREW, TAPPING
-
193D7-83318-10-00 STAY, FLASHER 1STAY, FLASHER 1
