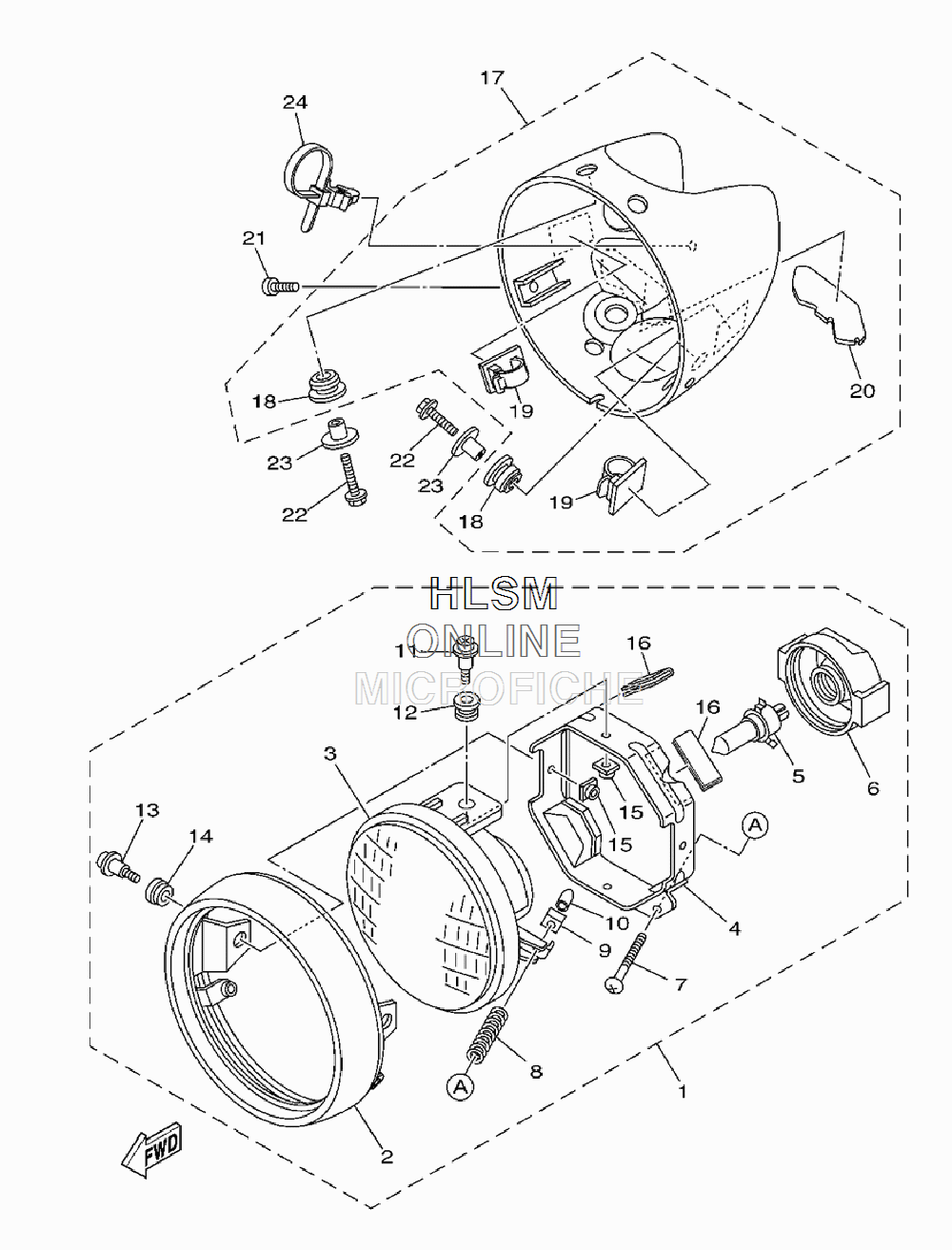

HEADLIGHT для Yamaha ROAD STAR MIDNIGHT WARRIOR - 2009 года выпуска
-
№АртикулНазвание
-
15PX-84310-01-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
25PX-84315-00-00 RIM, HEADLIGHTRIM, HEADLIGHT
-
35PX-84320-00-00 LENS ASSYLENS ASSY
-
45PX-84318-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
58G9-84314-00-00 BULB (12V-60/55W) (H4) HALOGENBULB (12V-60/55W) (H4) HALOGEN
-
65PX-84397-00-00 COVER, SOCKETCOVER, SOCKET
-
75PX-84331-00-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
85PX-84332-00-00 SPRING, SCREWSPRING, SCREW
-
95PX-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
105PX-84385-00-00 CAP, 1CAP, 1
-
115PX-84325-00-00 SCREW, RIM FITTINGSCREW, RIM FITTING
-
125PX-84354-00-00 GROMMETGROMMET
-
135PX-84125-00-00 SCREW, RIM FITTINGSCREW, RIM FITTING
-
145PX-84352-00-00 GROMMETGROMMET
-
155PX-84317-00-00 NUTNUT
-
165PX-21669-00-00 SEALSEAL
-
175PX-84330-10-00 BODY ASSYBODY ASSY
-
185PX-84366-00-00 DAMPER, HEADLIGHT 1DAMPER, HEADLIGHT 1
-
1990464-13185-00 CLAMPCLAMP
-
205PX-8413G-00-00 PLATE, GUIDEPLATE, GUIDE
-
2198980-05014-00 SCREW, BINDSCREW, BIND
-
2295027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2390387-06049-00 COLLARCOLLAR
-
2490464-12089-00 CLAMPCLAMP
