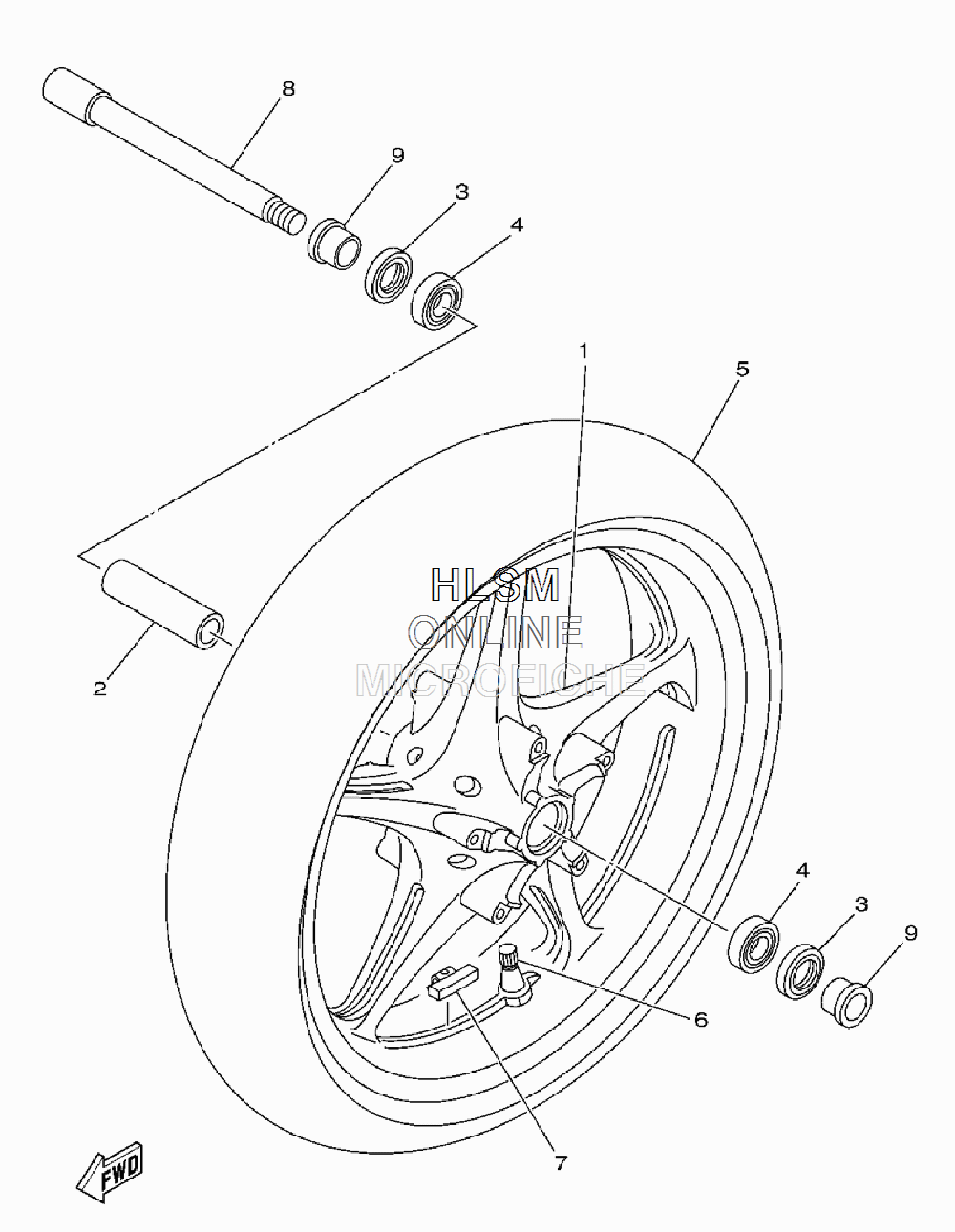

WHEEL - FRONT для Yamaha ROAD STAR MIDNIGHT WARRIOR - 2009 года выпуска
-
№АртикулНазвание
-
15PX-25168-30-0X CAST WHEEL, FRONT YB/HTR FOR YBCAST WHEEL, FRONT YB/HTR FOR YB
-
24XV-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
393106-28043-00 OIL SEALOIL SEAL
-
493306-00420-00 BEARINGBEARING
-
594112-18012-00 TIRE (120/70 ZR18M/C59W D220F) DUNLOPTIRE (120/70 ZR18M/C59W D220F) DUNLOP
-
594112-18025-00 TIRE (120/70ZR18M/C58W BT020F) BSTIRE (120/70ZR18M/C58W BT020F) BS
-
693900-00030-00 VALVE, RIM (TR412)VALVE, RIM (TR412)
-
75MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
75MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
75MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
84XV-25181-10-00 AXLE, WHEELAXLE, WHEEL
-
990387-2200T-00 COLLARCOLLAR
