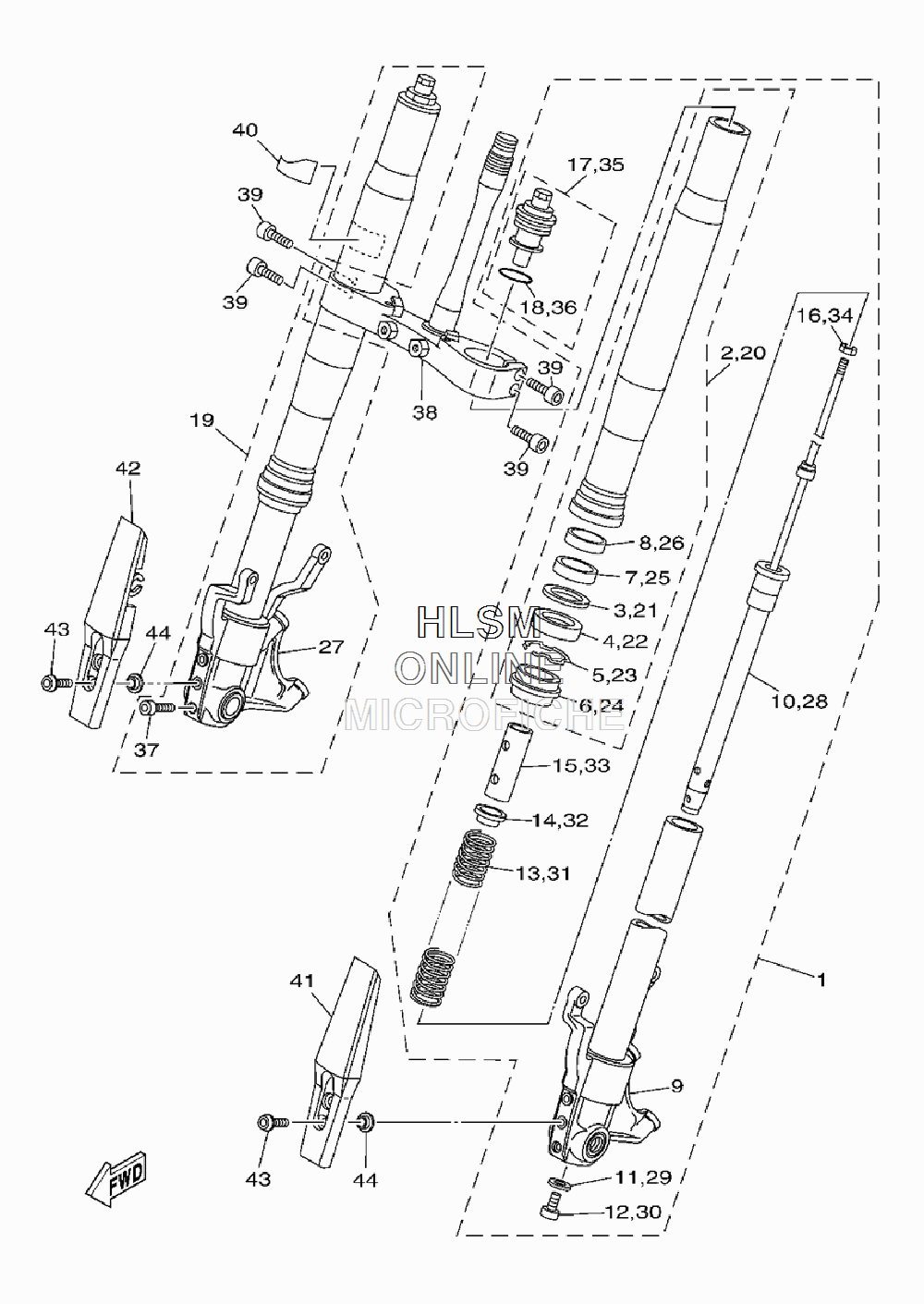

SUSPENSION - FRONT FORK для Yamaha ROAD STAR MIDNIGHT WARRIOR - 2009 года выпуска
-
№АртикулНазвание
-
15PX-23102-30-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
25PX-23136-20-00 TUBE, OUTER (RIGHT)TUBE, OUTER (RIGHT)
-
336Y-23146-10-00 WASHER, OIL SEALWASHER, OIL SEAL
-
44EB-23145-01-00 OIL SEALOIL SEAL
-
526H-23156-00-00 RING, SNAPRING, SNAP
-
64EB-23144-00-00 SEAL, DUSTSEAL, DUST
-
75PX-23125-00-00 METAL, SLIDE 1METAL, SLIDE 1
-
84XV-23135-00-00 METAL, SLIDE 2METAL, SLIDE 2
-
95PX-23110-20-00 INNER TUBE COMP. 1INNER TUBE COMP. 1
-
105PX-23170-20-00 CYLINDER COMP., FRONT FORKCYLINDER COMP., FRONT FORK
-
112K8-23158-L0-00 GASKETGASKET
-
123R4-23181-L0-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
135PX-23141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
144XV-23142-00-00 SEAT, SPRING UPPERSEAT, SPRING UPPER
-
154XV-23118-00-00 SPACERSPACER
-
163LC-23357-00-00 NUTNUT
-
175PX-23111-00-00 BOLT, CAPBOLT, CAP
-
183XJ-23147-L0-00 O-RINGO-RING
-
195PX-23103-30-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
205PX-23136-20-00 TUBE, OUTER (RIGHT)TUBE, OUTER (RIGHT)
-
2136Y-23146-10-00 WASHER, OIL SEALWASHER, OIL SEAL
-
224EB-23145-01-00 OIL SEALOIL SEAL
-
2326H-23156-00-00 RING, SNAPRING, SNAP
-
244EB-23144-00-00 SEAL, DUSTSEAL, DUST
-
255PX-23125-00-00 METAL, SLIDE 1METAL, SLIDE 1
-
264XV-23135-00-00 METAL, SLIDE 2METAL, SLIDE 2
-
275PX-23120-20-00 INNER TUBE COMP.2INNER TUBE COMP.2
-
285PX-23170-20-00 CYLINDER COMP., FRONT FORKCYLINDER COMP., FRONT FORK
-
292K8-23158-L0-00 GASKETGASKET
-
303R4-23181-L0-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
315PX-23141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
324XV-23142-00-00 SEAT, SPRING UPPERSEAT, SPRING UPPER
-
334XV-23118-00-00 SPACERSPACER
-
343LC-23357-00-00 NUTNUT
-
355PX-23111-00-00 BOLT, CAPBOLT, CAP
-
363XJ-23147-L0-00 O-RINGO-RING
-
3791314-08040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
385PX-23340-10-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
3991314-08030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
405PX-23844-00-00 SEALSEAL
-
415PX-23123-00-33 COVER, UNDER 1 FOR YBCOVER, UNDER 1 FOR YB
-
425PX-23133-00-33 COVER, UNDER 2 FOR YBCOVER, UNDER 2 FOR YB
-
4390149-06298-00 SCREWSCREW
-
4490387-06050-00 COLLARCOLLAR
