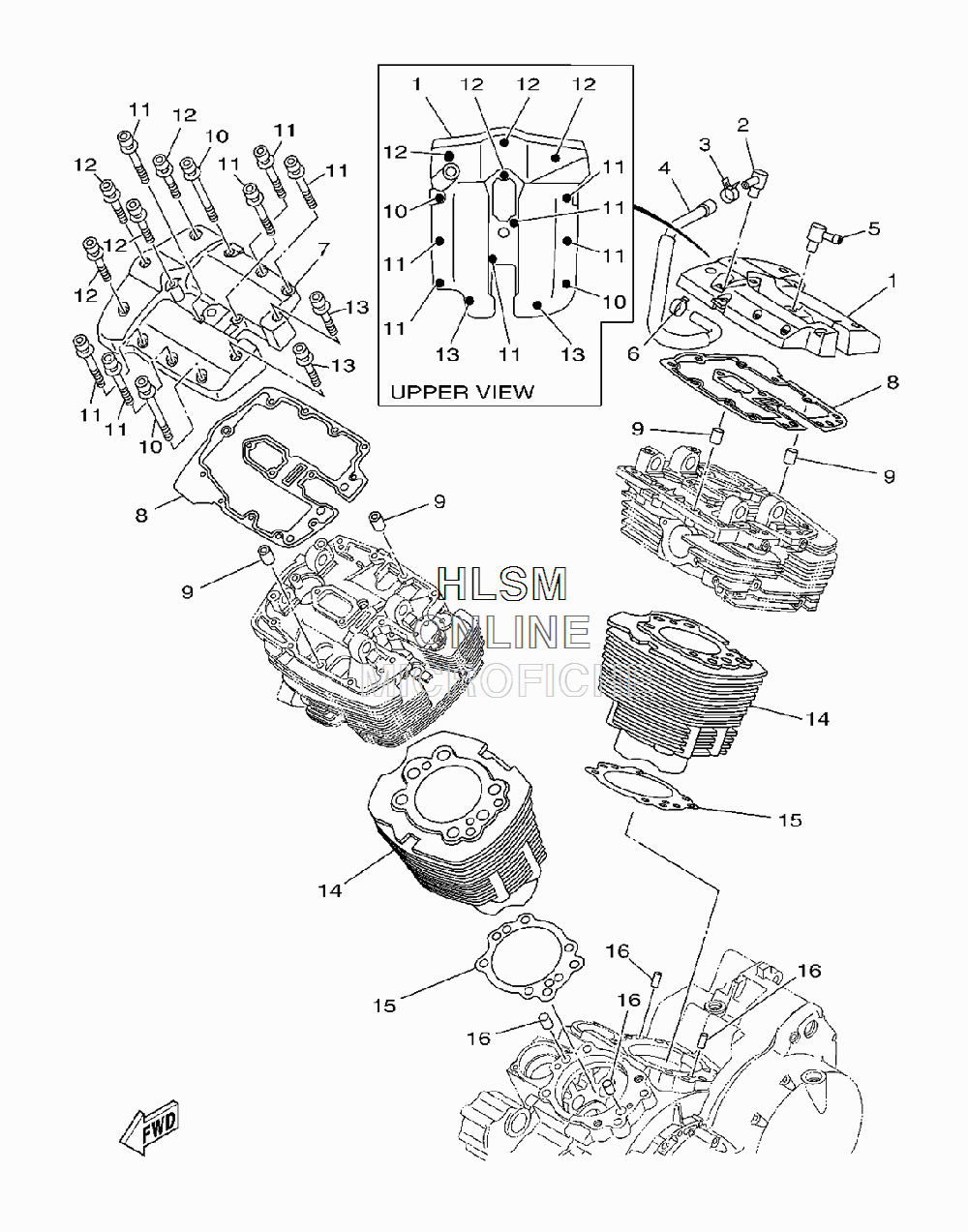

CYLINDER для Yamaha ROAD STAR S - 2009 года выпуска
-
№АртикулНазвание
-
15VN-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
24GL-15371-01-00 BREATHERBREATHER
-
390467-12053-00 CLIP,SCISSORCLIP,SCISSOR
-
45VN-11166-10-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
54WM-11126-00-00 PIPE, BREATHER 3PIPE, BREATHER 3
-
690467-14057-00 CLIPCLIP
-
75VN-11192-00-00 COVER, CYLINDER HEAD 2COVER, CYLINDER HEAD 2
-
85VN-11193-01-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
991808-16023-00 PIN, DOWELPIN, DOWEL
-
1090110-06298-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190110-06312-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1290110-06299-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1390110-06311-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
145VN-11311-00-00 CYLINDER 1CYLINDER 1
-
154WM-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
1690387-087A5-00 COLLARCOLLAR
