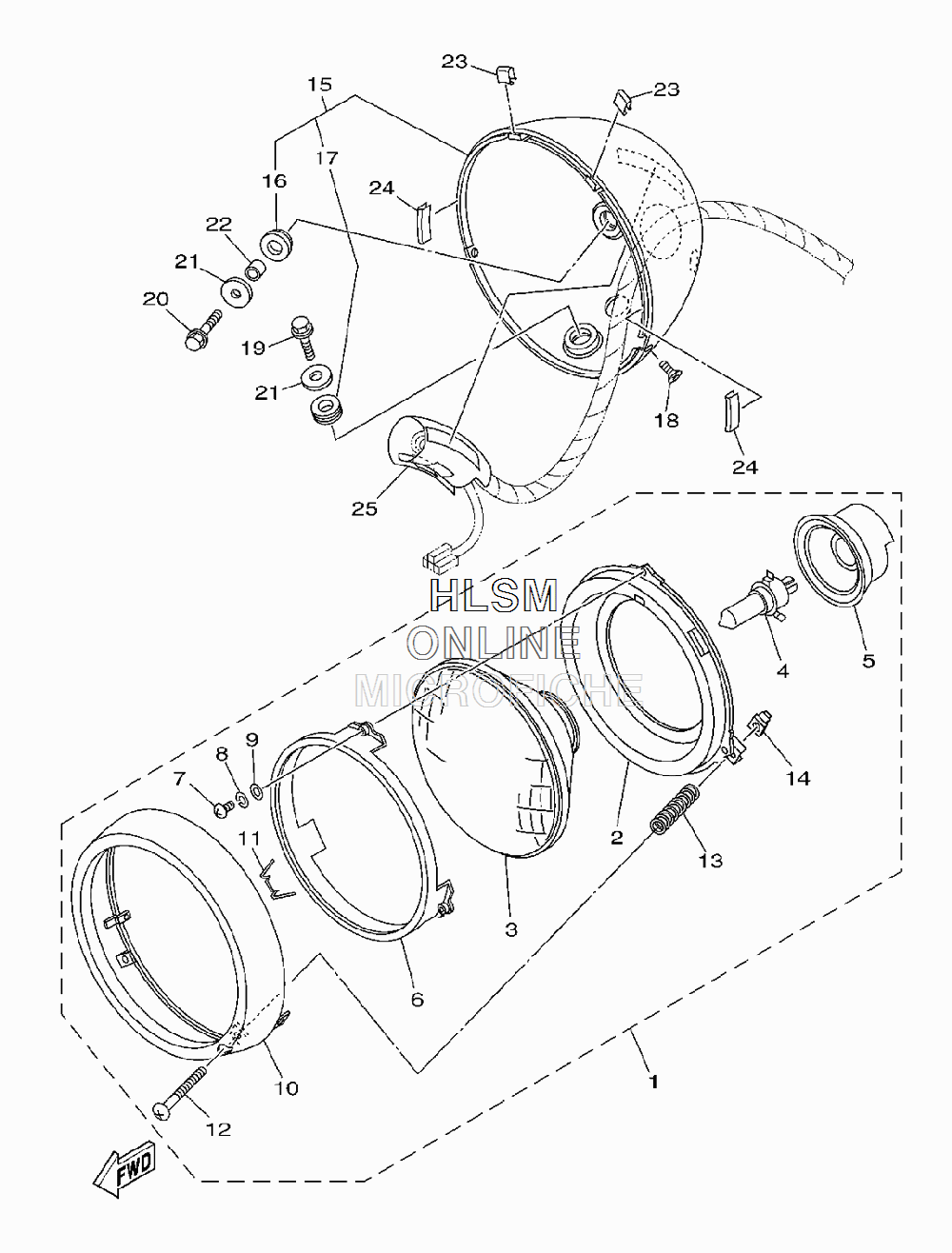

HEADLIGHT для Yamaha ROAD STAR S - 2009 года выпуска
-
№АртикулНазвание
-
15VN-84310-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
25VN-84394-00-00 RING, MOUNTINGRING, MOUNTING
-
34NK-84320-00-00 LENS ASSYLENS ASSY
-
42F9-84314-00-00 BULB (12V-60/55W) (H4) HALOGENBULB (12V-60/55W) (H4) HALOGEN
-
53SX-84397-00-00 COVER, SOCKETCOVER, SOCKET
-
62F9-84395-00-00 RING, RETAININGRING, RETAINING
-
798502-04008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
892902-04100-00 WASHER, SPRINGWASHER, SPRING
-
95VN-84344-00-00 WASHER, PLAINWASHER, PLAIN
-
105VN-84315-00-00 RIM, HEADLIGHTRIM, HEADLIGHT
-
11290-84124-21-00 SPRING, SETSPRING, SET
-
12341-84331-60-00 SCREW,PAN HEADSCREW,PAN HEAD
-
135G2-84332-60-00 SPRING, SCREWSPRING, SCREW
-
14198-84334-60-00 NUT, ADJUSTINGNUT, ADJUSTING
-
154WM-84330-00-00 BODY ASSYBODY ASSY
-
1642X-84366-00-00 DAMPER, HEADLIGHT 1DAMPER, HEADLIGHT 1
-
174WM-84366-00-00 DAMPER, HEADLIGHT 1DAMPER, HEADLIGHT 1
-
1890152-05005-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
1990105-06639-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2095027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2190201-060A3-00 WASHER, PLATEWASHER, PLATE
-
2290387-0610J-00 COLLARCOLLAR
-
235JW-23844-00-00 SEALSEAL
-
245VN-23844-00-00 SEALSEAL
-
253D8-8411T-00-00 HOLDER, 1HOLDER, 1
