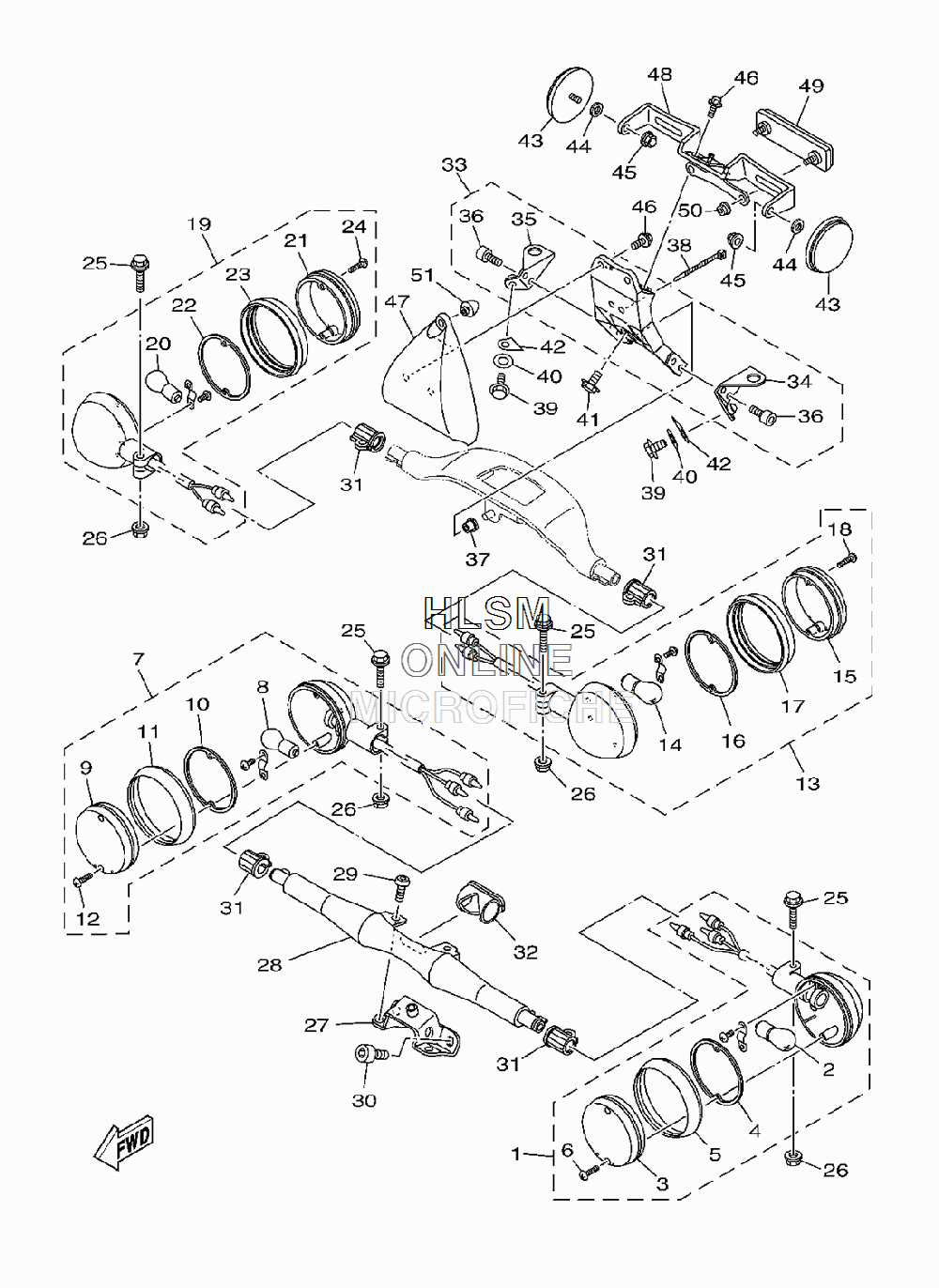

FLASHER LIGHT для Yamaha ROAD STAR S - 2009 года выпуска
-
№АртикулНазвание
-
15VN-83310-01-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
25VN-83311-00-00 BULB, FLASHER (12V-23/8W)BULB, FLASHER (12V-23/8W)
-
35VN-83312-10-00 LENS, FLASHERLENS, FLASHER
-
41D6-83313-00-00 GASKET, FLASHER LENSGASKET, FLASHER LENS
-
51D6-83363-00-00 LENS, RIMLENS, RIM
-
657M-83358-00-00 SCREW, SPECIALSCREW, SPECIAL
-
75VN-83320-01-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
85VN-83311-00-00 BULB, FLASHER (12V-23/8W)BULB, FLASHER (12V-23/8W)
-
95VN-83312-20-00 LENS, FLASHERLENS, FLASHER
-
101D6-83313-00-00 GASKET, FLASHER LENSGASKET, FLASHER LENS
-
111D6-83363-10-00 LENS, RIMLENS, RIM
-
1257M-83358-00-00 SCREW, SPECIALSCREW, SPECIAL
-
135VN-83330-01-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
145VN-83311-10-00 BULB, FLASHER (12V-21W)BULB, FLASHER (12V-21W)
-
151D6-83312-20-00 LENS, FLASHERLENS, FLASHER
-
161D6-83313-00-00 GASKET, FLASHER LENSGASKET, FLASHER LENS
-
171D6-83363-10-00 LENS, RIMLENS, RIM
-
1857M-83358-00-00 SCREW, SPECIALSCREW, SPECIAL
-
195VN-83340-01-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
205VN-83311-10-00 BULB, FLASHER (12V-21W)BULB, FLASHER (12V-21W)
-
211D6-83312-10-00 LENS, FLASHERLENS, FLASHER
-
221D6-83313-00-00 GASKET, FLASHER LENSGASKET, FLASHER LENS
-
231D6-83363-00-00 LENS, RIMLENS, RIM
-
2457M-83358-00-00 SCREW, SPECIALSCREW, SPECIAL
-
2595024-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2690179-06017-00 NUTNUT
-
275VN-2317V-00-00 STAY 8STAY 8
-
285VN-83369-00-00 STAY, FLASHER 2STAY, FLASHER 2
-
2992014-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3092014-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
315VN-83321-00-00 DAMPER, FLASHER 1DAMPER, FLASHER 1
-
324NK-83345-00-00 PLUG, BLINDPLUG, BLIND
-
335VN-84550-00-00 LICENCE BRACKET ASSYLICENCE BRACKET ASSY
-
345VN-8431R-00-00 STAY 1STAY 1
-
355VN-8431T-00-00 STAY 2STAY 2
-
3691317-06012-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3790480-10010-00 GROMMETGROMMET
-
381UA-82591-00-00 BANDBAND
-
3990105-06048-00 BOLT, FLANGEBOLT, FLANGE
-
4090201-064J1-00 WASHER, PLATEWASHER, PLATE
-
4190105-06020-00 BOLT, FLANGEBOLT, FLANGE
-
425VN-2173M-00-00 SEAL 3SEAL 3
-
43449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
4490201-05029-00 WASHER, PLATEWASHER, PLATE
-
4590176-05001-00 NUT, CROWNNUT, CROWN
-
4695027-06016-00 BOLT, FLANGEBOLT, FLANGE
-
475VN-84703-00-00 BRACKETBRACKET
-
485VN-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
491FK-85130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
5095707-05500-00 NUT, FLANGENUT, FLANGE
-
5142U-21639-00-00 DAMPER 2DAMPER 2
