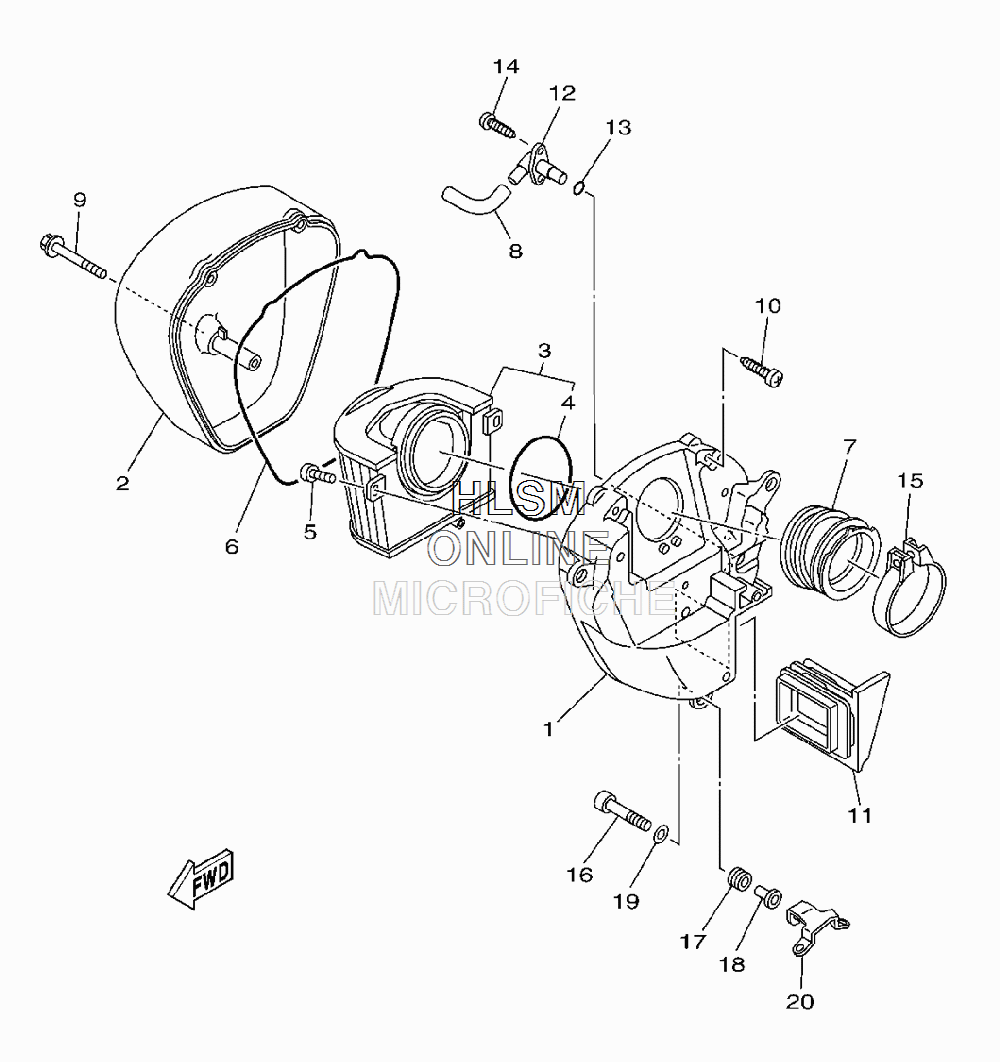

AIR CLEANER W/ INTAKE для Yamaha ROAD STAR - 2009 года выпуска
-
№АртикулНазвание
-
15VN-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
24WM-14421-00-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
35VN-14451-10-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
493210-77040-00 O-RINGO-RING
-
598904-06014-00 SCREW, BINDSCREW, BIND
-
64WM-14452-00-00 SEALSEAL
-
75VN-14453-20-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
85VN-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
990149-06331-00 SCREWSCREW
-
1097707-60540-00 SCREW, TAPPINGSCREW, TAPPING
-
115VN-14437-10-00 DUCTDUCT
-
125VN-14485-00-00 PIPE, JOINTPIPE, JOINT
-
1393210-13361-00 O-RINGO-RING
-
1497707-50125-00 SCREW, TRUSSSCREW, TRUSS
-
1590450-67001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1691314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1790480-14023-00 GROMMETGROMMET
-
1890387-07391-00 COLLARCOLLAR
-
1990201-06062-00 WASHER, PLATEWASHER, PLATE
-
205VN-14498-10-00 STAY 1STAY 1
